Connecting and placing the
temperature sensors

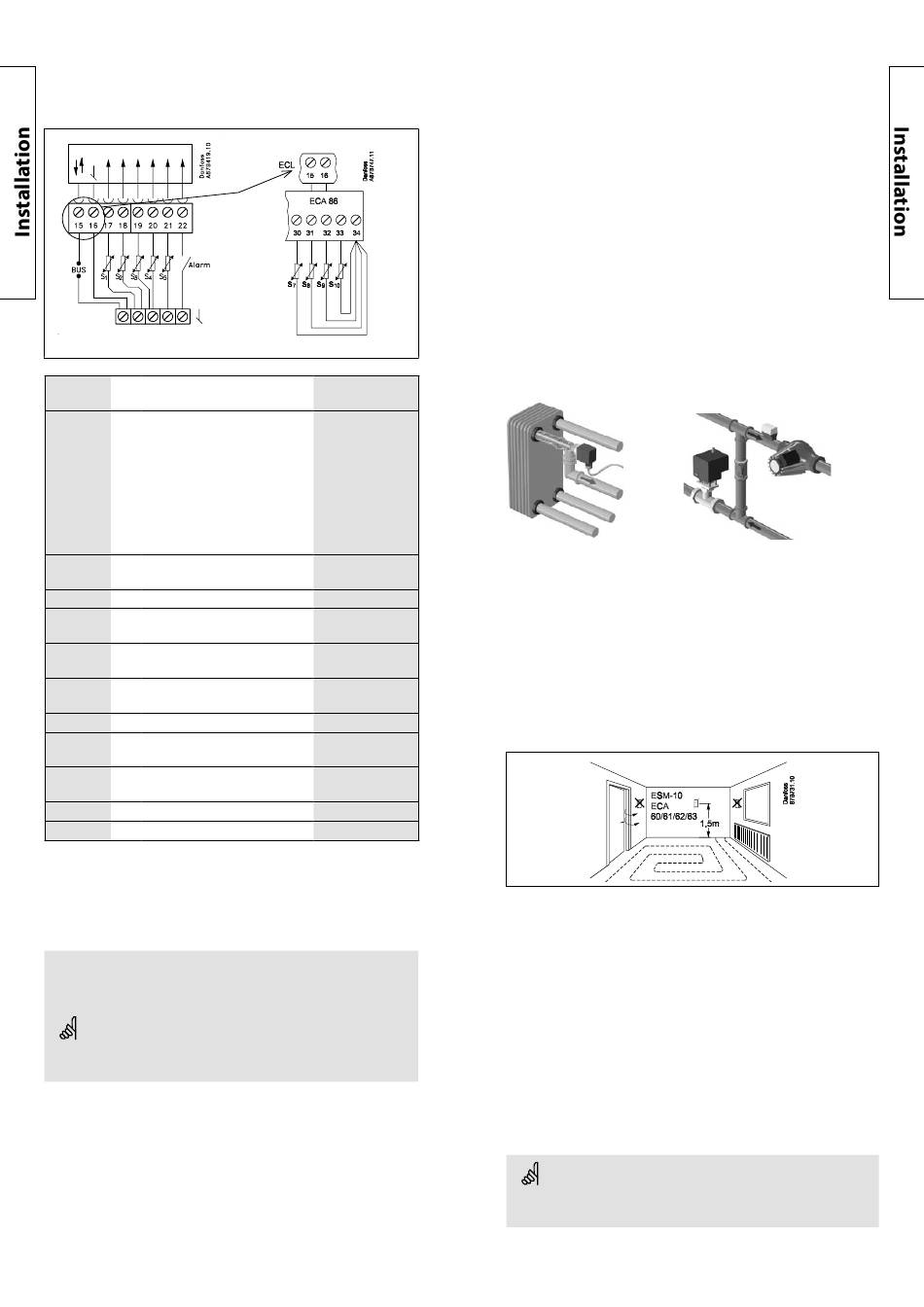

Connecting the temperature sensors and the bus
Terminal Description
15 and 16 System device bus*,
connections for room panel
(incl. humidity sensor) /
remote control (incl.
humidity sensor)
Relay module or
relay module with
temperature sensor input
17 and 16 S1 Outdoor temperature
sensor
18 and 16 S2 DHW temperature sensor
19 and 16 S3 Flow temperature sensor,
circuit, mixing circuit
20 and 16 S4 Return temperature sensor ESM-11 / ESMC /
21 and 16 S5 Flow temperature sensor,
heat pump circuit
22 and 16 S6 Alarm input
30 and 34 S7 DHW tank temperature
sensor
31 and 34 S8 Solar panel temperature
sensor
32 and 34 S9 Temperature readout
33 and 34 S10 Temperature readout
* The system device bus / room panel / remote control is only active
when the outdoor temperature sensor is connected.
Establish the jumper from 16 to common terminal.
Wire cross section for sensor connections:
Min. 0.4 mm
Total cable length: Max. 125 m (all sensors incl. system device
bus)
Cable lengths of more than 125 m may cause noise sensibility
(EMC).
Type (recomm.)
ECA 60 / (62)
ECA 61 / (63)
ECA 80
ECA 86
ESMT
ESMU / ESMB-12
ESM-11 / ESMC /
ESMU
ESMU
ESM-11 / ESMC /
ESMU
Alarm module
ESMU / ESMB-12
AKS 21
2
It is important that the sensors are mounted in the correct
position in your system.
The temperature sensor mentioned below are sensors used
for the ECL Comfort 200 and 300 series which not all will be
needed for your application!
Outdoor temperature sensor (ESMT)
The outdoor sensor should be mounted on that side of the
building where it is less likely to be exposed to direct
sunshine. It should not be placed close to doors, windows or
air outlets.
Flow temperature sensor (ESMU, ESM-11 or ESMC)
Place the sensor max. 15 cm from the mixing point. In
systems with heat exchanger, Danfoss recommends that the
ESMU type to be inserted into the exchanger flow outlet.
Make sure that the surface of the pipe is clean and even
where the sensor is mounted.
Return temperature sensor (ESMU, ESM-11 or ESMC)
The return sensor should always be placed in / on a pipe with
return water flow.
Room temperature sensor (ESM-10, ECA 60 / 62 room
panel or ECA 61 / 63 remote control)
Place the room sensor in the room where the temperature is
to be controlled. Do not place it on outside walls or close to
radiators, windows or doors.
DHW temperature sensor (ESMU or ESMB-12)
Place the DHW temperature sensor according to the
manufacturer's specification.
Boiler temperature sensor (ESMU, ESM-11 or ESMC)
Place the sensor according to the boiler manufacturer's
specification.
Flow / air duct temperature sensor (ESM-11, ESMB-12,
ESMC or ESMU types)
Place the sensor so that it measures a representative
temperature.
Slab temperature sensor (ESMB-12)
Place the sensor in the slab.
Valid for ESM-11: Do not move the sensor after it has been
fastened in order to avoid damage to the sensor element.
