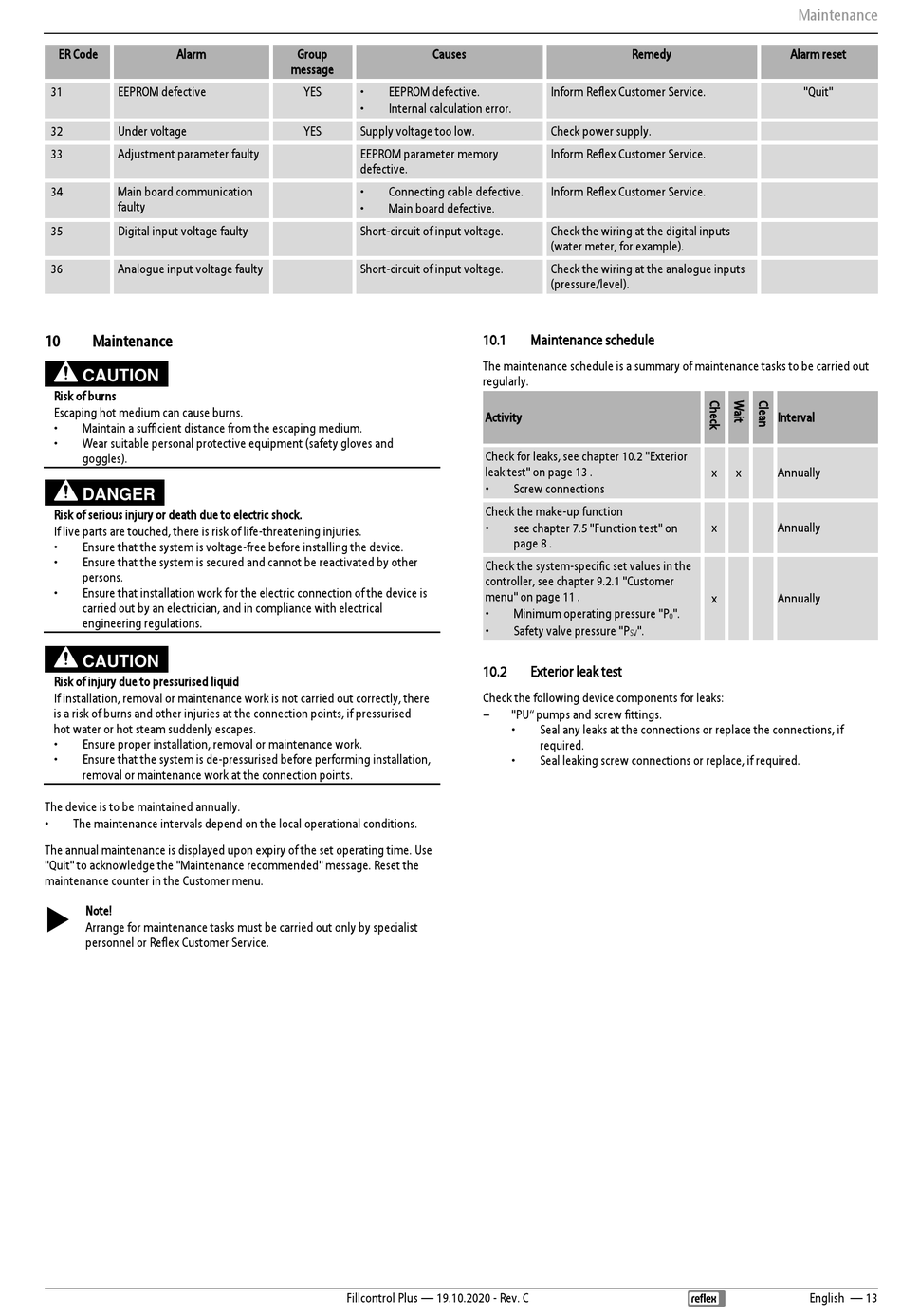

ER Code Alarm
31 EEPROM defective
32 Under voltage
33 Adjustment parameter faulty
34 Main board communication
faulty
35 Digital input voltage faulty
36 Analogue input voltage faulty
10

Maintenance

CAUTION
Risk of burns
Escaping hot medium can cause burns.
• Maintain a sufficient distance from the escaping medium.
• Wear suitable personal protective equipment (safety gloves and
goggles).
DANGER
Risk of serious injury or death due to electric shock.
If live parts are touched, there is risk of life-threatening injuries.
• Ensure that the system is voltage-free before installing the device.
• Ensure that the system is secured and cannot be reactivated by other
persons.
• Ensure that installation work for the electric connection of the device is
carried out by an electrician, and in compliance with electrical
engineering regulations.
CAUTION
Risk of injury due to pressurised liquid
If installation, removal or maintenance work is not carried out correctly, there
is a risk of burns and other injuries at the connection points, if pressurised
hot water or hot steam suddenly escapes.
• Ensure proper installation, removal or maintenance work.
• Ensure that the system is de-pressurised before performing installation,
removal or maintenance work at the connection points.
The device is to be maintained annually.
• The maintenance intervals depend on the local operational conditions.
The annual maintenance is displayed upon expiry of the set operating time. Use
"Quit" to acknowledge the "Maintenance recommended" message. Reset the
maintenance counter in the Customer menu.
 Note!
Arrange for maintenance tasks must be carried out only by specialist
personnel or Reflex Customer Service.
Group Causes
message
YES • EEPROM defective.
• Internal calculation error.
YES Supply voltage too low.
EEPROM parameter memory
defective.
• Connecting cable defective.
• Main board defective.
Short-circuit of input voltage.
Short-circuit of input voltage.
Fillcontrol Plus — 19.10.2020 - Rev. C
Remedy
Inform Reflex Customer Service.
Check power supply.
Inform Reflex Customer Service.
Inform Reflex Customer Service.
Check the wiring at the digital inputs
(water meter, for example).
Check the wiring at the analogue inputs
(pressure/level).
10.1

Maintenance schedule

The maintenance schedule is a summary of maintenance tasks to be carried out
regularly.
Activity
Check for leaks, see chapter 10.2 "Exterior
leak test" on page 13 .
• Screw connections
Check the make-up function
• see chapter 7.5 "Function test" on
page 8 .
Check the system-specific set values in the
controller, see chapter 9.2.1 "Customer
menu" on page 11 .
• Minimum operating pressure "P
• Safety valve pressure "P ".
SV
10.2

Exterior leak test

Check the following device components for leaks:
– "PU" pumps and screw fittings.
• Seal any leaks at the connections or replace the connections, if
required.
• Seal leaking screw connections or replace, if required.
Maintenance
Alarm reset
"Quit"
Interval
x x Annually
x Annually
x Annually
".
0
English — 13
