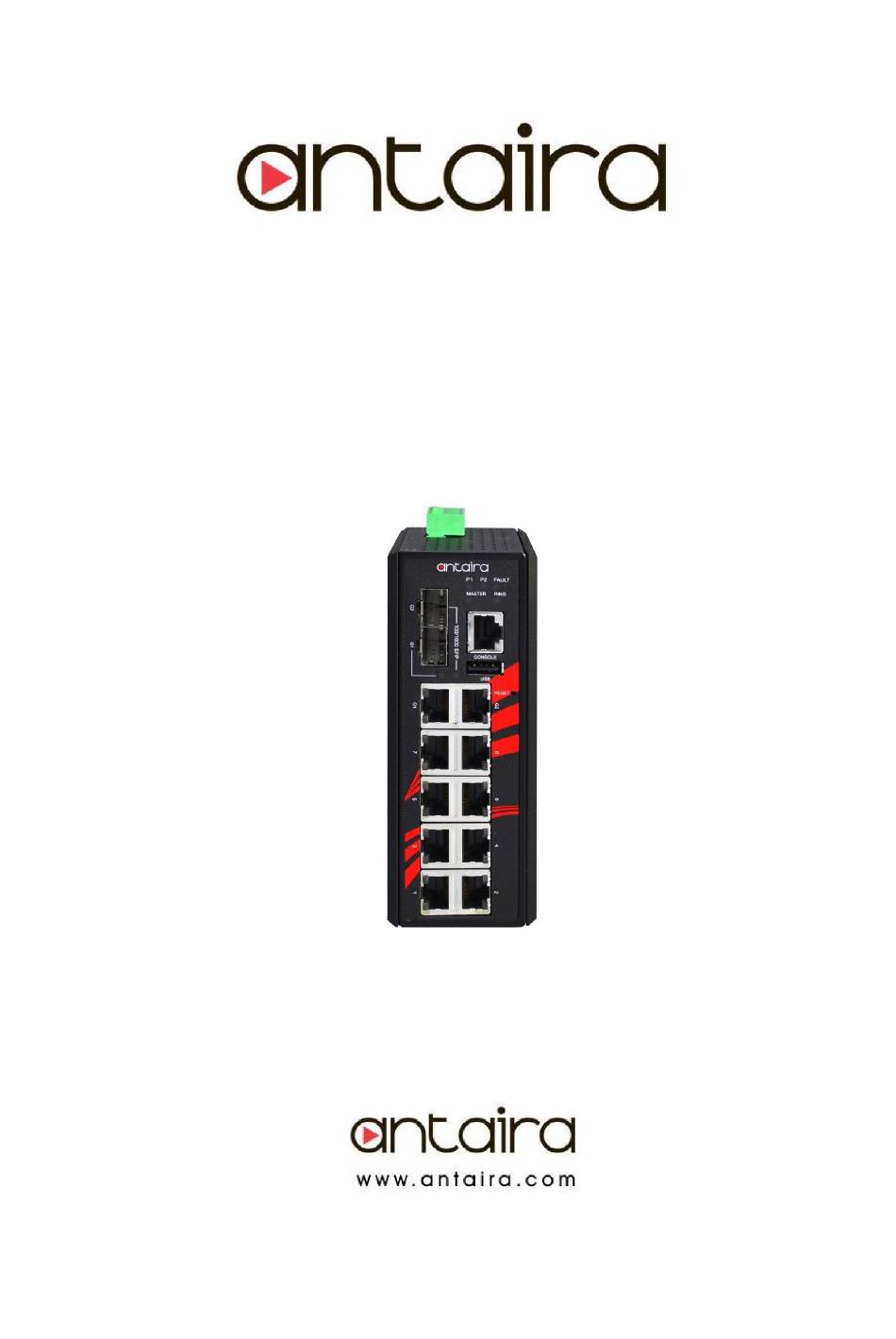

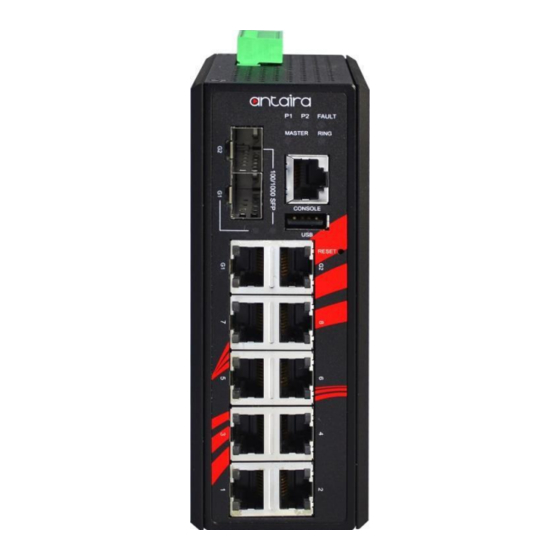

- Page 1 Antaira Industrial Ethernet Switches LMP-1002G-SFP Series User Manual V1.0 LMP-1002C-SFP Series 10-Port Industrial PoE+ Gigabit Managed Ethernet Switch with 8*10/100Tx (30W/Port) and 2*Gigabit Combo Ports (w/2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots) Hardware Manual Version 1.2...
- Page 2 Trademark Information Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the registered trademarks of Wi-Fi Alliance.
- Page 3 Industrial Grade Gigabit PoE Managed Ethernet Switches Hardware Manual Version 1.2 (February 2018) This manual supports the following models: LMP-1002C-SFP LMP-1002C-SFP-T This document is the current official release manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 4: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP Series Hardware Manual V1.2 Table of Contents 1. Introduction ................1 1.1 Product Overview 1.2 Product Software Features 1.3 Product Hardware Features 1.4 Package Contents 1.5 Safety Precaution 2. Hardware Description ............4 2.1 Physical Dimensions... -
Page 5: Introduction
10/100 or 1000Tx Fast Ethernet or a plug in SFP key module with a 100MB or Gigabit fiber connection. The combo ports help achieve bandwidth and/or distance concern applications. The LMP-1002C-SFP series is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol... -
Page 6: Product Hardware Features
Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP Series Hardware Manual V1.2 broadcast storm control, Diffserv IEEE802.1q VLAN tagging, port-based VLAN support IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256 group Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP, HTTPS, SSH/SSL, TFTP ... -
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP Series Hardware Manual V1.2 1.4 Package Contents 1– LMP-1002C-SFP series: 10-port industrial gigabit PoE+ managed Ethernet switch, with 8*10/100Tx (PSE 30W/Port) and 2*Gigabit Combo Ports, (w/2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots) 1-Product CD ... -
Page 8: Hardware Description
LMP-1002C-SFP Series Hardware Manual V1.2 2. Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-1002C-SFP series: 10-port industrial gigabit PoE+ managed Ethernet switches, with 8*10/100Tx (PSE 30W/Port) and 2*Gigabit Combo Ports, (w/2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots). -
Page 9: Front Panel
Figure2.2 - The Front Panel of LMP-1002C-SFP Series 2.3 Top View Figure 2.3, below, shows the top panel of the LMP-1002C-SFP series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs 48~55VDC. Figure2.3... -
Page 10: Led Indicators
Flashing Networking is active (Lower LED) Not connected to network Table 2.1 - LED Indicators for LMP-1002C-SFP Series Caution: "P1" is the abbreviation for "Power ", “P2” is for “Power 2”, “LNK” is for “Link”, and "ACT" is for "Activity". -
Page 11: Reset Button
Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP Series Hardware Manual V1.2 2.5 Reset Button There is a Reset button located on the front panel of the industrial Ethernet switch that helps users to reboot, restore default, or save running configurations by pressing the button for different seconds. -
Page 12: Cabling
(switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. 2.7.1 Gigabit Combo Port - Copper/SFP (Mini-GBIC) Antaira Technologies’ LMP-1002C-SFP series has two auto-detected Gigabit combo ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots for fiber connection) shown in Figure 2.6. - Page 13 Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP Series Hardware Manual V1.2 **Note: The Gigabit combo ports (SFP/Copper) cannot be working at the same time. The SFP port has a higher priority than the copper port. When inserting a 100M or 1000M SFP transceiver (which has connected to the remote device via fiber cable) into the SFP port, the connection of the accompanying copper port link will be down.
- Page 14 Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP Series Hardware Manual V1.2 To remove the LC connector from the transceiver, please follow the steps shown below: 1. Press the upper side of the LC connector from the transceiver and pull it out to release as shown below in Figure 2.10.
-
Page 15: Wiring The Power Inputs
Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP Series Hardware Manual V1.2 2.8 Wiring the Power Inputs Caution: Please follow the steps below when inserting the power wire. 1. Insert the positive and negative wires into the PWR1 (V1+, V1-) and PWR2 (V2+, V2-) contacts on the terminal block connector as shown below in Figure 2.12. -
Page 16: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP Series Hardware Manual V1.2 The wire gauge for the terminal block should range between 12 ~ 24AWG If only using one power source, jumper Pin 1 to Pin 5 and Pin 2 to Pin 6 to ... -
Page 17: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP Series Hardware Manual V1.2 3. Mounting Installation 3.1 DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-... -
Page 18: Wall Mounting
Antaira Technologies - Industrial Ethernet Switches LMP-1002C-SFP Series Hardware Manual V1.2 3.2 Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Caution: “Wall” means industrial control panel wall 1. -
Page 19: Hardware Installation
LMP-1002C-SFP Series Hardware Manual V1.2 4. Hardware Installation 4.1 Installation Steps This section will explain how to install Antaira’s LMP-1002C-SFP series: 10-port industrial gigabit PoE+ managed Ethernet switches with 8*10/100Tx (PSE: 30W/Port) and 2*Gigabit Combo Ports (with 2*10/100/1000Tx RJ45, and 2*100/1000 SFP slots). -
Page 20: Technical Specifications
Clean the device with dry soft cloth. 5. Technical Specifications Table 5.1 has the technical specifications for Antaira’s LMP-1002C-SFP series: 10-port industrial gigabit PoE+ managed Ethernet switch, with 8*10/100Tx (PSE 30W/Port) and 2*Gigabit Combo Ports, (w/2*10/100/1000Tx RJ45 and 2*100/1000 SFP slots). - Page 21 -40°C ~ 85°C (-40°F ~ 185°F) Ambient Relative Humidity 5 to 95%, (non-condensing) FCC Class A IEC6100-4-2/3/4/5/6/8; IEC6100-6-2; IEC6100-6-4 Regulatory IEC60068-2-32 (Free fall) Approvals Stability Testing IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) Safety UL 61010-1, 61010-2-201 Certifications NEMA TS2 Table 5.1 - LMP-1002C-SFP Series Technical Specifications...
- Page 22 Antaira Customer Service and Support (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) + 48-22-862-88-81 (Antaira Asia Office) + 886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
