Mocka Nava Three Drawer Assembly Instructions Manual page 9

Nava Three Drawer
Assembly Instructions
15
N
12
12

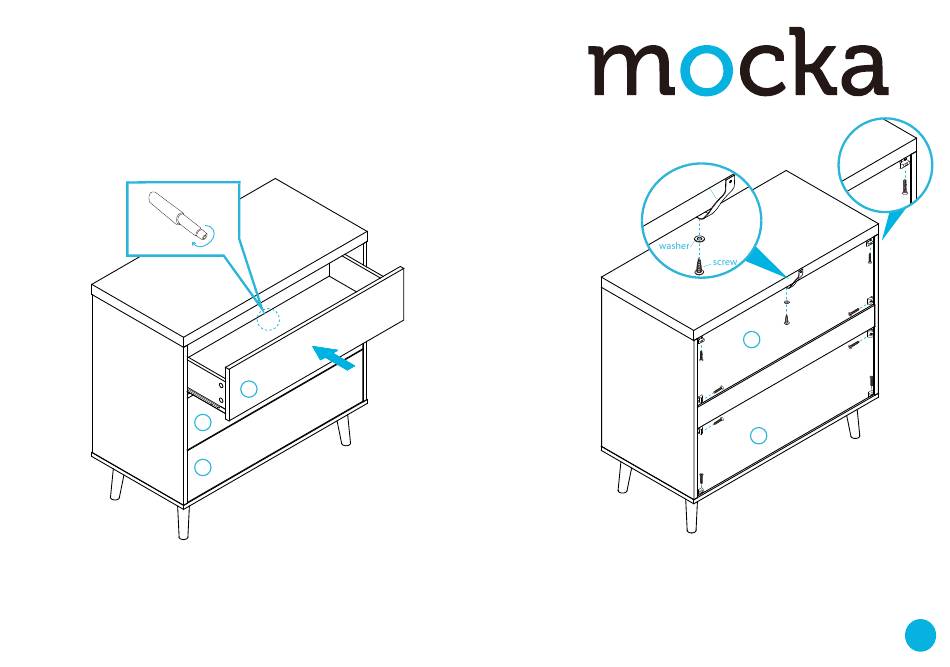

Insert the assembled drawers into the corresponding compartments as
shown. Ensure the drawers slide easily along the rails. If the door is not
catching or sitting flush, twist the end of the cover (N) until it catches on
the seal (S).
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
12
16
Attach 8x wedges (J) into the corners of the back of the unit and secure
with 8x screws (K). Tighten with a screwdriver. Attach 1x safety strap(V)
to the top of the back side of the unit as shown using 1x washer (Z) and
1x screw (W). Tighten with a screwdriver.
strap
J
V
K
Z
W
7
7
J
K
9
