Nava Three Drawer
Assembly Instructions
13
Drawers x3
15
13
P P
P
A
12

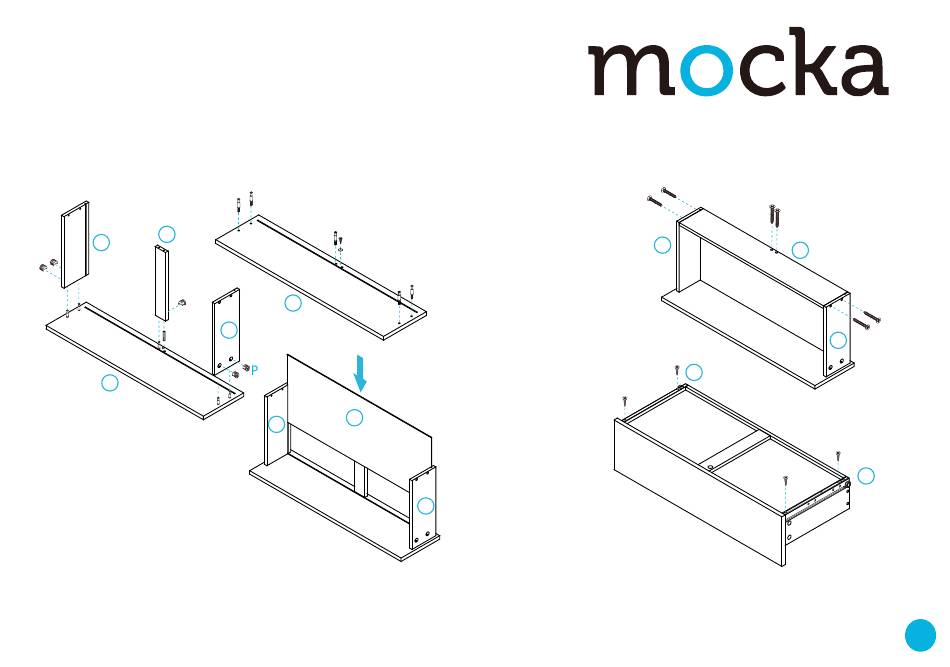

Insert 5x small bolts (O) to panel [12]. Attach 1x seal (S) using
1x screw (E) to panel [12]. Attach panels [13], [14] and [15] to panel
[12] with 1x dowel (A) and using 5x small locking nuts (P). Tighten
with a screwdriver. Slide panel [16] along the grooves between the
panels [13] and [14] to form the base of the drawer.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
O O
O
E
S
O O
12
14
P
16
13
14
Drawers x3
14
Attach panels [13], [14], [15] and [17] as shown using 6x screws (R).
Tighten with a screwdriver. Attach slide rail (I) and slide rail (H) to the
underside of the side panels as shown. Secure with 4x screws (E) and
tighten with a screwdriver.
R
R
R R
13
17
E
14
E
I
E
R
R
14
E
13
H
