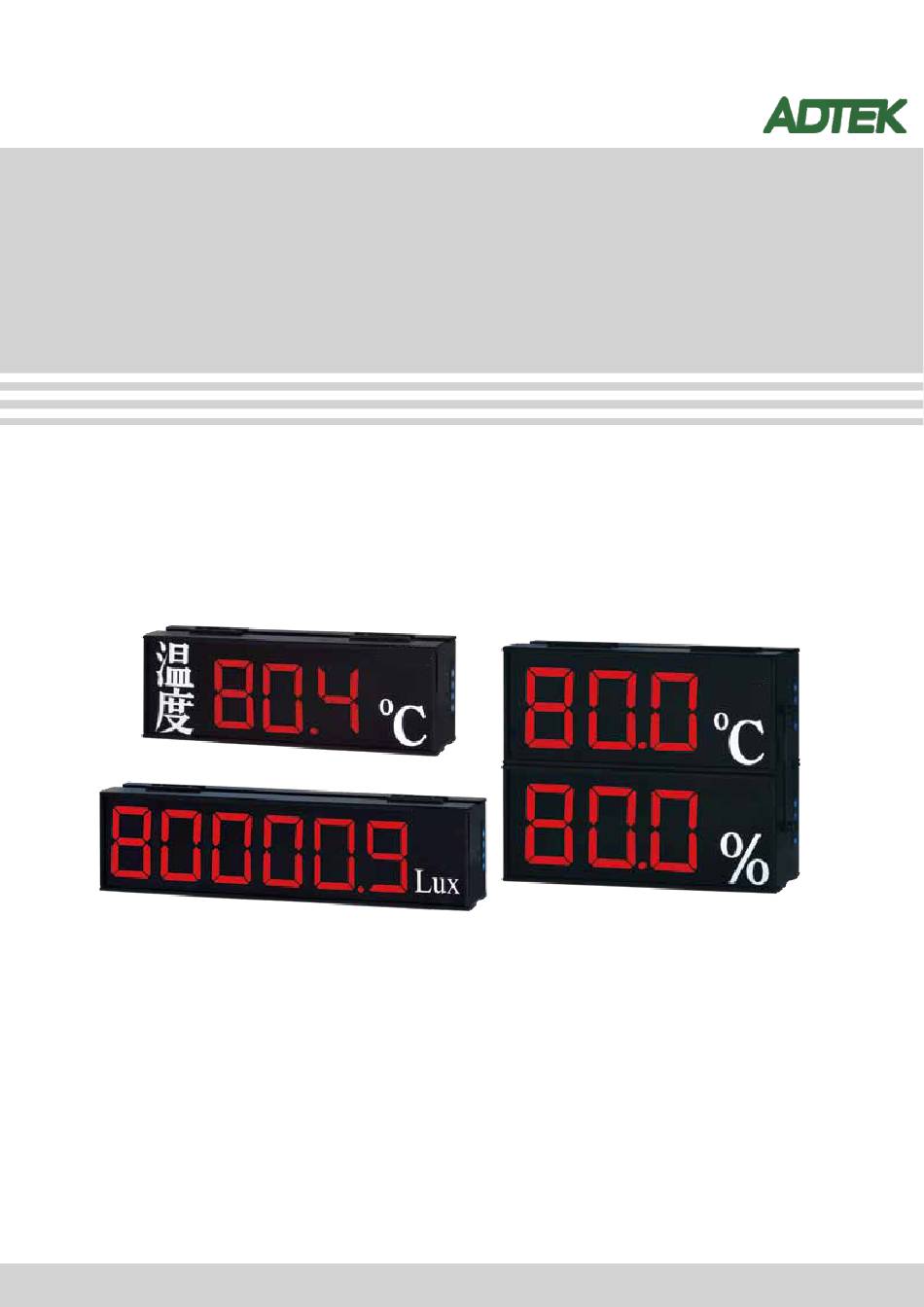

- Page 1 Multifunction Indicator Operation Manual Rev 1.0 2021-05...
- Page 2 Multi Functional Indicator ■ Indicator light AL1-the 1st alarm output ℃ AL2-the 2nd alarm output ■ Button ■ Size chart Press to enter the 1st-order parameter Press to enter the 2nd-order parameter Press to increase the number of parameter Press to decrease the number of parameter Press to return to the main menu ■...
- Page 3 ■ 1st-order parameter( press to proceed) Parameter table Description setting range default value A1SP a1sp The 1st set of alarm setting( additional purchase) -1999~9999 10.00 The 1st set of selected temperature range with alarm turning off. Please note that -1999~9999 000.0 A1HY a1hy...
- Page 4 Description setting range default value Parameter table Analogue voltage/ current none: no default value factory setting none lo: It shows 4mA when an input value reaches 4mA or goes under low limit set value hi: It shows 20mA when an input signal reaches 20mA or goes above high limit set value hilo: Have two modes set at the same time Digital filter: average value of temperature Larger sample sizes set by the filter will show a stable present value(PV) that runs slowly;...
