Summary of Contents for Clarke CTJ3000C

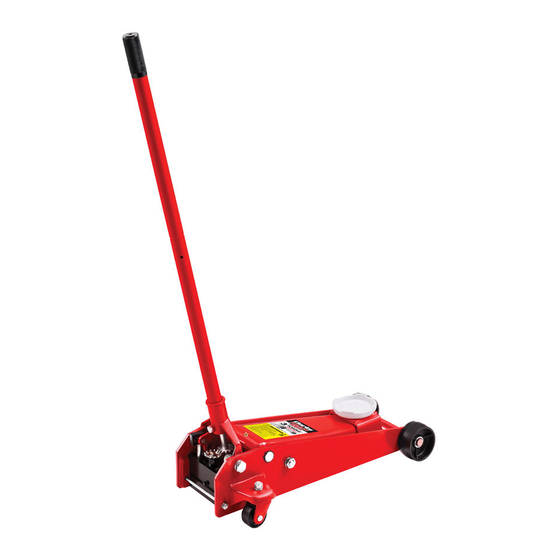

- Page 1 3 TONNE GARAGE JACK CTJ3000C MODEL NO: PART NO: 7623037 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1221...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE 3 Tonne Garage Jack. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
6. DO NOT make any modifications to this jack or adjust any valves. 7. DO NOT use the jack if an oil leak is apparent. Consult your CLARKE dealer. 8. DO NOT use to lift people and ensure that no-one is in the vehicle during lifting. -
Page 4: Unpacking And Assembly
UNPACKING AND ASSEMBLY 1. Remove the wire retaining clip by pressing the handle yoke down- wards and disengaging the clip. 2. Loosen the thumb screw in the yoke until the lower handle can be inserted fully into the handle socket, ensuring the square drive on the end of the handle, engages fully with the square spiggot within the housing. -
Page 5: Preparing For Use
PREPARING FOR USE PURGING AIR FROM THE SYSTEM If air bubbles become trapped inside the hydraulic system during shipping or transport, the efficiency of the jack will be reduced and the jack will feel spongy. 1. Turn the control valve counter-clockwise, relieving the pressure inside the jack. -
Page 6: Operation
OPERATION Before use, inspect the jack for oil leaks or any other sign of damage. Should any be apparent, have the jack repaired by a qualified technician. WARNING: NEVER WORK ON THE VEHICLE WHEN SUPPORTED ONLY BY A JACK. THIS IS HIGHLY DANGEROUS. THE VEHICLE MUST BE SUPPORTED ON AXLE STANDS OR SUITABLE SUPPORTS, BENEATH THE CORRECT JACKING/ SUPPORT POINTS. -
Page 7: Maintenance
2. Store in a dry location. with the ram fully retracted. 3. In the event of damage or broken components, replacements are available from CLARKE Parts & Service. ENVIRONMENTAL PROTECTION One of the most damaging sources of environmental pollution is oil products. -
Page 8: Troubleshooting
Air in the hydraulic Purge the system as on page 5 system Jack will not Return spring may Return to your CLARKE dealer for lower completely be faulty. repair If any of these remedies fail to restore your jack, consult your CLARKE dealer. -
Page 9: Declaration Of Conformity
DECLARATION OF CONFORMITY... -
Page 10: Component Parts - General Assembly
COMPONENT PARTS - GENERAL ASSEMBLY... - Page 11 COMPONENT PARTS - GENERAL ASSEMBLY Description No Description Circlip 20 mm Flat Gear Washer 20 mm Washer Front Wheel Gear Mounting Bolt Frame Handle Set Screw Support Pivot Bolt Torsion Spring Saddle Screw M6 x 35 Lift Arm Pivot Shaft Washer 8 mm Lift Arm Split Pin 2.5 x 12...
