Summary of Contents for Clarke STRONG ARM CTJ3000QLC

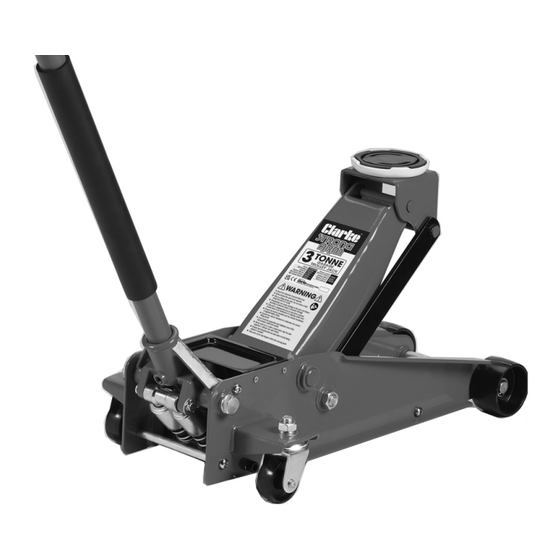

- Page 1 GARAGE JACK CTJ3000QLC MODEL NO: PART NO: 7623210 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0224...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Garage Jack. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
6. DO NOT make any modifications to this jack or adjust any valves 7. DO NOT use the jack if an oil leak is apparent. Consult your CLARKE dealer. 8. DO NOT use to lift people and ensure that no-one is in the vehicle during lifting. -
Page 4: Unpacking And Assembly
UNPACKING AND ASSEMBLY 1. Remove the retaining clip by pressing the handle yoke down- wards and pulling the clip away. 2. Loosen the thumb screw in the yoke until the lower handle can be inserted fully into the handle socket. •... -
Page 5: Operation
OPERATION This jack incorporates a twin piston pump with a ‘quick lift’ facility. This provides the user with a rapid raising operation for the unloaded jack. When the jack encounters a load (the vehicle to be raised), its distance raised per stroke reduces to provide a gradual and controllable lifting operation. -
Page 6: Maintenance
• Oil can be topped up using Clarke Hydraulic Oil (p/n 3050830 1 litre). 4. Purge any air from the system and replace the filler plug and cover plate. 5. Dispose of old/spilled oil appropriately and wipe up any spillage. -
Page 7: Troubleshooting
Air in the hydraulic Purge the system as on page 4 system Jack will not Return spring may Return to your Clarke dealer for lower completely be faulty. repair If any of these remedies fail to restore your jack, consult your Clarke dealer. -
Page 8: Component Parts - Ram Assembly
COMPONENT PARTS - RAM ASSEMBLY... - Page 9 COMPONENT PARTS - RAM ASSEMBLY Description No Description Piston Safety valve spring (low) Circlip Hex bolt M6 x 12 Pressure ring Base plate Bowl washer Copper packing O-ring (24.6x5.1) Pump cylinder (large) Top cap Tension spring (large) O-ring (29.6x3.5) O-ring Nylon ring Split washer Reservoir...
-
Page 10: Component Parts - General Assembly
COMPONENT PARTS - GENERAL ASSEMBLY... - Page 11 COMPONENT PARTS - GENERAL ASSEMBLY Description No Description Circlip Washer Bolt Front wheel Screw Side plate (LH) Rear tie bar Side arm Oil plug Cotter Pin Cover plate Side plate (RH) Hydraulic ram assembly Lifting arm assembly Hinge nut Circlip Handle locking bolt Saddle Yoke...
- Page 12 DECLARATION OF CONFORMITY - UKCA...
-
Page 13: Declaration Of Conformity (Ce)
DECLARATION OF CONFORMITY - CE... - Page 14 GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
- Page 15 USEFUL ITEMS FROM THE CLARKE RANGE...
