Summary of Contents for Clarke STRONG-ARM CTJ3000QLB

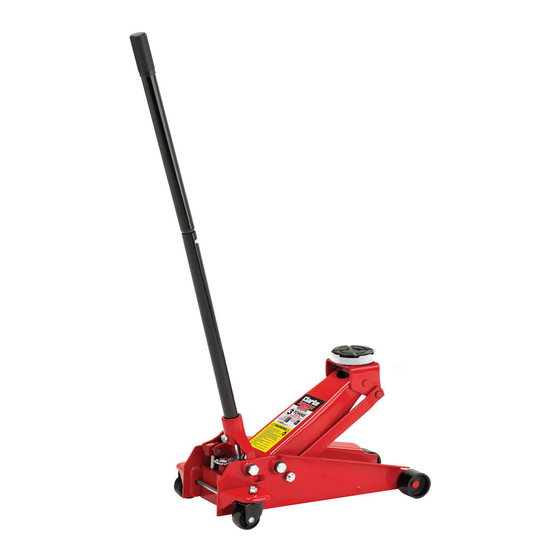

- Page 1 GARAGE JACK CTJ3000QLB MODEL NO: PART NO: 7623205 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1216...
-
Page 3: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Garage Jack. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 4: Safety Precautions
9. Do not try to lift more then the rated load for the jack, (See “Specifications” on page 3.) 10. Do not use the jack if an oil leak is apparent. Consult your Clarke dealer. 11. Consult the vehicle handbook to determine the correct lifting points. -
Page 5: Unpacking And Assembly
UNPACKING AND ASSEMBLY 1. Remove the retaining clip by pressing the handle yoke down- wards and pulling the clip away. 2. Loosen the thumb screw in the yoke until the lower handle can be inserted fully into the handle socket. •... -
Page 6: Purging Air From The System
PURGING AIR FROM THE SYSTEM If air bubbles become trapped inside the hydraulic system during shipping or transport, the efficiency of the jack will be reduced and the jack will feel spongy. 1. Turn the control valve counter- clockwise, relieving the pressure inside the jack, then remove the cover plate. -
Page 7: Maintenance
• Oil can be topped up using Clarke Hydraulic Oil (p/n 3050830 1 litre). 4. Purge any air from the system and replace the filler plug and cover plate. 5. Dispose of old/spilled oil appropriately and wipe up any spillage. -
Page 8: General Care
1. Periodically lubricate the hinges, front wheels & rear castors with light oil. 2. Store in a dry location. 3. In the event of damage or broken components, replacements are available from Clarke Parts & Service. ENVIRONMENTAL PROTECTION One of the most damaging sources of environmental pollution is oil products. -
Page 9: Troubleshooting
Air in the hydraulic Purge the system as on page 6 system Jack will not Return spring may Return to your Clarke dealer for lower completely be faulty. repair If any of these remedies fail to restore your jack, consult your Clarke dealer. -
Page 10: Component Parts - Ram Assembly
COMPONENT PARTS - RAM ASSEMBLY... - Page 11 COMPONENT PARTS - RAM ASSEMBLY Description No Description Safety Valve Body Split Washer Sealing Ring O-Ring Spring Plug Spring Socket Plug Screw Steel Ball Spring Large Plunger Spring Base Split Washer Ball O-Ring Valve Body Primary Pump Spring Base Filter Oil Tube Primary Pump Spring Sleeve Washer Primary Pump Spring...
-
Page 12: Component Parts - General Assembly
COMPONENT PARTS - GENERAL ASSEMBLY... - Page 13 COMPONENT PARTS - GENERAL ASSEMBLY Description No Description Ram Cylinder Assembly X-Headed Screw Cotter (split) Pin Rear Tie Rod Linking Block Washer Circlip Lifting Arm Assembly Washer Supporting Shaft X-Headed Screw Saddle Split Washer Saddle Screw Cover Plate Circlip Yoke Pivot Arm Pivot Upper/Lower Handle Frame Assembly...
-
Page 14: Declaration Of Conformity
DECLARATION OF CONFORMITY...
