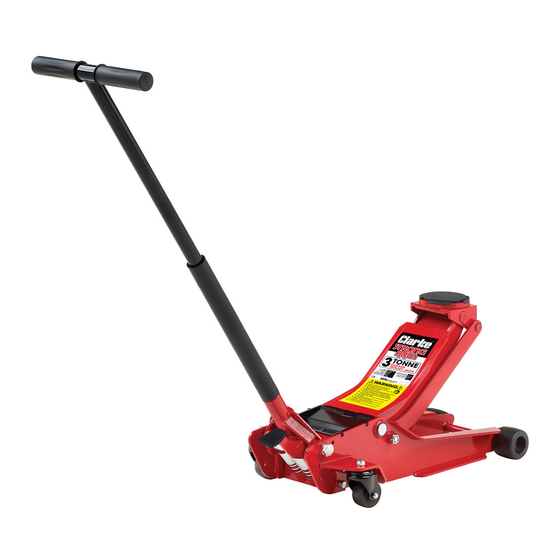

- Page 1 3-TONNE GARAGE JACK MODEL NO: CTJ3LQLPRO PART NO: 7623250 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0320 ISS -1...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Garage Jack. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
5. DO NOT make any modifications to this jack or adjust any valves. 6. DO NOT use the jack if an oil leak is apparent. Consult your CLARKE dealer. 7. DO NOT try to lift more than the 3 Tonne rated load for the jack. -
Page 4: Before Use
BEFORE USE UNPACKING AND ASSEMBLY 1. Remove the retaining clip by pressing the yoke downwards and pulling the clip away. • The yoke can now hinge up and down freely. 2. Insert the jack handle into the handle socket. • The handle will engage with the jack control valve at the base of the yoke. -
Page 5: Operation
OPERATION This jack incorporates a twin piston pump with a ‘quick lift’ facility. This provides the user with a rapid raising operation for the unloaded jack. When the jack reaches the vehicle to be raised its distance raised per stroke reduces to provide a gradual and controllable lifting operation. - Page 6 12. Do not lift the vehicle if there is any chance of spillage of fuel, battery acid or other liquids. 13. Carefully lower the vehicle onto the axle stand(s), checking constantly that the vehicle rests snugly and cleanly on the axle stand and that the stand is stable before the weight is taken.
-
Page 7: Maintenance
Clean exposed areas with a clean oiled cloth. 5. In the event of damage or broken components, replacements are available from CLARKE Parts & Service. CHECKING/TOPPING UP THE OIL LEVEL If the jack has been stored for long periods, check for oil leaks before use. If necessary, check the oil level as follows: 1. -
Page 8: Troubleshooting
If any of these remedies fail to restore your jack, consult your CLARKE dealer. STORAGE Store in a dry, child-proof place with the ram fully lowered. If stored for long periods, inspect at least once a year, clean and re-oil. For servicing, contact your CLARKE dealer or CLARKE International Service Department. -
Page 9: Component Parts - General Assembly
COMPONENT PARTS - GENERAL ASSEMBLY Description No Description Lifting arm assembly Pivot pin and circlip Rubber cap Rubber cap Saddle Handle assembly Wheel set Foot pedal Cylinder assembly Spare part tray Castor assembly Axle and circlip Handle yoke Actuating lever Bolt Return spring Parts &... -
Page 10: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 11 GUARANTEE This product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt which will be required as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
