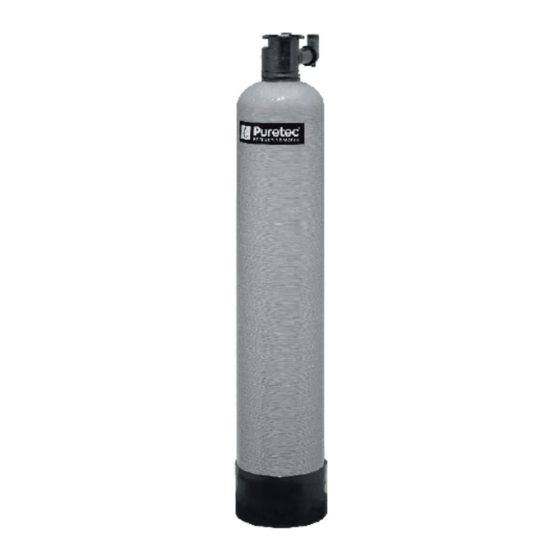

Puretec NTS Series User Manual

Puretec NTS Series User Manual

Neutralising water treatment systems

Advertisement

Quick Links

User Guide
NTS / NTX Series
WMTS103:2016
Cert. No. WM 74593
Neutralising Water Treatment Systems
Australian Certification
Services
For correct operation & installation, it is essential to observe these instructions.
JAN2022

Advertisement

loading
Need help?

Need help?

Do you have a question about the NTS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Puretec NTS Series

  • Page 1 User Guide NTS / NTX Series WMTS103:2016 Cert. No. WM 74593 Neutralising Water Treatment Systems Australian Certification Services For correct operation & installation, it is essential to observe these instructions. JAN2022...
  • Page 2: Table Of Contents

    Troubleshooting Guide ..........................26 Warranty ................................27 Puretec Customer Service Thank you for purchasing a Puretec Treatment System. Your system is a proven performer manufactured from only quality materials and components. It will give years of reliability and trouble free operation if maintained properly.
  • Page 3: Installation Record

    INSTALLATION SHOULD BE COMPLETED BY QUALIFIED TRADESPEOPLE. FAULTY OPERATION DUE TO UNQUALIFIED PERSONS WILL RESULT IN VOIDED WARRANTY COVERAGE. Copyright © Puretec Pty Ltd 2022 NTS/NTX User Guide...
  • Page 4: Before Installation

    As the neutralising media is absorbed, periodic topping up is necessary. The lower the pH, the faster the media will be depleted and the longer the contact time required. The system should be sized according to the pH level and the flow rate required, contact Puretec for a recommendation.
  • Page 5 Select the location of your neutraliser with care. Various conditions which contribute to proper location are as follows: • Locate in correct relationship to other water conditioning equipment. Contact Puretec for assistance. • Locate the neutraliser in the supply line BEFORE the water heater.
  • Page 6 NTS Exploded Diagram Fig. 1 - NTS Exploded Diagram Bypass Valve Elbow Adaptors In/Out Head with Fill Port) (Optional - Sold Separately) Pressure Tank UV Shield Pressure Tank Riser Pipe (pre-installed) Spanner Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
  • Page 7: Nts Model Information

    1 x WTM2000-15L * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). Copyright © Puretec Pty Ltd 2022 NTS/NTX User Guide...
  • Page 8 2 x WTM2000-15L * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
  • Page 9 3 x WTM2000-15L * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). Copyright © Puretec Pty Ltd 2022 NTS/NTX User Guide...
  • Page 10 * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). 10 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
  • Page 11 8 x WTM2000-15L * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). Copyright © Puretec Pty Ltd 2022 NTS/NTX User Guide...
  • Page 12 * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). 12 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
  • Page 13 Fig. 2 - NTX Exploded Diagram Elbow Adaptors Bypass Valve Blending Valve (Optional - Sold In/Out Head with Separately) Fill Port Pressure Tank UV Shield Pressure Tank Riser Pipe (pre-installed) Spanner Copyright © Puretec Pty Ltd 2022 NTS/NTX User Guide...
  • Page 14 * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). 14 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
  • Page 15 (remaining half of the media supplied) * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). Copyright © Puretec Pty Ltd 2022 NTS/NTX User Guide...
  • Page 16 * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). 16 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
  • Page 17 (remaining half of the media supplied) * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). Copyright © Puretec Pty Ltd 2022 NTS/NTX User Guide...
  • Page 18 * Where line pressure exceeds 500 kPa, an approved pressure limiting device must be installed to comply with Australian & New Zealand Plumbing Standards. (Ref. AS/NZS 3500.1:2021, Clause 3.3.4). 18 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
  • Page 19 ___________ ppm / mg/L Customer Service Helpline Conductivity ___________ EC / uS/cm 1300 140 140 (AU) 0800 130 140 (NZ) Chloride ___________ ppm / mg/L Sodium ___________ ppm / mg/L ✓ ✓ ✓ Copyright © Puretec Pty Ltd 2022 NTS/NTX User Guide...
  • Page 20: Warranty

    Allow sufficient space around the installation for easy servicing. Installing the Mixing Valve (NTX systems) Install the mixing valve as per the WTV5050 User Guide included with the mixing valve before proceeding to step 6. 20 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
  • Page 21 Uninstall the plastic Connect the bypass assembly followed fittings by turning the knob by the plastic fittings. Hand tighten the counterclockwise. knobs, do not overtighten. Refer to Page 13 for bypass operation. Copyright © Puretec Pty Ltd 2022 NTS/NTX User Guide...
  • Page 22 If the pH is initially over corrected this can be adjusted with a bypass valve by mixing untreated water with treated water to achieve the desired level (if installed). Testing can be done with a hand-held meter, Puretec PTE20 or similar (not included). Valve Identification...
  • Page 23 * The lower the pH (acidity) of the water being treated, the greater the attrition rate of the media and the slower the water should pass through the bed. The unit should be sized according to the level of pH and existing flow rate. Copyright © Puretec Pty Ltd 2022 NTS/NTX User Guide...
  • Page 24 Reconnect the plumbing to the bypass valve. Blending Valve Operation (NTX systems) For blending vale operation information see the Puretec WTV5050 User Guide included with the NTX models. The Puretec WTV5050 Blending Valve can also be purchased seprately.
  • Page 25 Bypass Valve Operation - Optional Accessory Normal Operation Bypass Operation SUPPLY WATER ‘TREATED’ WATER SUPPLY WATER SUPPLY WATER ENTERS EXITS EXITS ENTERS Shut Off Mode SUPPLY WATER ENTERS NO WATER EXITS Copyright © Puretec Pty Ltd 2022 NTS/NTX User Guide...
  • Page 26 1. Check untreated water for sediment, silt or sand. Install sand trap or multiple cartridge filter prior to neutraliser. 2. Check the inlet is connected to the port labelled "upflow". 26 Installation & Operation Manual Copyright © Puretec Pty Ltd 2022...
  • Page 27 Puretec’s discretion, including chargeable inspection and labour costs incurred. Warranty/Australia This warranty is given by Puretec Pty Ltd, ABN 44 164 806 688, 37-43 Brodie Road, Lonsdale SA 5160, telephone no. 1300 140 140 and email at sales@puretec.com.au.
