Sennetech SCT-CRX-Pelco-Vicon Quick Start Manual

Pelco Coaxitron to Vicon RS-422 Code Translator
The Code Translator detects Pelco coaxitron control code and converts it to equivalent Vicon RS-422
control code for a single Vicon camera.
The removable mounting
clip can be snapped onto a
din rail or screwed to a
panel or wall.
Connect power to the Pwr
inputs. Do not connect
power wires to the Gnd.
Sennetech, Inc. 6455 W. Bath Rd. Perry, MI 48872 U.S.A.

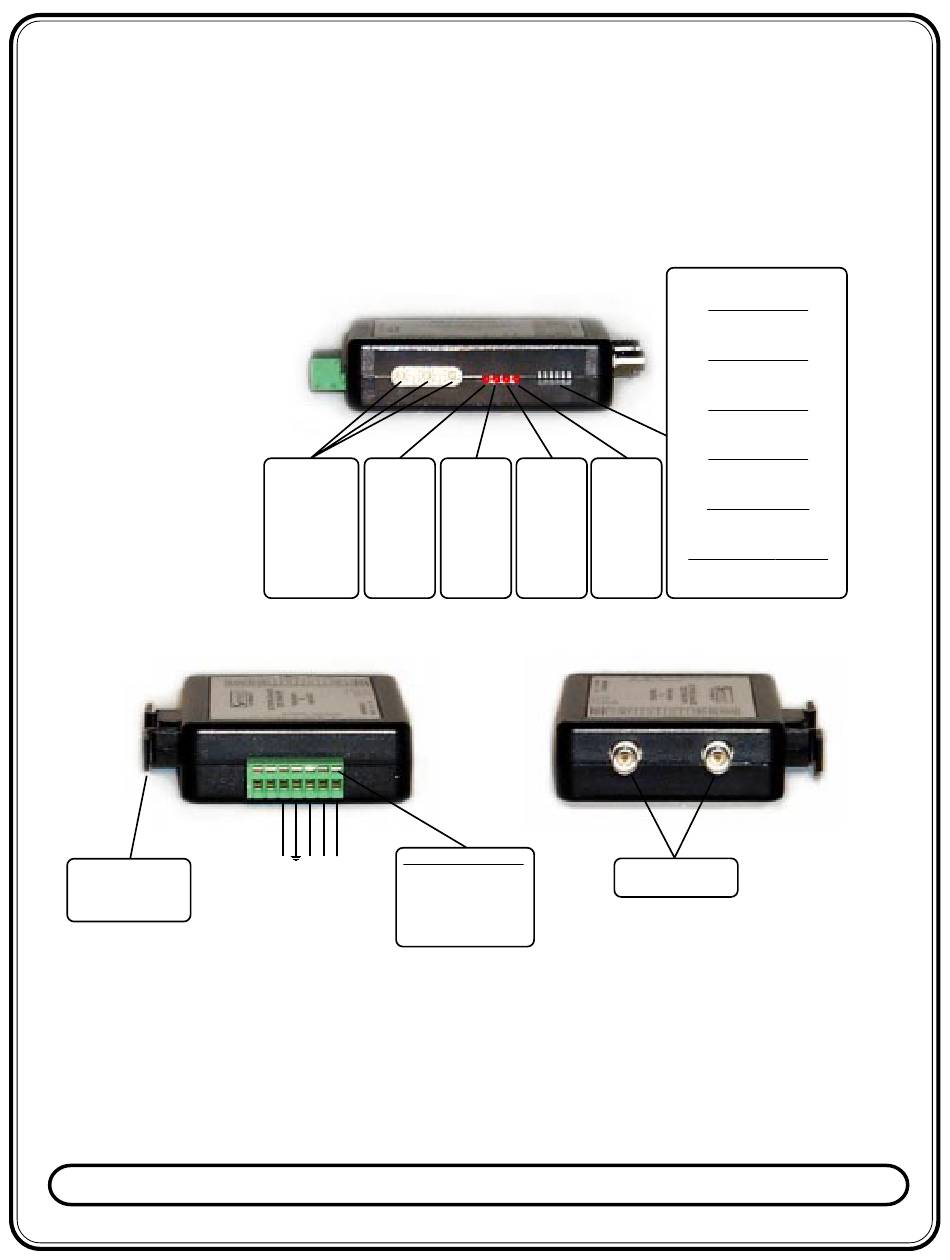

SCT-CRX-Pelco-Vicon
Vicon Rx
Address Switches Indicator
The range is 0~255 Flashs when
coaxitron con-
An invalid setting will trol code is
cause the Err indica- detected.
tor to light up solidly.
n.c.
+ _
Removable edge connector.
Pwr Pwr
Insert a small screwdriver in
Vicon
the upper slot to force open the
Power Data
wire clamp. Push all the way in
Out
to open fully. Place stripped
wire end(s) in the open clamp
and withdraw screwdriver.
SPECIFICATIONS
Size: 4.5" x 3.5" x 1.25"
Weight: 0.5 lb
Power: 9Volt to 15Volt AC or DC at 75ma
Environmental: Indoor use only
www.sennetech.net
Tx Error Video
Indicator Indicator Indicator
Flashs when Lights solidly Illuminates
Vicon camera for any invalid when video
control com- a d d r e s s sync signal
mands are switch set- is detected.
sent. ting.
High impedance looping
coaxial video connectors.
Ph (517) 675 1150
Configuration Switches
Switch1: Vicon BAud
Up: 9600 Baud
Down: 4800 Baud
Switch3: Unassigned
Up:
Down:
Switch3: Unassigned
Up:
Down:
Switch4: Unassigned
Up:
Down:
Switch 5: Unassigned
Up:
Down:
Switch6: Output Test Pattern
Up: Test On
Down: Test Off
Fax (517) 675 1151
