Sennetech SCT-CRX-Pelco-Pelco Quick Start Manual

Pelco Coaxitron to Pelco RS-422 Code Translator
The Code Translator detects Pelco coaxitron control code and converts it into Pelco RS-422 control
code for a single Pelco camera.
NOTE FOR NEW UNITS SHIPPED ON OR AFTER MARCH 01, 2016: For all new units, the baud rate
selection switches now apply to both P code and D code. For units purchased before this date, the
baud rate selection switches apply only to P code (D code set at 2400 baud only).
The removable mounting
clip can be snapped onto a
din rail or screwed to a
panel or wall.
Connect power to the Pwr
inputs. Do not connect
power wires to the Gnd.
Sennetech, Inc. 6455 W. Bath Rd. Perry, MI 48872 U.S.A.
SCT-CRX-Pelco-Pelco

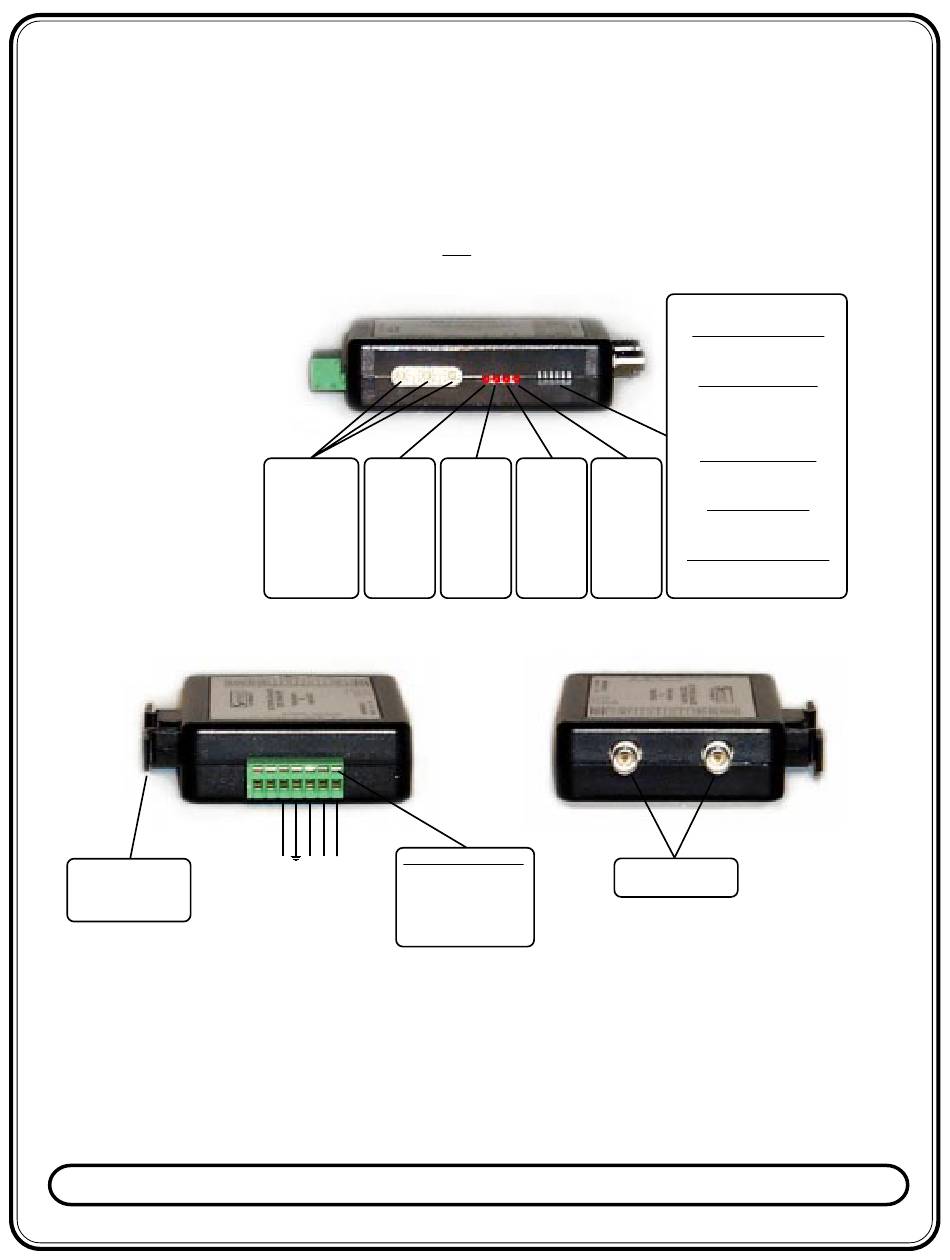

Pelco Rx
Address Switches Indicator
The range is 0~256 Flashs when
coaxitron con-
An invalid setting will trol code is
cause the Error in- detected.
dicator to light up
solidly.
n.c.
_
Removable edge connector.
+
Pwr Pwr
Insert a small screwdriver in
Pelco
the upper slot to force open the
Power Data
wire clamp. Push all the way in
Out
to open fully. Place stripped
wire end(s) in the open clamp
and withdraw screwdriver.

SPECIFICATIONS

Size: 4.5" x 3.5" x 1.25"
Weight: 0.5 lb
Power: 9Volt to 15Volt AC or DC at 75ma
Environmental: Indoor use only
www.sennetech.net
Tx Error Video
Indicator Indicator Indicator
Flashs when Lights solidly Illuminates
Pelco camera for any invalid when video
control com- a d d r e s s sync signal
mands are switch set- is detected.
sent. ting.
High impedance looping
coaxial video connectors.
Ph (517) 675 1150
Configuration Switches
Switch1: Output Code Type
Up: "P" Code
Down: "D" Code
Switches 2&3: Baud Rate
2 Down 3 Down 2400
2 Up 3 Down 4800
2 Down 3 Up 9600
2 Up 3 Up 19.2k
Switch 4: "P" code parity
Up: Even parity
Down: No parity
Switch 5: Unassigned
Up:
Down:
Switch 6: Output Test Pattern
Up: Test On
Down: Test Off
Fax (517) 675 1151
