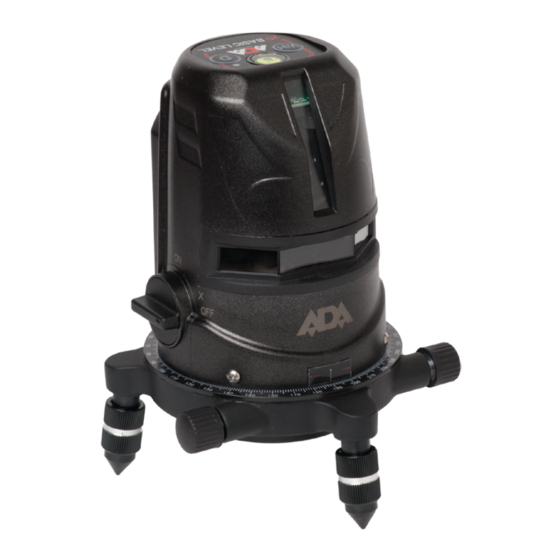

- Page 1 OPERATING MANUAL 2D BASIC LEVEL Line Laser adainstruments.com...
- Page 2 English...
-
Page 3: Specifications
SET WITHOUT GIVING PRIOR WARNING. APPLICATION Line laser 2D BASIC LEVEL is designed to check the horizontal and vertical position of the surfaces of the elements of building structures and also to transfer the angle of inclination of the structural part to similar parts during construction and installation works. -
Page 4: Operation
English 4. Rotation base with scale convenient for use (range 1°). 5. Compensator locking system for safe transportation 6. Indoor and outdoor performance function 7. Back-lighted bubble level FEATURES 1. Laser beam power-on button 2. Back-lighted bubble level (V/H/VH) 3. Indoor/outdoor performance indicator 4. - Page 5 English compensation is also locked. 3. Press V/H button - horizontal beam will turn on. Press the button V/H one more time - vertical laser beam will turn on. Again press the button V/H - horizontal and vertical beams will turn on. 4.
-
Page 6: Checking Accuracy
English CHECKING INSTRUMENT BEFORE OPERATION CHECKING ACCURACY 1. Set two range rods at distance of 5 m. 2. Set the tripod in the center between two rods and place line laser at the tripod. 3. Turn the device on. Two laser beams will turn on. At the rod A, mark point that is indicated by laser cross a1. -
Page 7: Product Life
English APPLICATION This line laser generates visible laser beam allowing to make the following measurements: Height measurement, calibration of horizontal and vertical planes, right angles, vertical position of installations, etc. The line laser is used for indoor performance to set zero marks, for marking out of bracing, installation of tingles, panel guides, tiling, etc. -
Page 8: Laser Classification
English ELECTROMAGNETIC ACCEPTABILITY (EMC) It cannot be completely excluded that this instrument will disturb other instruments (e.g. navigation systems); will be disturbed by other instru- ments (e.g. intensive electromagnetic radiation nearby industrial facilities or radio transmitters). LASER CLASS 2 WARNING LABELS ON THE LASER INSTRUMENT LASER CLASSIFICATION The instrument is a laser class 2 laser product accortding to DIN IEC 60825- 1:2007. -
Page 9: Exceptions From Responsibility
English (with the same or similar model at manufactures option), without charge for either parts of labour. In case of a defect please contact the dealer where you originally pur- chased this product. The warranty will not apply to this product if it has been misused, abused or altered. - Page 10 WARRANTY DOESN’T EXTEND TO FOLLOWING CASES: 1. If the standard or serial product number will be changed, erased, re- moved or wil be unreadable. 2. Periodic maintenance, repair or changing parts as a result of their nor- mal runout. All adaptations and modifications with the purpose of improvement and expansion of normal sphere of product application, mentioned in the service instruction, without tentative written agreement of the expert pro- vider.
-
Page 11: Warranty Card
WARRANTY CARD Name and model of the product __________________________________________ Serial number___________________________Date of sale______________________ Name of commercial organization ________________________________________ stamp of commercial organization Warranty period for the instrument explotation is 24 months after the date of original retail purchase. During this warranty period the owner of the product has the right for free repair of his instrument in case of manufacturing defects. - Page 12 ADA International Group Ltd., No.6 Building, Hanjiang West Road #128, Changzhou New District, Jiangsu, China Made In China adainstruments.com...
