Peco 50721201 Operator's Manual

Pto grass collection system everride warrior series mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

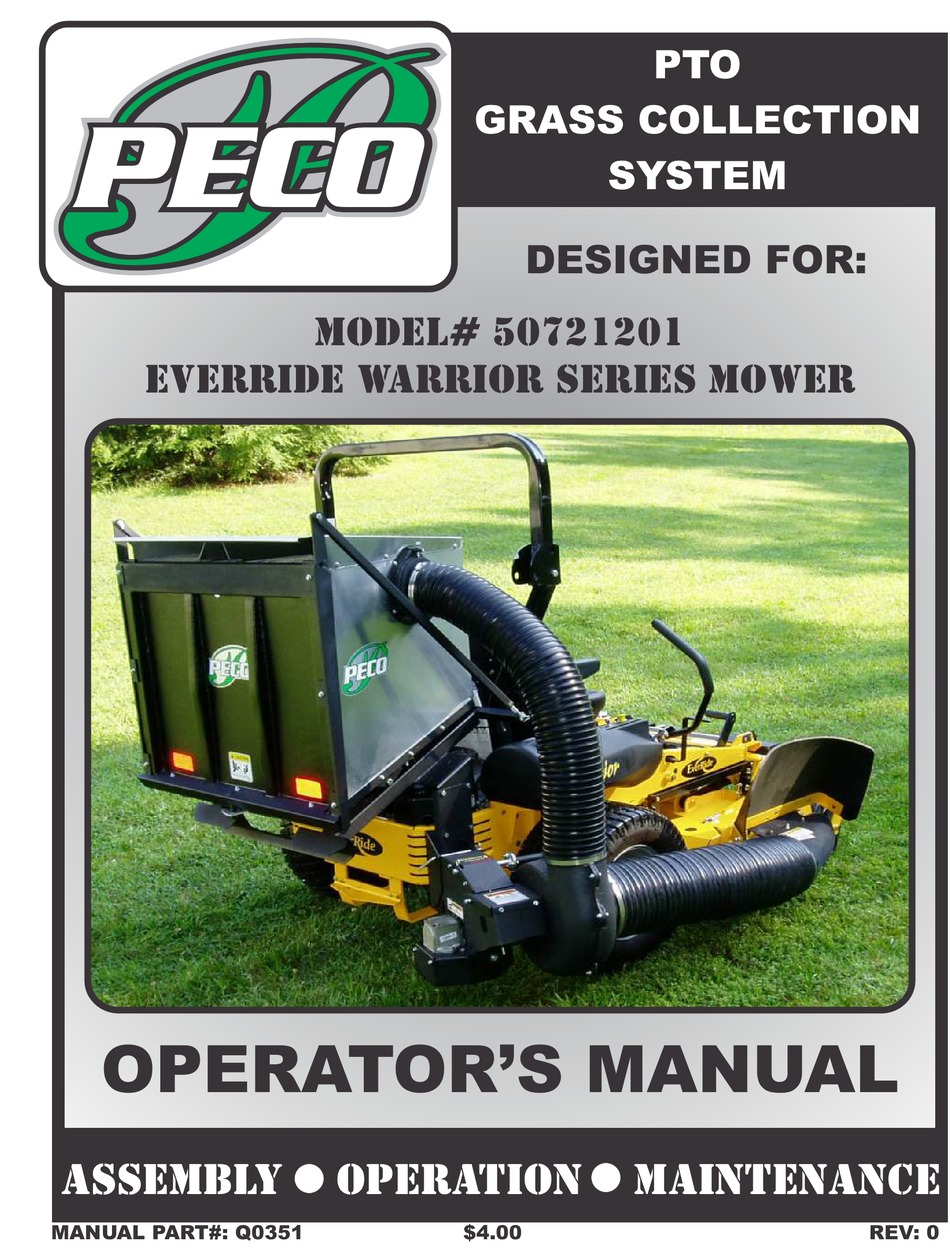

P
P P P
P
PECO
PECO
PECO
PECO
PECO
EVERRIDE WARRIOR SERIES MOWER
OPERATOR'S MANUAL
ASSEMBLY
MANUAL PART#: Q0351
GRASS COLLECTION
MODEL# 50721201
OPERATION
$4.00
PTO
SYSTEM
DESIGNED FOR:
MAINTENANCE
REV: 0

Advertisement

Table of Contents
loading

Related Manuals for Peco 50721201

Summary of Contents for Peco 50721201

  • Page 1 P P P GRASS COLLECTION PECO PECO PECO PECO PECO SYSTEM DESIGNED FOR: MODEL# 50721201 EVERRIDE WARRIOR SERIES MOWER OPERATOR’S MANUAL ASSEMBLY OPERATION MAINTENANCE MANUAL PART#: Q0351 $4.00 REV: 0...

  • Page 2: Table Of Contents

    PECO GRASS COLLECTION SYSTEM TABLE OF CONTENTS SECTION PAGE SECTION PAGE Safety - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2...

  • Page 3: Safety Alert Symbols

    SAFETY WARNING! NEVER operate the mower unless the discharge guard and either the deflector assembly or the vacuum collector adapter are fastened securely in place. WARNING! Do not work around the mower deck boot or the blower area until you are certain that the mower blades and the blower impeller have stopped rotating.

  • Page 4: Warranty

    PECO elects, without charge if the defect appears within 90 days from the date of installation of such part or before the expiration of the original warranty period, whichever is later.

  • Page 5: Introduction And Description

    (Figure 2-1a). Torque the bolt We are pleased to have you as a PECO customer. Your to 55 ft./lbs. collection system has been designed to give you a low maintenance, simple, and effective way to collect the Figure 2-1a.
  • Page 6 Installation Of The Exhaust Deflector Figure 2-1c. Shield With the rear chassis of the mower removed, align the two holes in the exhaust deflector P#(C0053) with the two top slots in the chassis (See Figure 2-1f). Insert (2) tinnerman screws P#(K1092) and fasten using (2) inlet clamp plates P#(B1668).

  • Page 7: Pto Assembly Installation

    2-3 Universal PTO Installation 2-2 PTO Mount Plate Assembly Installation To mount the PTO assembly, insert the mount rod on the PTO assembly P#(A0623) into the mounting slots Place the PTO mount plate assembly P#(A0670) onto located on the PTO mount plate assembly P#(A0670) the right rear chassis of the mower, lining up the lower Figure 2-3a.

  • Page 8: Belt Installation

    2-4 Belt Installation 2-5 Cam Assembly Adjustment Loosen the (4) bolts P#(K1191), (2) on each side, that The cam assembly P#(A0422), which controls the secure the gear box assembly to the PTO assembly blower belt tension, comes from the factory pre-adjusted. P#(A0623) (Figure 2-4a).

  • Page 9: Lift Handle Installation

    2-6 Lift Handle Installation The various parts of the handle assembly P#(A0686) must be attached to the container frame. Page 10 shows the orientation and location of the components. Slide the lift handle into the slot in the handle mount bracket P#(B1730) on the grass container.

  • Page 10: Exploded Part Views And Assemblies

    Figure-9. Figure -12. Lift Handle Assembly Aluminum Grass Container Assembly INLET RING Figure-10. Aluminum Grass Container With Handle Attached Figure-11. Latch Hook Mechanism Assembly...
  • Page 11 Aluminum Grass Container Exploded View...
  • Page 12 MODEL#: 50721201 MOWER NAME: EVERRIDE MOWER MODEL: WARRIOR MOWER DECK SIZE: 60” VAC NAME: 12 CUBIC FOOT PRO 12 FOR YEAR: 2006 PTO DRIVEN REVISED: BOM0279 A0695 UNIT ASSEMBLY 9” x 36” LOWER HOSE 6” x 45” UPPER HOSE HB0267...
  • Page 13 Exploded Parts View...
  • Page 14 PTO Parts List...

  • Page 15: Blower Cone Installation

    2-9 Blower Cone Installation 2-10 Impeller Blade Removal/Replacement Thread (1) 5/16”-18 jam nut P#(K0120) onto each end of (2) 5/16”-18 x 2-1/2” HHCS P#(K0125). Now partially To Remove: First remove the center bolt (#1), washer thread the bolts into each of the two tabs located on the (#2) and spacer (#3) from the taper-lock bushing (#5).

  • Page 16: Length Of Hose Adjustment

    2-11 Boot To Mower Deck Installation 2-13 Upper Hose Installation To mount the boot plate P#(B0331) to the boot Slide (1) 5”-6” upper hose clamp P#(J6011) onto both P#(E1113) use (3) 3/8”-16 x 1” carriage bolts P#(K1182) ends of the 6” upper hose. Place (1) hose ring and (3) 3/8”-16 flange nuts P#(K1215).

  • Page 17: Lower Hose To Boot Installation

    2-15 Lower Hose To Boot Installation Take the unattached end of the lower hose and slide it over the circular end of the boot. Use the lower hose clamp to secure the hose to the boot (Figure 2-15). Tip: Before securing clamp rotate hose counter-clockwise (away from yourself) approximately 1”...

  • Page 18: Operating Instructions

    If there are any portions of the hose that have handle towards the mower. been torn or worn through, replace with genuine PECO parts. WARNING: The blower will continue to spin. DO NOT TOUCH the blower, pulleys, or the belt until the tractor is After Each Use: turned off.

  • Page 19: Lubrication

    3. Check belt for proper tension. 5-1 Parts And Service Information 4-2 Lubrication PECO collection system owners should record the name and telephone number of their Service Center. Your Service Center will be happy to supply replacement NOTE: Use only white lithium based grease for parts, accessories, and do any service or repairs to your lubrication of the shaft on the blower assembly.

  • Page 20: Safety Decals

    SAFETY DECALS To promote safe operation, PECO supplies safety decals on all products manufactured. Damage can occur to safety decals either through shipment, use or reconditioning. Contact your local Service Center for replacement decals. Part #: R4027 Part #: R1053...
  • Page 22 P P P PECO PECO PECO PECO PECO 100 AIRPORT ROAD ARDEN, NORTH CAROLINA 28704 (800) 438-5823 OR (828) 684-1234 FAX: (828) 684-0858 EMAIL: peco@lawnvac.com WEBSITE: www.lawnvac.com...
