1. Connecting and
powering up the board
1.1 Connect the USB-Type C end of the USB cable to
connector CN1 (1).
1.2 Connect the other end of the cable to the USB port of
the host PC.
A LED indicator labeled as PWR
(2)
lights up solid green,
indicating that the board is powered on. Clicker comes equiped with LED
blink example, on power up or RESET, LD1 and LD2 are blinking at 1 Hz
frequency.
1.3 If J-Link drivers are installed on the PC
and detected by the
(3)
board, the LD4 (DBG)
blinks yellow with a very small duty cycle that is
barely noticeable. Otherwise, LD4 (DBG) blinks yellow prominently.
2
1
3

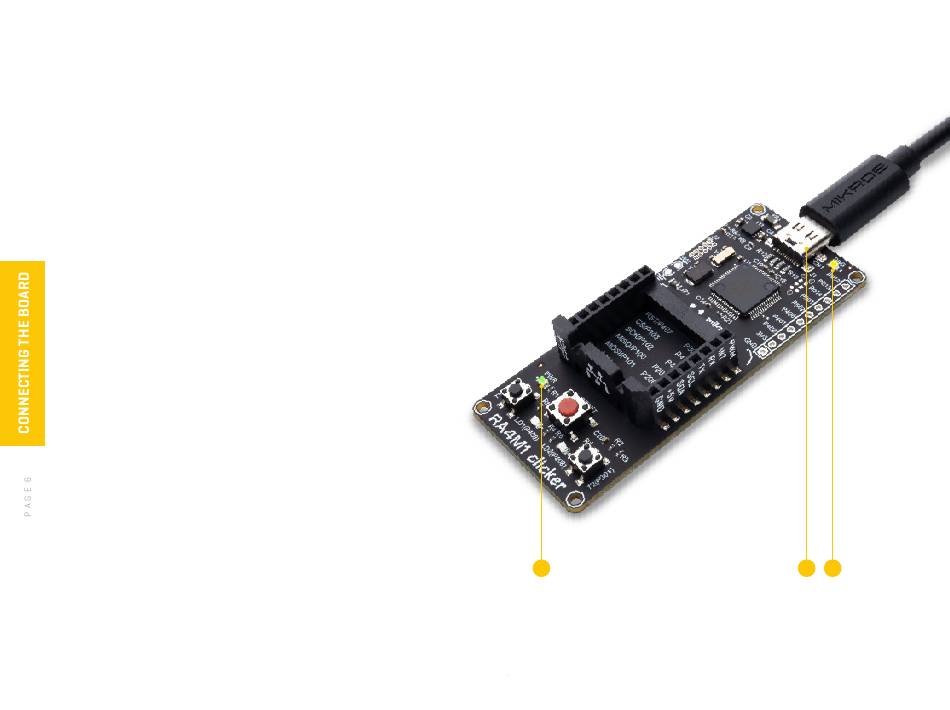

Figure 1: RA4M1 Clicker, connected
RA 4 M 1 C L IC K ER
Q U I C K S T A R T G U I D E
