5. Programming and running
the modified example project
If you have followed the steps explained in 3.2 section, you will have a
generated hex file which you can use to program your MCU. For this we
need a software called J-Flash Lite. Make sure you have an up to date
version or you might not see the RA4M1 in the list.
Click on the button with three dots and find the R7FA4M1AB MCU in the list
and select it, then click OK.
In the new window click on the button with three dots
to the Release hex file generated from our project. Select it and click Open.
At this point you want to make sure that your Clicker is connected to your
PC via USB cable.
Click on the Erase Chip button (2), then click Program Device (3). After
the message Done appears, press the red RESET button on your Clicker to
start the code execution.

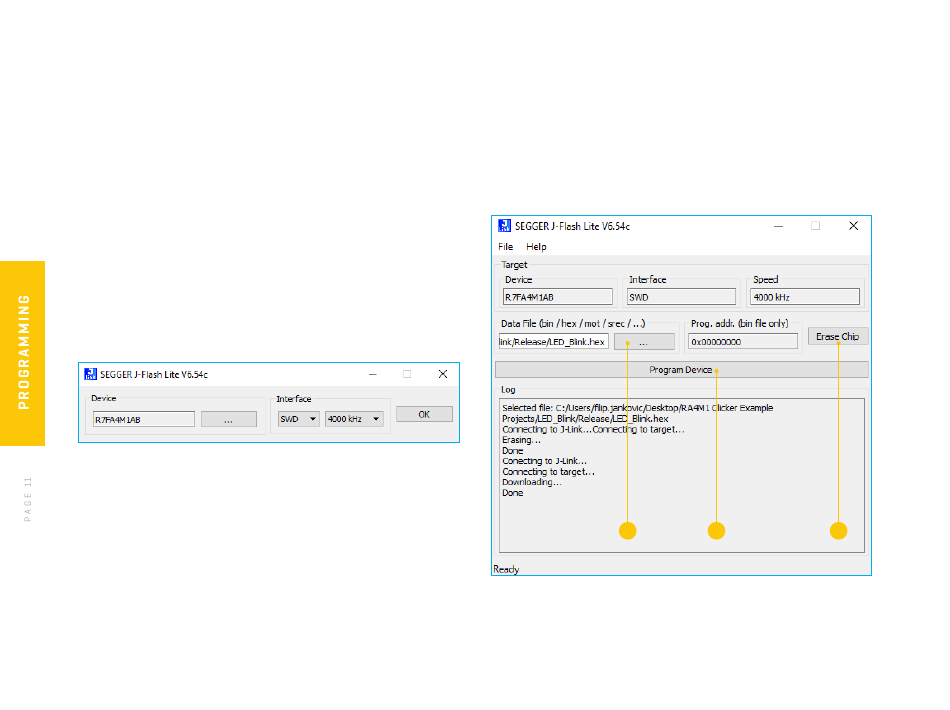

Figure 6: J-Flash Lite window
(1) again and navigate
1 3
Figure 7: J-Flash Lite – Program Device window
