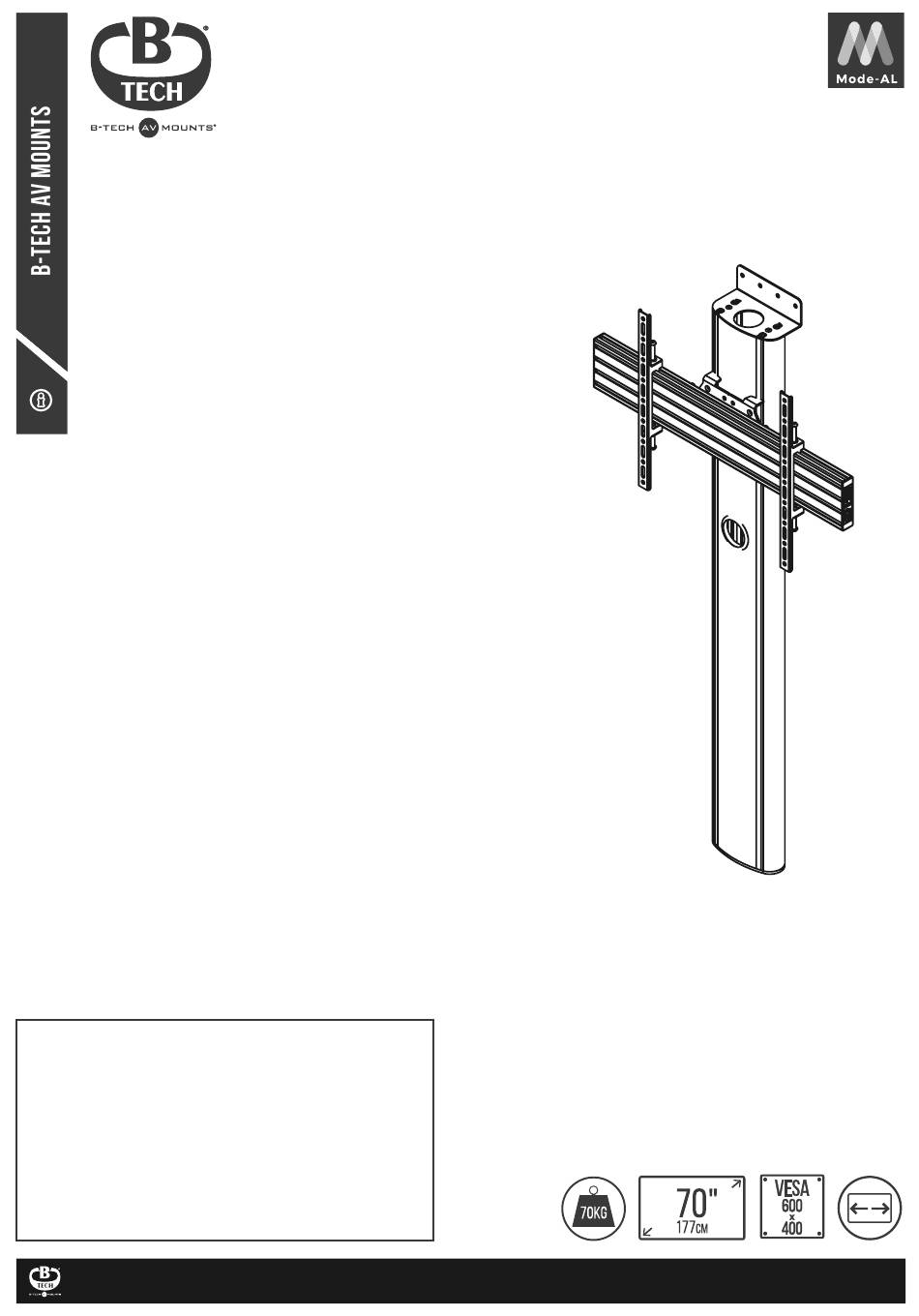

BT8700
PREMIUM FLOOR-TO-WALL
SINGLE SCREEN UC STAND
INSTALLATION GUIDE
SPECIFICATIONS
• Recommended for screens up to: 70" (177cm)
• Max load: 70kg (154lbs)
• Stand Dimensions: H.1369 x W.705 x D.159mm
• Suitable for displays with VESA
• Universal design suitable for displaying screens
in a landscape or portrait orientation
• Integrated cable management
®
& non-VESA
www.btechavmounts.com
Advertisement
Table of Contents
Related Manuals for B-Tech BT8700
Summary of Contents for B-Tech BT8700
- Page 1 BT8700 PREMIUM FLOOR-TO-WALL SINGLE SCREEN UC STAND INSTALLATION GUIDE SPECIFICATIONS • Recommended for screens up to: 70" (177cm) • Max load: 70kg (154lbs) • Stand Dimensions: H.1369 x W.705 x D.159mm ® • Suitable for displays with VESA & non-VESA •...
-
Page 2: Installation Safety Instructions
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire. - Page 4 BT8700 PARTS LIST PLEASE KEEP THIS FOR FUTURE REFERENCE NOT REQUIRED...
-
Page 5: Mounting Rail
ITEM PART DESCRIPTION 1.3M COLUMN COLUMN REAR COVER END CAP (NOT REQUIRED) M6 x 12mm HEX SCREW M6 x 12mm GRUB SCREW (OPTIONAL) SQUARE NUT (OPTIONAL) COVER STRIP 3AF HEX KEY 4AF HEX KEY WALL PLATE BASE PLATE M6 x 12mm SCREW M8 x 50mm COACH SCREW M8 T1.5mm METAL WASHER N°.10 x 50mm WALL PLUG... - Page 6 Installation Instructions ATTACH MOUNTING BRACKET TO COLUMN i. Insert 4 x item C2 into item C1 and attach item C3. Screw two full turns to leave item C3 at the end of item C2. M6 x 40mm RECTANGLE CSK HEX SCREW ii.
- Page 7 ATTACH WALL PLATE TO COLUMN Fix item B1 to the top of item A1 using item B3. M6 x 12mm HEX SCREW TOP VIEW FIX FLOOR PLATE TO FLOOR 60mm Fix item B2 to floor (fixings not included). Note: Fixing points are 60mm away from the wall. 06.5mm GROUND ANCHORS (not supplied)
- Page 8 MARK WALL FIXING HOLES Using the guide pins, place item A1 onto item B2. Mark the 4 fixing holes from item B1 onto the wall. GUIDE PINS...
- Page 9 DRILL HOLES AND INSERT WALL PLUGS Remove item A1 and drill marked holes. Insert 4 x item B6 (Not required for stud/wood walls). MASONARY WALL Use a 10mm Masonary Drill Bit or a 6mm Wood Drill Bit...
- Page 10 HOOK RAIL ONTO MOUNTING BRACKET i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel). ii. Screw 2 x item C5 into item C4 in the top channel - M8 x 12mm SLIDING INSERT HEX SCREW allow at least a 6mm gap so the rail can be hooked on to item C1.
- Page 11 FIX COLUMN TO WALL Place item A1 onto item B2 and fix item B1 to the wall using items B4 & B5.
- Page 12 ATTACH INTERFACE ARMS TO SCREEN Fix item E1 to the rear of the screen using items E3 - E15. Note: Ensure the arms are facing the correct way round and the same holes are used on both arms. E3-E11 SCREEN Use spacers (items E13-E15) for screens with recessed fixings.
-
Page 13: Height Adjustment
LEVEL SCREEN AND LOCK ONTO RAIL Optional: If necessary, adjust the height adjustment screws on top of item E1 to level the screen. Tighten the safety screws on the bottom of item H1 securing the screen to item D1. Optional: HEIGHT ADJUSTMENT SCREW Safety Screw... -
Page 14: Front View
PLEASE KEEP THIS FOR FUTURE REFERENCE SIDE VIEW FRONT VIEW 159mm 79.5mm MAX 672mm 20.5mm 180mm 8.4mm 60.8mm THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. -
Page 15: Rear View
REAR VIEW 50mm 50mm 50mm TOP VIEW 15mm 8.5mm 705mm 90mm 51mm BOTTOM VIEW 6.5mm 66mm 150mm 60.8mm THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. - Page 16 ©2020 B-Tech AV Mounts. All rights reserved. B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd. B-Tech AV Mounts and the B-Tech logo are registered trade marks. All other brands and product names are trademarks of their respective owners.
