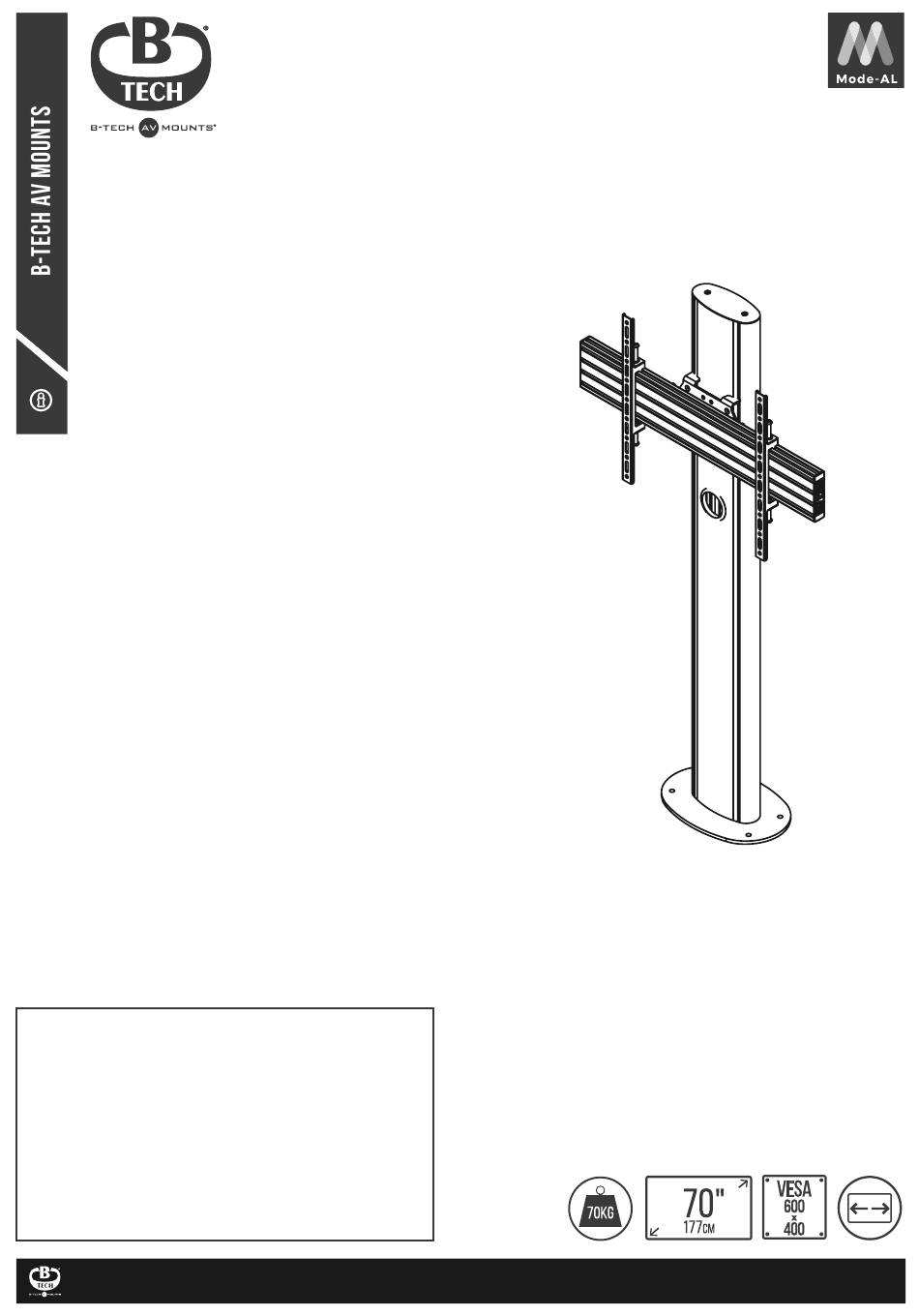

BT8703
PREMIUM BOLT DOWN
SINGLE SCREEN UC STAND
INSTALLATION GUIDE
SPECIFICATIONS
• Recommended for screens up to: 70" (177cm)
• Max load: 70kg (154lbs)
• Stand Dimensions: H.1313 x W.705 x D.210mm
• Suitable for displays with VESA
• Universal design suitable for displaying screens
in a landscape or portrait orientation
• Integrated cable management
®
& non-VESA
www.btechavmounts.com
Advertisement
Table of Contents
Related Manuals for B-Tech BT8703
Summary of Contents for B-Tech BT8703
- Page 1 BT8703 PREMIUM BOLT DOWN SINGLE SCREEN UC STAND INSTALLATION GUIDE SPECIFICATIONS • Recommended for screens up to: 70" (177cm) • Max load: 70kg (154lbs) • Stand Dimensions: H.1313 x W.705 x D.210mm ® • Suitable for displays with VESA & non-VESA •...
-
Page 2: Installation Safety Instructions
Please check carefully to make sure there are no missing or defective parts - defective parts must never be used. B-Tech AV Mounts, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire. - Page 4 BT8703 PARTS LIST PLEASE KEEP THIS FOR FUTURE REFERENCE...
-
Page 5: Mounting Rail
DESCRIPTION ITEM PART 1.3M COLUMN END CAP COLUMN REAR COVER M6 x 12mm HEX SCREW M6 x 12mm GRUB SCREW (OPTIONAL) SQUARE NUT (OPTIONAL) COVER STRIP 3AF HEX KEY 4AF HEX KEY BOLT DOWN BASE M6 x 35mm CSK HEX SCREW 4AF HEX KEY RAIL-TO-COLUMN MOUNTING BRACKET M6 x 40mm CSK HEX SCREW... -
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS OPTIONAL FIX REAR COVER TO COLUMN Place item A3 into the back of item A1. Use items A5 & A6 at the top and bottom of the column slot to secure rear cover. M6 x 12mm SQUARE GRUB SCREW FRONT REAR REAR... - Page 7 ATTACH MOUNTING BRACKET TO COLUMN i. Insert 4 x item C2 into item C1 and attach item C3. Screw two full turns to leave item C3 at the end of item C2. M6 x 40mm RECTANGLE CSK HEX SCREW ii. Slide item C1 down the front slots of item A1 to the correct height and tighten items C2. SLOTS...
- Page 8 HOOK RAIL ONTO MOUNTING BRACKET i. Insert 4 x item C4 into item D1 (2 in the top channel, 2 in the bottom channel). ii. Screw 2 x item C5 into item C4 in the top channel - allow at least a 6mm gap so the rail can be hooked on to item C1.
- Page 9 ATTACH END CAP Fix item A2 onto the top of item A1 using item A4. M6 x 12mm HEX SCREW BOLT STAND TO THE FLOOR Pre-drill holes in floor and using suitable ground anchor fixings (not supplied), fix stand to floor. BASE PLATE FIXING DIMENSIONS 230mm 4 x Ø10.5...
-
Page 10: Height Adjustment
ATTACH INTERFACE ARMS TO SCREEN Fix item E1 to the rear of the screen using items E3 - E15. Note: Ensure the arms are facing the correct way round and the same holes are used on both arms. E3-E11 SCREEN Use spacers (items E13-E15) for screens with recessed fixings. -
Page 11: Bottom View
Note: Item A7 may have to be cut down to size to be able to fit into the front of item A1. Use pliers to cut item A7 to correct size BT8703 DIMENSIONS PLEASE KEEP THIS FOR FUTURE REFERENCE SIDE VIEW 138.5mm... - Page 12 ©2020 B-Tech AV Mounts. All rights reserved. B-Tech AV Mounts is a division of B-Tech International Design and Manufacturing Ltd. B-Tech AV Mounts and the B-Tech logo are registered trade marks. All other brands and product names are trademarks of their respective owners.
