B-Tech BT8221 Installation Manual
Ultra-slim double arm flat screen wall mount for large screens
Hide thumbs
Also See for BT8221:
- Installation manual & parts list (12 pages) ,
- Installation manual & parts list (12 pages)
Advertisement
Quick Links
Min
Max
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Product Dimensions..........................................................................................................................11
B-Tech Contact Details.....................................................................................................................12
INSTALLATION TOOLS REQUIRED
13mm (1/2") spanner
or socket
B-TECH AUDIO VIDEO MOUNTS
BT8221
ULTRA-SLIM DOUBLE ARM FLAT SCREEN
WALL MOUNT FOR LARGE SCREENS
INSTALLATION GUIDE & PARTS LIST

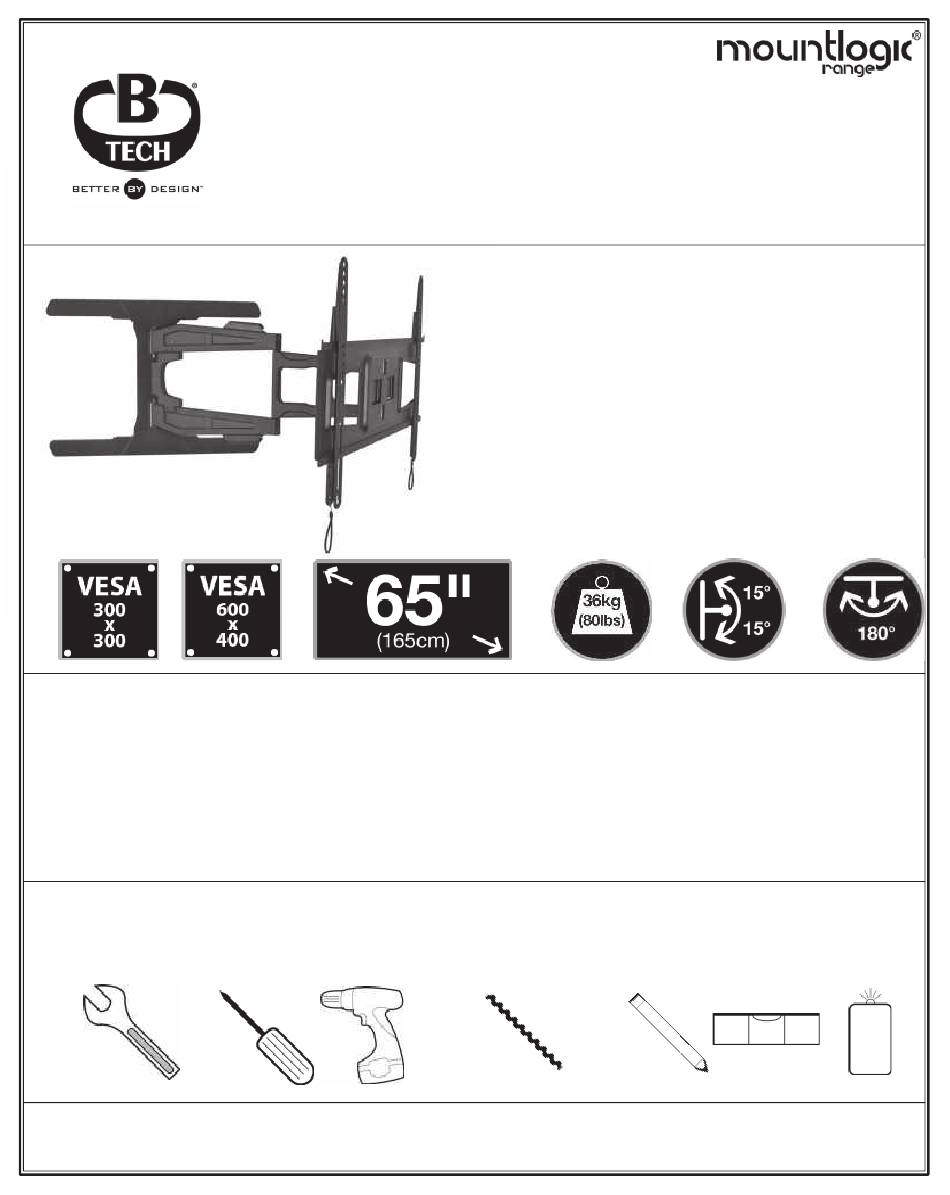

This Pack Contains 1 Mount
PLEASE KEEP THIS FOR FUTURE REFERENCE
CONTENTS
Crosshead
Drill
screwdriver
www.btechavmounts.com
FEATURES
•
Designed for screens up to 65" (165cm) / 36kg (80lbs)
•
Full motion mount - idea l for corner mounting
•
Universal screen interface fits screens with VESA and
non-VESA mounting patterns from up to 600 x 400mm
•
Easy +/-15° tilt and 180° swivel adjustment (no tools required)
•
Ultra-Slim design mounts screen just 37mm (1.5") from wall
•
Arm extends up to 560mm (22")
•
Integrated cable management
•
Suitable for concrete, brick and stud walls up to 16"
•
Simple 'hook-on' installation with all mounting hardware included
10mm (7/16") masonry bit
or 6mm (1/4") wood bit
Level
Pencil
(optional)
Stud finder
(optional)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for B-Tech BT8221
Summary of Contents for B-Tech BT8221
-
Page 1: Table Of Contents
Parts List.............................4 Installation Instructions........................6 Product Dimensions..........................11 B-Tech Contact Details........................12 INSTALLATION TOOLS REQUIRED 13mm (1/2") spanner Crosshead Level Drill 10mm (7/16") masonry bit Stud finder Pencil or socket screwdriver (optional) or 6mm (1/4") wood bit (optional) B-TECH AUDIO VIDEO MOUNTS www.btechavmounts.com... -
Page 2: Installation Safety Notes
Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire. - Page 3 Niniejszy produkt musi być zamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno przekraczać podanego maksymalnego obciążenia. A B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta.
-
Page 4: Parts List
BT8221 PARTS LIST Suitable for loads up to 36kg (80lbs) - Page 5 PART NAME FLAT SCREEN WALL MOUNT INTERFACE KIT WALL PLATE COVER (FOR ATTACHING MOUNT TO LEFT INTERFACE ARM BACK OF FLAT SCREEN) RIGHT INTERFACE ARM INTERFACE KIT M6 x 16mm SCREW M6 x 30mm SCREW M8 x 16mm SCREW M8 x 35mm SCREW M6 WASHER (FOR PARTS A &...
-
Page 6: Installation Instructions
INSTALLATION INSTRUCTIONS Fix wall plate to the wall using one of the following methods. i. Concrete / brick walls. Remove the wall plate covers first. 10mm (7/16") masonry bit ii. Wood / stud walls. Remove the wall plate covers first. STUD FINDER (Optional) 6mm (1/4") - Page 7 Attach the interface arms to the flat screen. NOTE: Ensure the same holes are used on both of the interface arms. FLAT SCREEN FOR SCREENS WITH RECESS FIXINGS SCREW INTERFACE WASHER SPACER FLAT FLAT SCREEN SCREEN RECESS...
- Page 8 Hook the screen with interface arms onto the mount. Secure the interface arms to the mount using the locking tabs on both interface arms.
- Page 9 Attach the wall plate covers onto the wall plate. A small padlock can be used Cable management. to prevent the interface arms being removed. CABLE CLIPS Hole for padlock is Ø5mm CABLES PADLOCK...
- Page 10 Adjust the tilt by hand (no tools required). ° +/- 15 Screen Leveling. ° +/- 5 Adjust ° +/- 5 Increase the arm tension if required. ADJUST SCREW...
-
Page 11: Product Dimensions
1.5" 4.1" 672.2mm 26.5" 395mm 1084.1mm 15.6" 42.7" 295mm 11.6" 516.1mm 20.3" 0.4" 195mm 7.7" 34mm 1.3" THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT. -
Page 12: B-Tech Contact Details
