ADDAC207 INTUITIVE QUANTIZER
Revision.05 April.2021
ADDAC SYSTEM page 6
USER'S GUIDE
QUANTIZER BABY STEPS
So now that VCO's are tuned we want to start quantiz-
ing some signals.
First we need to get out of Keyboard Mode back to
Quantizer Mode. For this we need to press Button 1 for
a couple seconds. Lights will change and display the
Active Notes selected, should still show C Major Key.

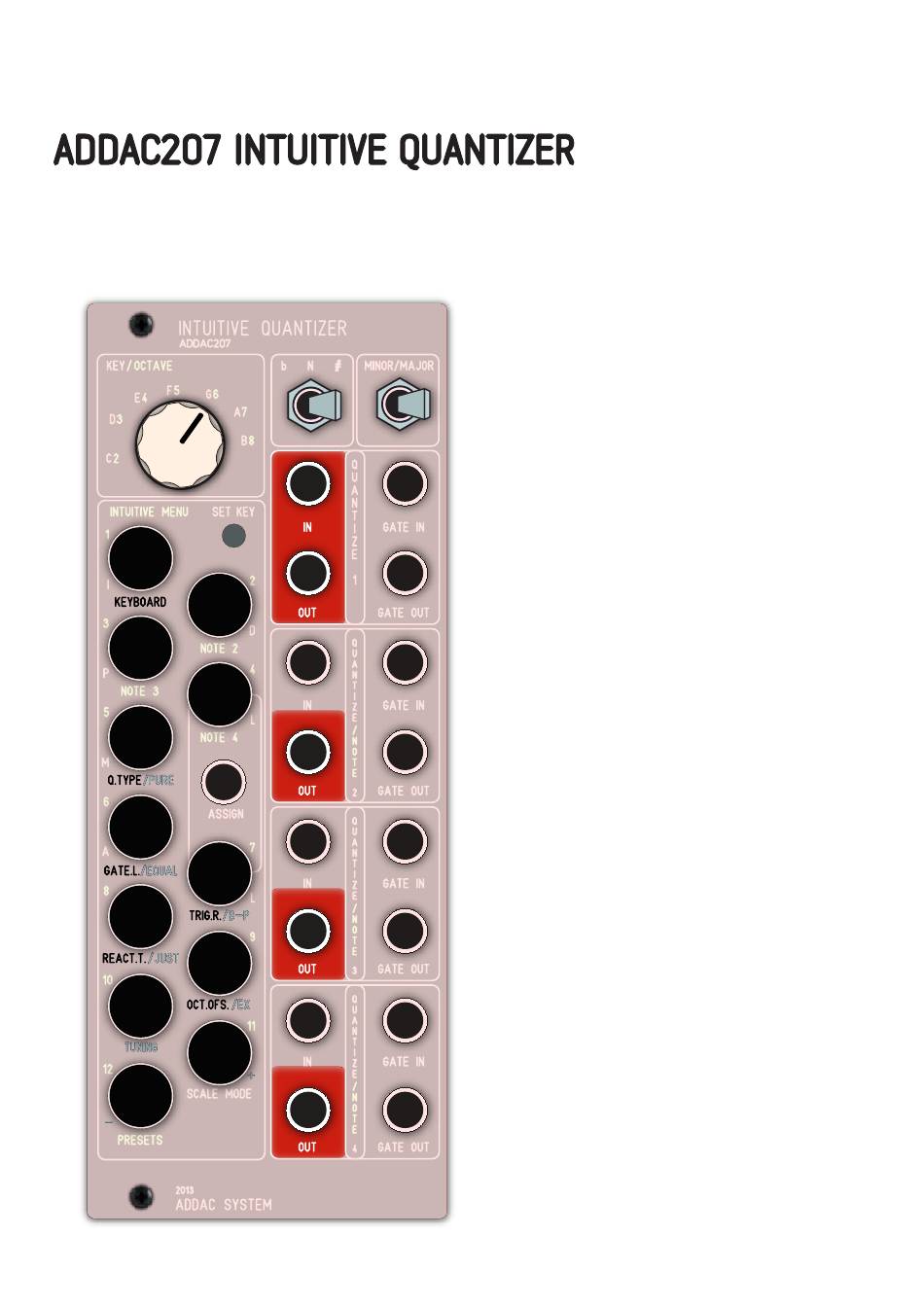

At this point you should plug any CV signal into IN jack
of NOTE 1 (top left jack).
Immediately all outputs will send the same voltages
to all VCO's and they all should play tuned.
Now we're able turn notes On and Off by pressing the
corresponding keyboard buttons.
After this we could also plug more CV signals to NOTE
2-3-4 Inputs and have them all quantizing a diferent
CV source to the same scale.
