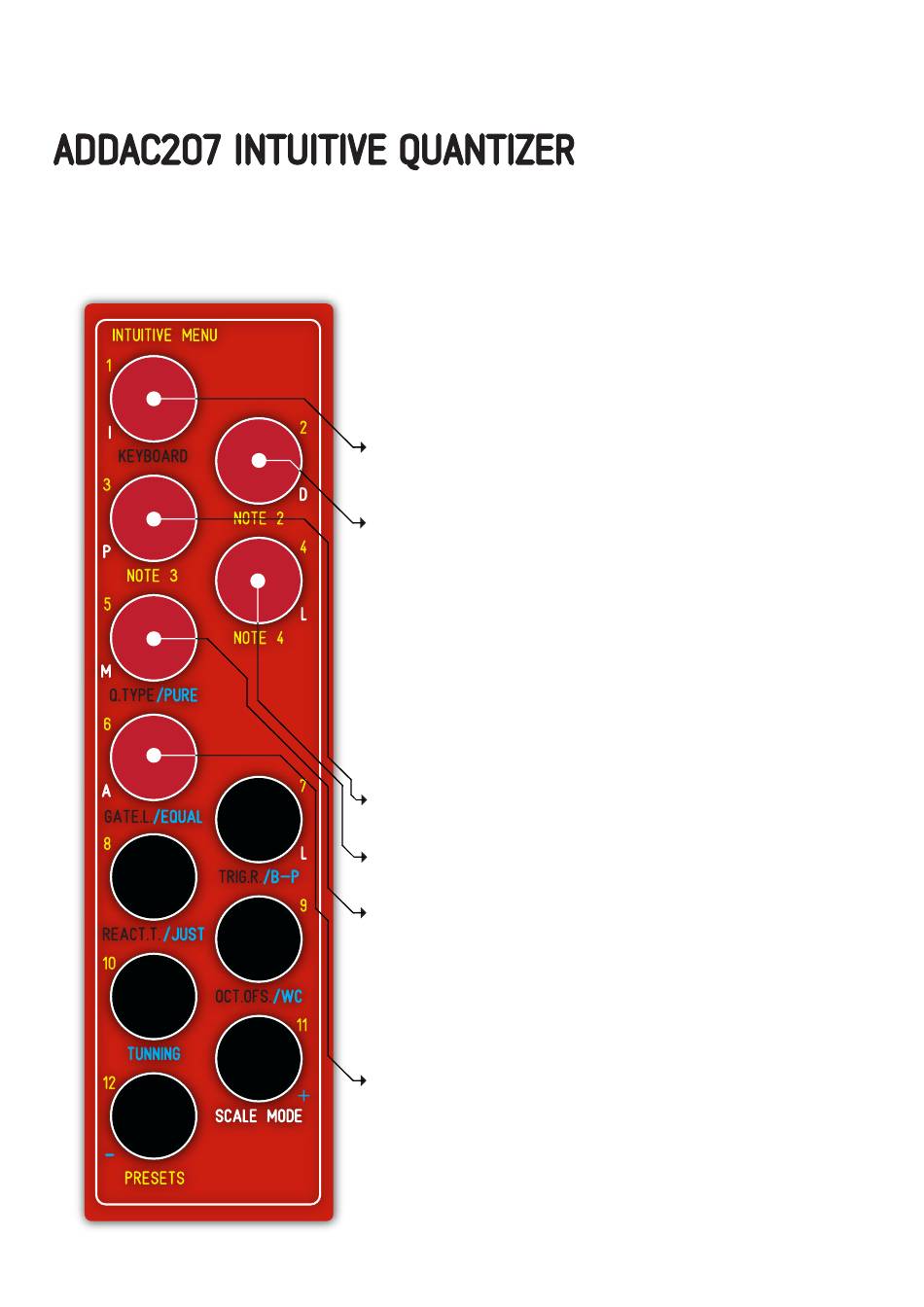

INTUITIVE MENU
Here's a complete description of the Menu functions:
BUTTON 1 (QUANTIZER / KEYBOARD)
Pushing this button for aprox. 1 second changes between QUANTIZ-
ER and KEYBOARD Mode.
BUTTON 2 = NOTE 2 (BUTTONS 1 to 12)
Pushing this button for aprox. 1 second will define the interval for
NOTE 2 or Quantizer output 2.
Intervals can be selected from buttons 1 to 12 referring to an
interval from 0 to +12. Major/Minor 3rds will be automatically
selected depending on the scale defined (assuming you choose
a 7 note scale).
In this window you'll see only one button lit indicating which
interval is selected.
Pressing a non-lit button changes the setting to that selection and
changes the lit key for visual feedback.
Pressing a lit key is the confirmation of the desired setting and it
automatically jumps back to the previous Main Mode (QUANTIZER /
KEYBOARD) window changing the leds as well.
BUTTON 3 = NOTE 3 (BUTTONS 1 to 12)
Same as NOTE 2 for Quantizer Output 3
BUTTON 4 = NOTE 4 (BUTTONS 1 to 12)
Same as NOTE 2 for Quantizer Output 4
BUTTON 5 = Q.TYPE = QUANTIZER TYPE (BUTTONS 3, 5 and 6)
Only Buttons 3, 5 and 6 can be selected in this window.
Quantizer Type defines how the quantization process occurs. There's
3 methods for Quantizing the input voltage to the closest note:
Above (BUTTON 3), Below (BUTTON 6) or if it omits any voltage that
is not in the scale range (BUTTON 5).
In this window you'll see only one of the 3 buttons lit indicating
which setting is selected.
BUTTON 6 = GATE L. = GATE LENGTH (BUTTONS 1 to 12)
Gate Length defines to size of the Gate Output from 10 to 10000ms,
selectable from buttons 1 to 12.
In this window you'll see only one of the buttons lit indicating
which setting is selected.
