OCT.OFS.- Octave Offset Operation
This setting is shared by all 4 Voices.
Default value is 0 Octaves Offset (Button 1).
The Minimum value for this setting is 0 Octaves (Button 1) and the maximum is +9
Octaves (Button 10).
This allows for negative voltages up to -5v to be quantized as well. In this case if
Oct.Ofs setting is set to 5 octaves -5v will be quantized to 0v, -4v to 1v and so on.
If Quantized Notes fall off the modules voltage range they will be quantized to the
lowest or highest note possible.

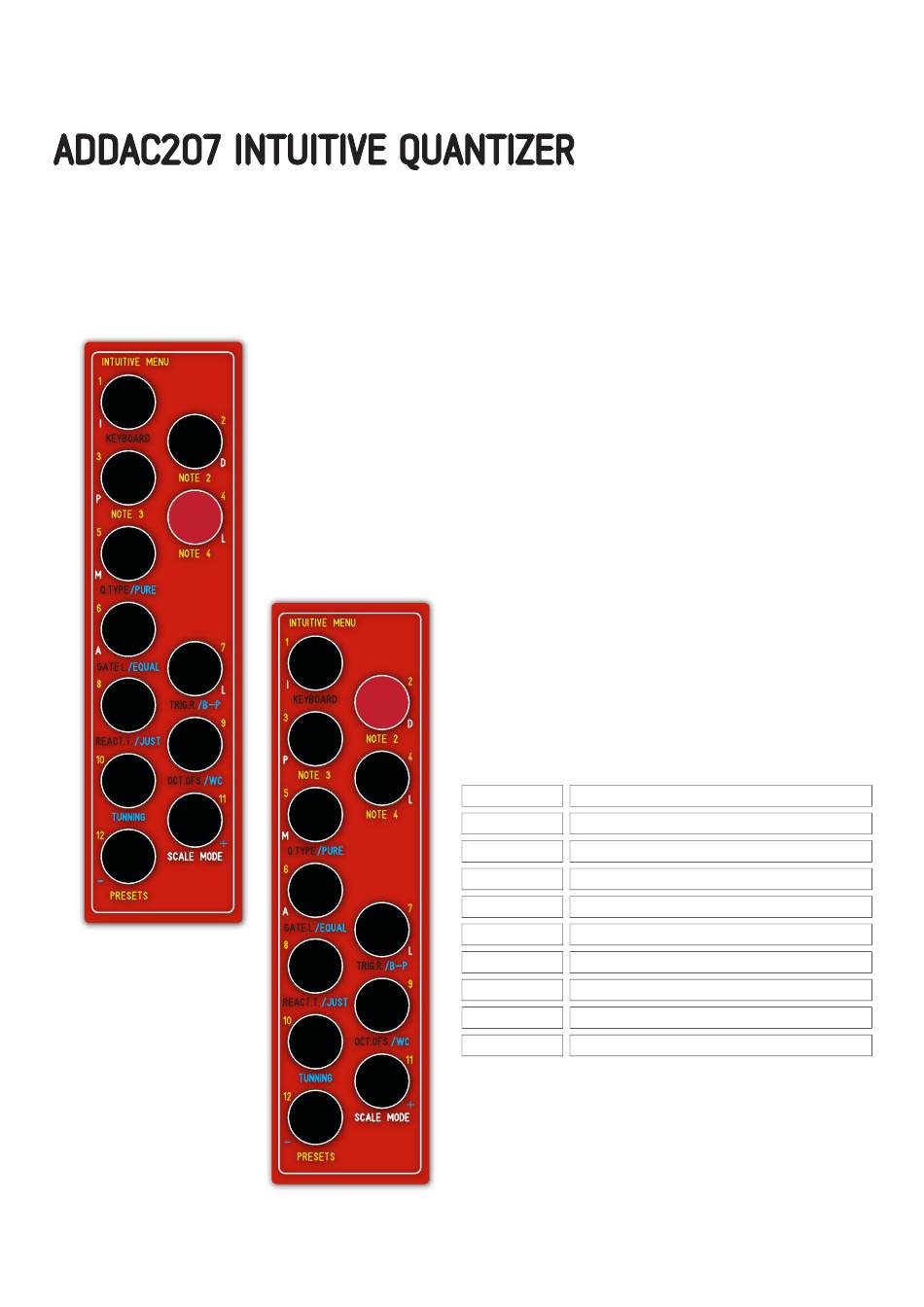

So let's imagine we have already pressed the
and entered in its Menu Window, the Menu Buttons already changed to the configu-
ration shown in image 1, displaying the default setting for Octave Offset or Button 1
(0 Octaves Offset).
Image 2
USER'S GUIDE
- Buttons 1 to 10
OCT.OFS.
If it's the User's wish to change the Octave Offset to any
other value he'll need to press the desired button twice.
Let's assume Button 2 (1 octaves Offset)
Once Button 2 is lit (image 2) pressing it once again
confirms the new setting and Exits the Menu Window.
Here's a Table With the Offset values for each Menu
Button:
BUTTON 1 0 Octaves
BUTTON 2 1 Octaves
BUTTON 3 2 Octaves
BUTTON 4 3 Octaves
BUTTON 5 4 Octaves
BUTTON 6 5 Octaves
BUTTON 7 6 Octaves
BUTTON 8 7 Octaves
BUTTON 9 8 Octaves
BUTTON 10 9 Octaves
Button for aprox. 1 second
