  • Page 2 So button 5-3 can be decoded as Firmware M3. After the 2 single leds blink the module will flash all buttons from the bottom to the top and will be ready to use. ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021...
  • Page 3 Welcome to: ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 PAGE INDEX OVERVIEW INTRODUCTION VCO’s SIMPLE SETUP QUANTIZER BABY STEPS QUANTIZER / KEYBOARD MODES KEY / SCALE SET & SETTINGS QUANTIZER VOICES INTUITIVE MENU 10-13. OVERVIEW 14-24. EXAMPLES - EX.I NOTES 2-3-4 - EX.II...

  • Page 4: Front Panel

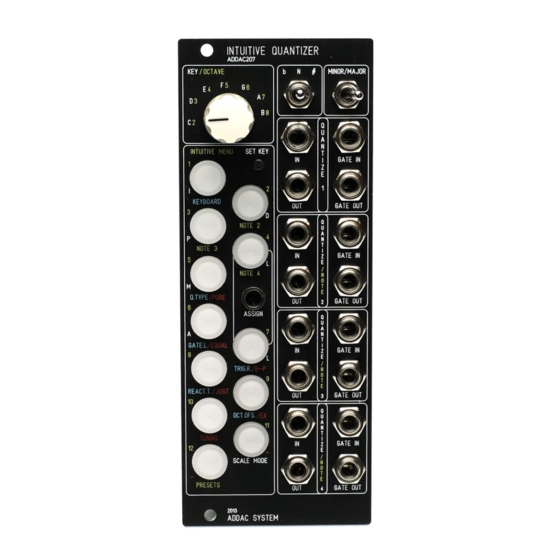

    ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 OVERVIEW FRONTPANEL: 1 Rotary Switch Button with 7 Positions 1 Toggle Switch Button with 3 Positions 1 Toggle Switch Button with 2 Positions 12 Illuminated Buttons 17 Jacks I/O FEATURES: 4 Voices of Quantization with 10 Octaves range Keyboard Mode, using Buttons as triggers User definable Scales: any scale is possible.
  • Page 5 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 INTRODUCTION We know this Guide isn’t not the best literature we could be reading but it will be extremely important to have an overall understanding all of the fundamental operational procedures and getting full potential out of So we fully recommend that you read the whole document at some point, most things you’ll only need...
  • Page 6 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 SIMPLE VCO’s SETUP So you just installed the Intuitive Quantizer in your system and powered it up for the first time! You saw the lights blinking showing the default factory presets after which the default C Major scale lits up on the keyboard area.
  • Page 7 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 QUANTIZER BABY STEPS So now that VCO’s are tuned we want to start quantiz- ing some signals. First we need to get out of Keyboard Mode back to Quantizer Mode. For this we need to press Button 1 for a couple seconds.

  • Page 8: Keyboard Mode

    ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 QUANTIZER / KEYBOARD The Intuitive Quantizer can be used in two Main Opera- tion Modes QUANTIZER and KEYBOARD selectable through the Menu and described further ahead in this document, for now let’s explain the...

  • Page 9: Scale Settings

    ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 KEY/OCTAVE The KEY/OCTAVE switch relates to the MAIN MODE selected. In QUANTIZER MODE it’s used to select the Key or Root Note In KEYBOARD MODE it’s used to select the Keyboard Octave SCALE SETTINGS With Scale Settings the user may set the scale to obtain.
  • Page 10 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 QUANTIZER VOICES 1-4 There are 4 Quantization Voices, these can be used either Independentely: when an Input is plugged in the IN Jack or related to Voice 1: when no input is connect- ed on either Voice 2, 3 or 4.

  • Page 11: Color Coding

    ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 INTUITIVE MENU OVERALL OPERATION PROCEDURES All Quantizer Operation Settings are defined through the same Push-Buttons as Scale selection and Keyboard. For Menu related Access the Push-Button needs to be pressed for aprox. 1 second after which the Leds change to give User the necessary feedback to acknowledge his input.
  • Page 12 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 INTUITIVE MENU (cont.) Here’s a complete description of the Menu functions: BUTTON 1 (QUANTIZER / KEYBOARD) Pushing this button for aprox. 1 second changes between QUANTIZ- ER and KEYBOARD Mode. BUTTON 2 = NOTE 2 (BUTTONS 1 to 12) Pushing this button for aprox.
  • Page 13 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 INTUITIVE MENU (cont.) BUTTON 7 = TRIG.R. = TRIGGER REPEAT (BUTTON 7) + VOICE 1 MASTER (BUTTON 2) Imagine an analog keyboard and you’re pressing C4 over and over, if this voltage would be sent to the Quantizer voltage input and it would quantize its output to C4 and output a Gate On, the second time you’d press the C4 key, if the Trigger Repeat setting was on, it...
  • Page 14 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 INTUITIVE MENU (cont.) 2. MOOG / BUCHLA Standard (BUTTON 10) In Eurorack we use the Moog 1v/octave standard but in Buchla land they use 1.2v/octave. Button 10 is an indicator for which standard the quantizer operates Pressing Button 11 &...
  • Page 15 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Ex. I INTUITIVE MENU Interval NOTE 2, 3 and 4 Operation BUTTON 1 Root - Buttons 1 to 12 This Menu Function Works the same way for NOTE 2, NOTE 3 and NOTE 4 Windows.
  • Page 16 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Ex. II INTUITIVE MENU Q.Type Q.TYPE - Quantization Type Operation BUTTON 3 ABOVE - Buttons 3, 5 and 6 This setting is shared by all 4 Voices. BUTTON 5 IGNORE Default value is Above Method (Button 3).
  • Page 17 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Ex. III INTUITIVE MENU GATE L.- Gate Length Operation BUTTON 1 10 ms - Buttons 1 to 11 and 12 This setting is shared by all 4 Voices. BUTTON 2 20 ms Default value is 40 milliseconds (Button 3).
  • Page 18 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Ex. IV INTUITIVE MENU Function TRIG.R. - Trigger Repeat Operation - Button 7 BUTTON 2 Voice1 Master This setting is shared by all 4 Voices. BUTTON 4 Transpose Tune Default value is Off.
  • Page 19 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Ex. V INTUITIVE MENU REACT.T. - Reaction Time Operation - Buttons 1 to 12 Default value is 700 miliseconds (Button 2). This setting is independentely saved and kept safe in non-volatile memory. This setting is used to adjust the way the Menu responds to the User input, how...
  • Page 20 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Ex. VI INTUITIVE MENU OCT.OFS.- Octave Offset Operation - Buttons 1 to 10 This setting is shared by all 4 Voices. Default value is 0 Octaves Offset (Button 1). The Minimum value for this setting is 0 Octaves (Button 1) and the maximum is +9 Octaves (Button 10).
  • Page 21 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Ex. VII - part A INTUITIVE MENU TUNING Operations - Buttons 1 to 4 and 6 to 12 This Menu Window has 4 different functions: Scale Temperament (Buttons 5 to 9) Independent Voice Fine Tuning (Buttons 1 to 4, 11 and 12)
  • Page 22 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Ex. VII - part B INTUITIVE MENU Function TUNING Operations BUTTON 5 Pure Set Scale Temperament Procedure - Buttons 5 to 9 BUTTON 6 Equal This setting is shared by all 4 Voices.

  • Page 23: Fine Tuning

    ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Ex. VII - part C INTUITIVE MENU Function TUNING Operations BUTTON 1 Tune Voice 1 FINE - TUNING Procedure - Buttons 1 to 4, 11 and 12 BUTTON 2 Tune Voice 2 Default value for Active Voice Fine Tuning is Voice 1 (Button 1).
  • Page 24 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Ex. VII - part D INTUITIVE MENU TUNING Operations MOOG/BUCHLA v/octave Procedure - Buttons 11 and 12 This setting is shared by all 4 Voices. Default value is Moog (1v/octave). TUNING Button (10) is the monitor for this setting: If Button 10 led is Off then 1v/octave Moog Standard is selected.

  • Page 25: Operation

    ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Ex. IX INTUITIVE MENU PRESETS Operation - Buttons 1 to 11 Default value is PRESET 1 (Button 1). Imagine the User has already pressed the PRESETS Button for aprox. 1 second and entered in its Menu Window, the Menu Buttons already changed to the configuration shown in image 1, displaying the default Active Preset (Button 1).
  • Page 26 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 ASSIGNING ASSIGN INPUT TO CONTROL MENU FUNCTIONS ASSIGN 1v/Octave CV Input This CV input can be assigned to control 8 of the Menu Functions. To do this the User needs to access the Assign Window momentarily pressing both Button 4 and 7 at the same time.
  • Page 27 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 TRANSPOSE OPERATIONS The ADDAC207 features 2 transposition methods: INPUT TRANSPOSE (Button 1 = C) 1v/Octave CV Input (0 to +5v range) If Assigned, this CV input allows a positive 1v/octave signal to transpose the channel’s input CV.

  • Page 28: Channel Input

    ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 CV INPUT TRANSPOSE METHOD Below you’ll find a table with 12 examples, each column is an example, in the top you can find the chan- nel’s CV input and on the bottom the CV input inserted into the assign input.
  • Page 29 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 SCALE TRANSPOSE METHOD Below you’ll find a table with 12 examples, each column is an example. In the top you can find the Channel CV input and on the bottom the CV input inserted into the Assign input.
  • Page 30 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 TUNING RESET Tuning Reset is the procedure where the module calibrate its 4 Voices to the 1v/octave standard. This procedure will overwrite the User’s Fine-Tuning settings but will not save itself to the non-volatile memory, so it won’t affect the User’s previously saved...
  • Page 31 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 REMARKS ON TEMPERAMENTS Temperaments are just a different way of tuning the intervals between notes. Our common Equal Temperament scale defines that every interval is Equal which translates to 1v/octave equals (1v/12notes) 0.08333333v between each note. This is refered to as the Interval Ratio.

  • Page 32: Non-Volatile Memory

    ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 Non-Volatile MEMORY TECH SPECS There are two different locations in memory: - Main Memory, stores overall settings - Presets Memory, stores 11 User Presets WHAT’S KEPT IN MAIN MEMORY MECHANICAL: Format: Eurorack Moog/Buchla...
  • Page 33 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 HELPFUL TABLES F# = TRIG.R. : Trigger Repeat NOTE 2/3/4 Interval A = Tunning Function BUTTON 1 Root BUTTON 1 Tune Voice 1 BUTTON 2 VOICE 1 MASTER ON/OFF BUTTON 2 BUTTON 2...
  • Page 34 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 MAJOR SCALES ADDAC SYSTEM page 33...
  • Page 35 ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021 NATURAL MINOR SCALES ADDAC SYSTEM page 34...
  • Page 36 For feedback, comments or problems please contact us at: addac@addacsystem.com ADDAC207 INTUITIVE QUANTIZER USER’S GUIDE Revision.05 April.2021...
