Altronix Pace1KRT Installation Manual page 3

Fig. 2
Pace1KR
Pace1KR - Receiver
UTP Receiver
Passes PoE/PoE+
RJ45 LEDs Yellow - Activity
Green - Speed
Green LEDs Link Status
Made in U.S.A.
www.altronix.com
Link
UTP Link Link
LED + – LED
PoE Powered
Switch or Midspan
(100m)
Maximum Length of Cable Type vs. Total Power Consumption:
Wire type
18 AWG
(2-wire, UTP)
16 AWG
(2-wire, UTP)
Note: Calculations based on 56VDC starting voltage from power source and accounts for a
10VDC voltage drop. IEEE standards voltage range requirement for powered devices are:
PoE (15W) - 37VDC to 57VDC, PoE+ (30W) - 44VDC to 57VDC)
Pace1KRT

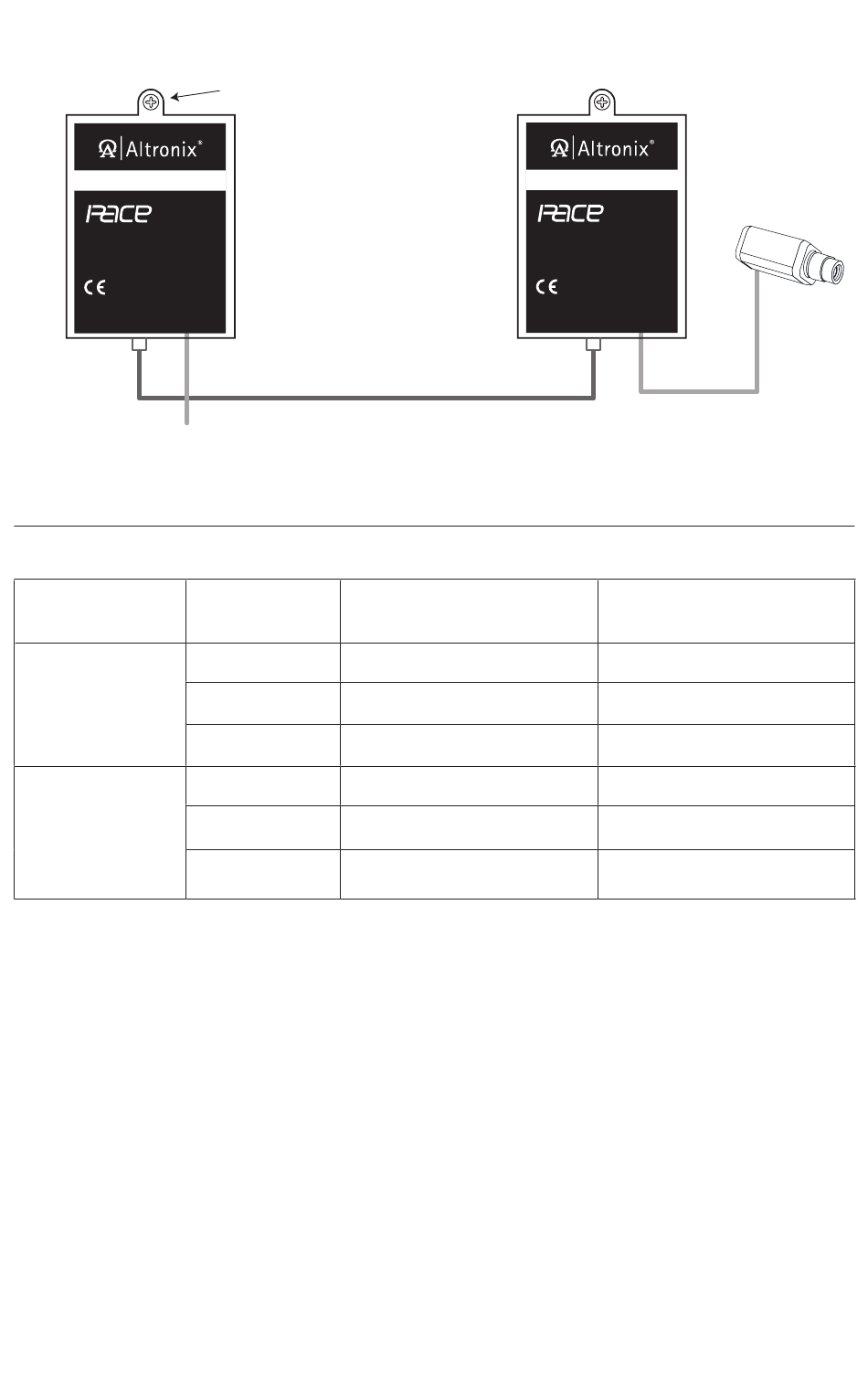

Single PoE Camera Connection:
Fig. 2a
Mounting Hole
PoE
Input
CAT5e
(or higher)
Total Power
Consumption
7.5W
15W
30W
7.5W
15W
30W
Pace1KT
PoE+ up to 1000m
18/2 AWG, UTP
Max.
Data Distance
1000m (3280 ft)
1000m (3280 ft)
1000m (3280 ft)
1000m (3280 ft)
1000m (3280 ft)
1000m (3280 ft)
Pace1KT - Transceiver
UTP Transceiver
Passes PoE/PoE+
RJ45 LEDs Yellow - Activity
IP Device
Green - Speed
Green LEDs Link Status
Made in U.S.A.
www.altronix.com
Link
UTP Link PoE
Link
LED
+ – LED Output
CAT5e or higher
(100m)
Power Distance
1996m (6548ft.)
998m (3274 Ft.)
269m (882 ft)
3169m (10396 ft.)
1584m (5196 ft.)
427m (1400 ft.)
PoE/PoE+
Device
Max.
