Altronix Pace1KRT Installation Manual page 2

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and
with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or
Recognized wire suitable for the application.
Pace1KR and Pace1KT are not intended to be connected to outside plant leads and should be
installed indoors within the protected premises. Pace1KR and Pace1KT are intended for indoor
use only.
1. Pace1KR installation:
a. Secure unit to the desired mounting surface with a proper fastening device utilizing the
unit's mounting hole (Fig. 2a, pg. 3). Unit should be mounted in proximity to ethernet
switch/network, NVR or video server.
b. Connect structured cable from ethernet midspan or endspan device to RJ45 jack marked
[PoE Input] (Fig. 2, pg. 3).
c. UTP / 2-wire: Connect UTP to connector marked [+, –] (Fig. 2, pg. 3).
2. Pace1KT installation:
a. Secure unit to the desired mounting surface with a proper fastening device utilizing the
case's mounting hole. Unit should be mounted in the proximity of camera/device.
b. Connect structured cable from IP camera/device to RJ45 jack marked [PoE Out] (Fig. 2, pg. 3).
c. Connect UTP to the connector marked [+, –] from receiver (Pace1KR) (Fig. 2, pg. 3).
Parameter
Connections
Input power
requirements
Indicators
Environmental
Conditions
Regulatory
Compliance
Weights (approx.) Product: 0.4 lbs. (0.18 kg) | Shipping: 1 lbs. (0.45 kg).

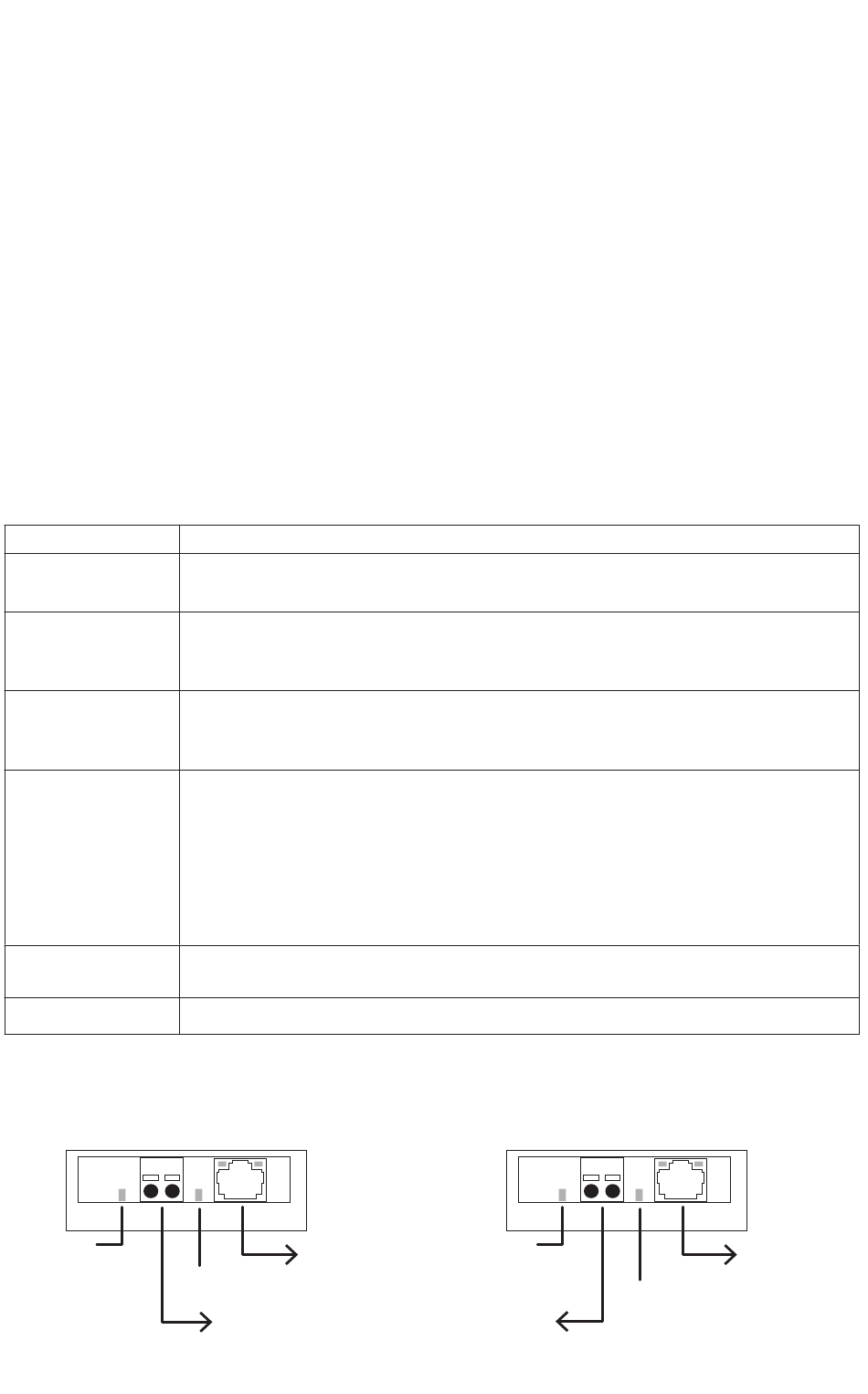

Fig. 1
LED indicates
PoE being
transmitted
to transceiver
- 2 -
Installation Instructions:
Technical Specifications:
Description
RJ45 for CAT5/6 or higher ethernet link.
UTP (2-wire) screw terminals to interconnect receiver/transceiver
Midspan or endspan port connected.
PoE compliant to IEEE 802.3af (15W) and
PoE+ compliant to IEEE 802.3at (30W)
Yellow (RJ45 connector):
Green (RJ45 connector):
Green Link LEDs:
Operating Ambient Temperature: UL60950-1
Pace1KR: – 20ºC to 49ºC (– 4ºF to 120.2ºF).
Pace1KT: For 15W:
For 30W:
Storage Temperature:
Relative Humidity:
Operating Altitude:
CE approved.
Pace1KR - Receiver
Structured Cable
(CAT5 or higher)
from Midspan/Endspan
LED indicates
Data Transmission
UTP link to Transceiver
On - Link, Off - No Link, Blinking - Activity.
On - 100Base-TX, Off - 10Base-T.
Link active
– 40ºC to 75ºC (– 40ºF to 167ºF).
– 40ºC to 49ºC (– 40ºF to 120ºF).
– 40ºC to 75ºC (– 40ºF to 167ºF).
20 to 85%, non-condensing.
– 304.8 to 2,000m.
LED indicates
PoE being
transmitted
to transceiver
UTP link from Receiver
Pace1KT- Transceiver
Structured Cable
(CAT5 or higher)
to PoE Camera/Device
LED indicates
Data Transmission
Pace1KRT
