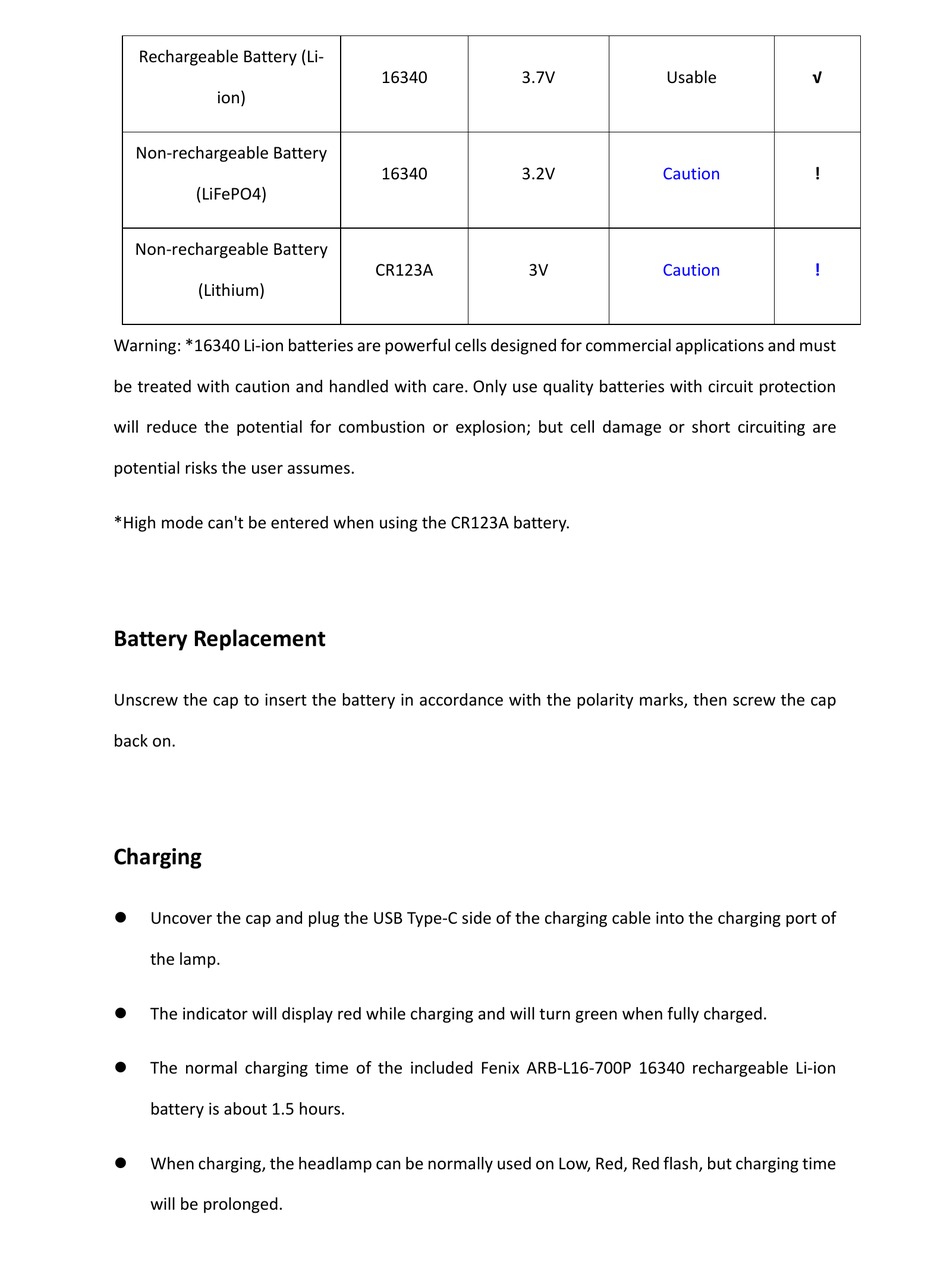

Rechargeable Battery; Battery Replacement; Charging - Fenix HM50R V2.0 User Manual

Rechargeable Battery (Li‐
ion)
Non‐rechargeable Battery
(LiFePO4)
Non‐rechargeable Battery
(Lithium)
Warning: *16340 Li‐ion batteries are powerful cells designed for commercial applications and must
be treated with caution and handled with care. Only use quality batteries with circuit protection
will reduce the potential for combustion or explosion; but cell damage or short circuiting are
potential risks the user assumes.
*High mode can't be entered when using the CR123A battery.
Battery Replacement
Unscrew the cap to insert the battery in accordance with the polarity marks, then screw the cap
back on.
Charging

Uncover the cap and plug the USB Type‐C side of the charging cable into the charging port of
the lamp.

The indicator will display red while charging and will turn green when fully charged.

The normal charging time of the included Fenix ARB‐L16‐700P 16340 rechargeable Li‐ion
battery is about 1.5 hours.

When charging, the headlamp can be normally used on Low, Red, Red flash, but charging time
will be prolonged.
16340 3.7V
16340 3.2V
CR123A 3V
Usable √
Caution !
Caution !
