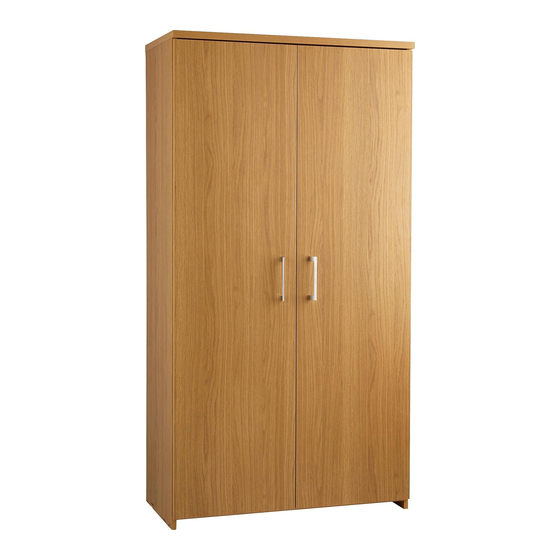

Walton - Tall Cupboard
Assembly Instructions -
Dimensions
Width - 80.5cm
Depth - 39cm
Height - 152.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
151/8113
MADE IN
BRITAIN
Issue 1 - 17/10/13
Advertisement
Related Manuals for Argos Walton 151/8113
Summary of Contents for Argos Walton 151/8113
- Page 1 Walton - Tall Cupboard Assembly Instructions - 151/8113 Please keep for future reference Dimensions Width - 80.5cm Depth - 39cm MADE IN Height - 152.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 17/10/13...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 43kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (D2280A) (802 x 390mm) Horizontal (D2283A) (767 x 366mm) Left Side Right Side (D2281A) (D2282A)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the left side 10mm Tap 2 wooden dowels into the left side Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels.
- Page 6 Assembly Instructions Step 3 Prepare the 2 horizontals Tap 4 wooden dowels into each of the 2 horizontals Insert 4 large locking Finished nuts into each of the front edge 2 horizontals Step 4 Join the right side and horizontals Push the 2 horizontals onto the right side Use a screwdriver to...
- Page 7 Assembly Instructions Step 5 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 2 large locking nuts fitted to each of the 2 horizontals Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
- Page 8 Assembly Instructions Step 7 Fit the top Push the top onto the assembly. Use a screwdriver to tighten the 4 large locking nuts fitted to the left side and right side Step 8 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by...
- Page 9 Assembly Instructions Step 9 Secure unit to a wall To prevent possible overbalancing we recommend that this unit is secured to a suitable wall by use of the metal bracket fitted Top of unit underneath the top Fixings are not supplied as they will need to suit the wall type, and the length of screw will...
- Page 10 Assembly Instructions Step 11 Fit the shelves Lower the 2 shelves down onto the shelf studs Step 12 Prepare the 2 doors Push fit 3 hinges into each of the doors Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees...
- Page 11 Assembly Instructions Step 13 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 12 To move door ‘in’ tighten screw C. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2917...
