Geeetech A30T User Manual page 51

enter the color selection interface, as shown in Picture (9-6). The color here should be
selected according to the actual filament color of each extruder, and then click "Select" to
confirm. After selecting corresponding color to each extruder, click the "Preview" button
below to display color change of the current configuration in the box on the right side of the
small window.
5) After configuring the parameters, click the "Mix Color" button to change the original
single-color model to a custom multicolor model. As shown in Picture (9-7).
6) Click "Export G" to export and save the mixed color model, which is named with a suffix
"_colored". Copy the file to the TF card and insert it into the machine to start printing. See
picture (9-8, and 9-9). The processed model is shown in picture (9-10).
Shenzhen Getech Technology Co.,Ltd

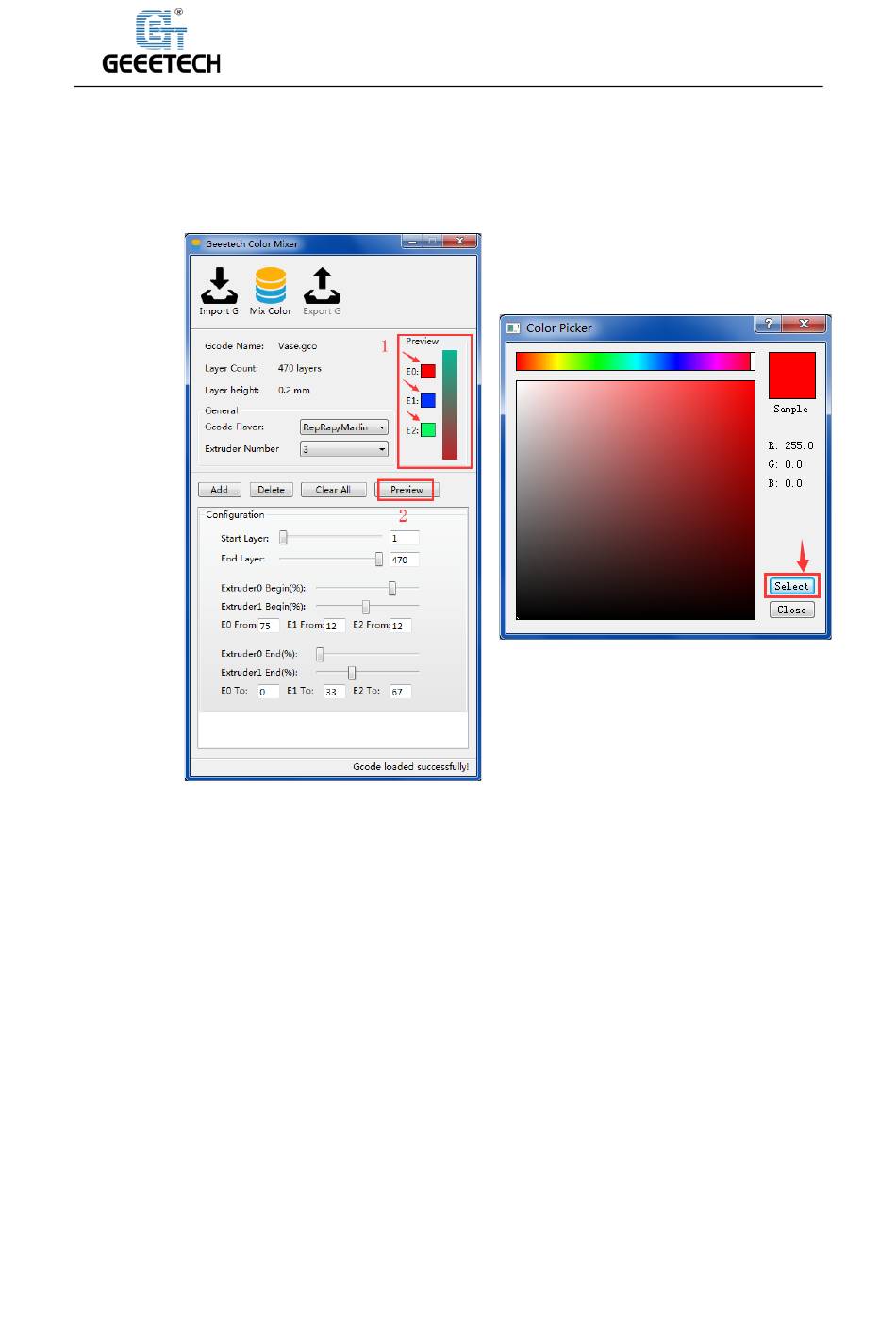

（Picture 9-5） （Picture 9-6）
51
