Shutting Off Heater
1. Turn control knob clockwise
OFF position.
2. Turn off all electric power to the appliance
if service is to be performed.
1. Remove lower front panel.
2. Follow steps 1 through 5 under Lighting
Instructions, page 19 or 20.
3. With control knob pressed in, strike match.
Hold match to pilot until pilot lights.
4. Keep control knob pressed in for 30 sec-
onds after lighting pilot. After 30 seconds,
release control knob. Follow step 8 under
Lighting Instructions, page 19 or 20.
5. Replace lower front panel.
200213-01C
OPERATION
TO TURN OFF GAS TO APPLIANCE
to the
MANUAL LIGHTING PROCEDURE
(ALL MODELS)
www.usaprocom.com
Shutting off burner only
(pilot stays lit)
Turn control knob clockwise
PILOT/IGN position.
Ignitor
Natural Gas
Electrode
Burner
Pilot Air
Inlet Hole

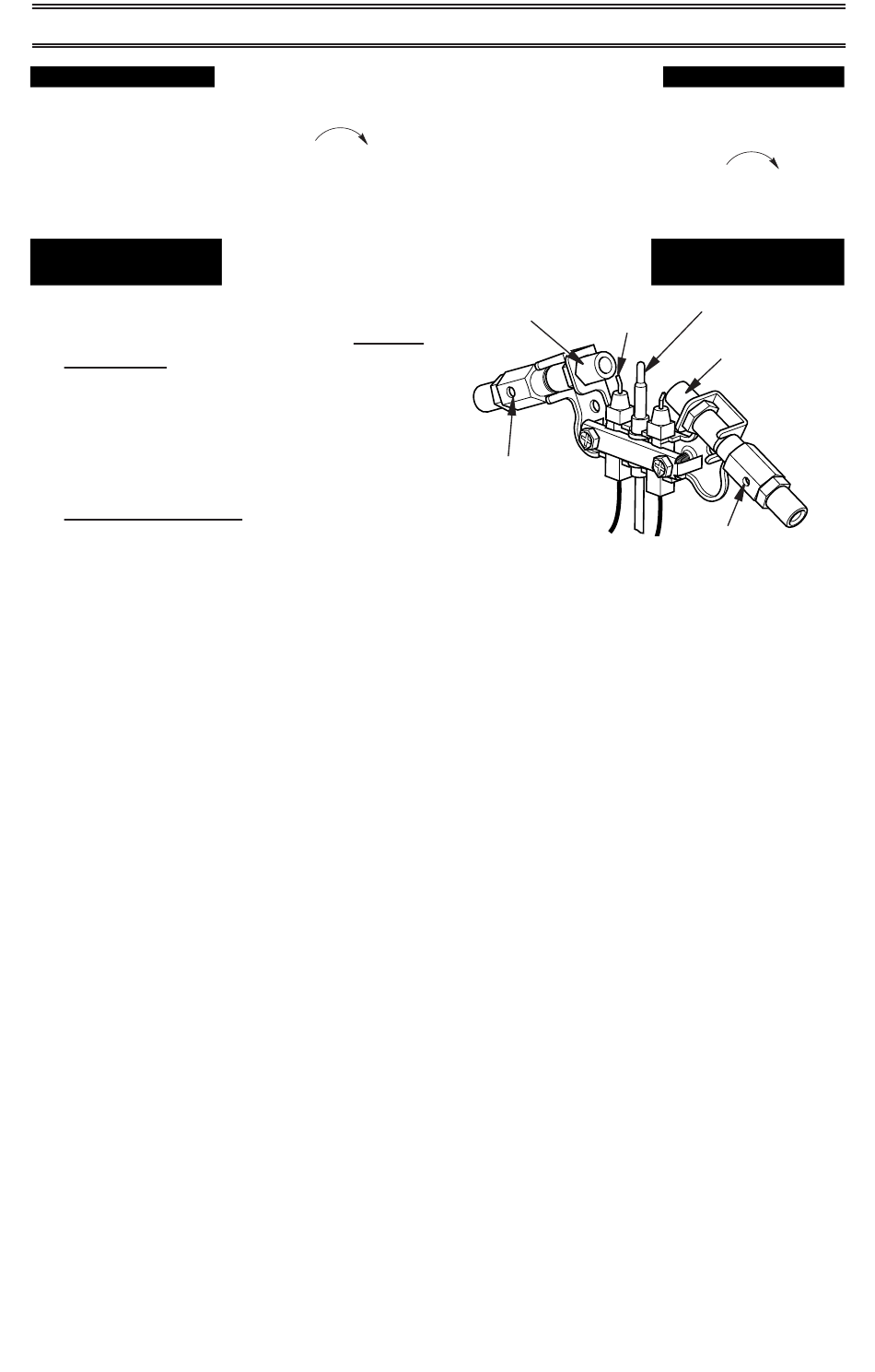

Figure 22 - Pilot Assembly
to the
Thermocouple
Propane
Gas Burner
Pilot Air Inlet Hole
