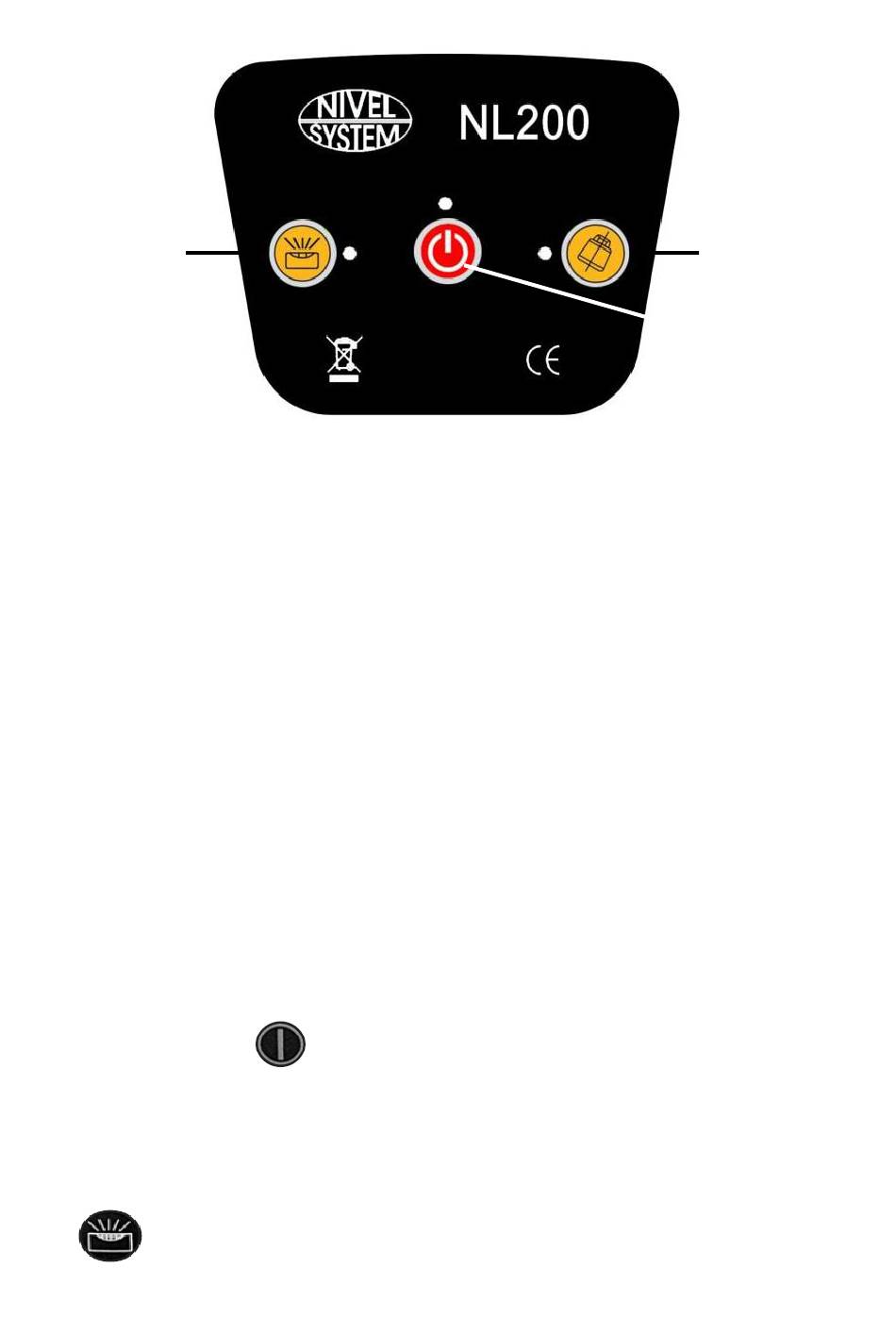

CONTROL PANEL

4, 5 6
1, 2, 3
Description of buttons and functions:
1) ON / OFF switch
- Turns the device on and off
2) LED declaring the power state of the instrument
- Lights when the device is turned on
3) LED of discharged batteries
- While the LED is blinking, the batteries should be plugged in to charge.
4) LED of manual mode
- LED lights when the unit is in manual mode
5) Manual / Automatic mode button
- Changes the instrument leveling from automatic to manual mode
6) ADS System (when ADS system is switched on - the LED flashes slowly)
- Too large inclination of the instrument or unwanted movement / strike of the instrument will
cause the LED will blink quickly - warning the user about disheveling of instrument
WORKING WITH LASER LEVEL
Turning on the power
On the front panel press . The instrument will level by itself and the power LED lights up.
Press the button again to turn off the power.
Once leveled up, the laser LED stops blinking and the laser head rotates at a speed of 600 rpm.
If instrument will be is set inclined more than ± 5 °, manual mode LED will start to blink.
Warning: If the unit will not level-up in time longer than 5 minutes, turn off and turn on the laser
level again.
Press to set instrument in manual mode.
