Summary of Contents for PXM PX863

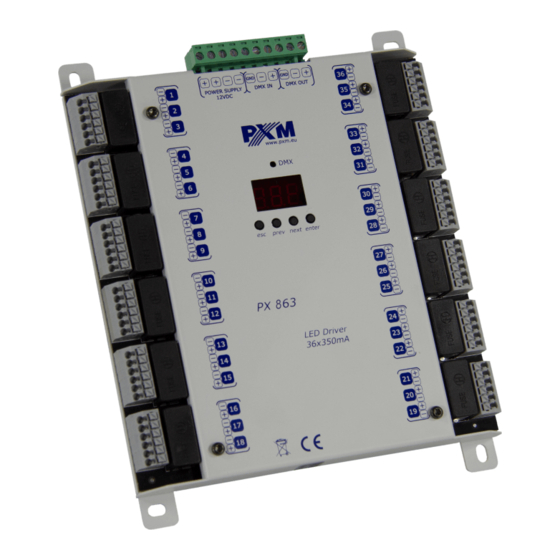

- Page 1 PX863 Driver LED C.C. 36 x 350mA/cc User manual...
-
Page 2: Table Of Contents
8 Programming....................28 9 Connection scheme.................29 10 Dimensions.....................30 11 Technical data..................31 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-0 BDO register number 000005972 www.pxm.pl... -
Page 3: Description
The additional advantage is implementation of modern technology “flicker free” i.e. a possibility to select frequency of 1.3kHz. Applying it, the PX863 driver can be successfully used in installations created for the needs of the television industry. Moreover, the RDM protocol was implemented in the PX863. -
Page 4: Safety Conditions
Safety conditions The PX863 is a device powered with safe voltage up to 12V DC; however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 12V DC (stabilized voltage) with current-carrying capacity compatible with technical data. -
Page 5: Connectors And Control Elements
Connectors and control elements Driving outputs: 36 (OUTPUTS) LED display DMX OUT Driving buttons DMX IN Diode of DMX signal Power supply... -
Page 6: Dmx Signal Connection
DMX signal connection PX863 must be connected to DMX line in series. This means that DMX IN terminals in the device must be provided with a driving cable, and then from DMX OUT connector the driving cable must be provided to other DMX receivers. - Page 7 setting the scene program no. 17 setting of DMX address for the first channel keeping the last value (in the no signal mode) driving in a 36-channel mode driving in a 36-channel mode plus dimmer the program playing speed liquidity level of changing the steps in the program setting of brightness of the program frequency of PWM signals low frequency of PWM outputs...
-
Page 8: Device Programming
setting blue balance preview of current temperature inside the device number of the version of the installed software restore default device settings menu confirmation of restoring default settings message confirming restoration of default settings service mode first channel in the service mode setting the inverted characteristics of a dimmer channel setting the normal characteristics of a dimmer channel Device programming... -
Page 9: Dmx Addressing
6.2 DMX addressing The menu of the PX863 device allows to set the DMX address of the device between 1 and 512. It is possible to set an address individually Ind for one of thirty-six outputs (C01 – C36), in group ALL for all channels... - Page 10 ON AN INDIVIDUAL BASIS Using this menu you can set a DMX address individually for the 36 outputs. After you select Ind in the main menu, press “enter” to confirm your selection. Using the “prev” or “next” keys, select the output you want to configure (C01 –...
-
Page 11: Operation Mode
6.3 Operation mode The PX863 driver can work in the effect mode (EFF), the 36-channel one (36) or the 36-channel plus dimmer one (36d). In order to select the mode, enter Cbn function and then select 36 for the 36-channel mode or EFF for the 4-channel mode (effect) and confirm with the key "enter". - Page 12 The description of operation of EFF 4-byte (effective) mode The description of the effective mode channels CHANNEL 4 CHANNEL 2 CHANNEL 3 CHANNEL 1 – EFFECT BRIGHTNES SPEED FADE < 0 – 12 > Program 1 < 13 – 25 > Program 2 <...
-
Page 13: Response To The Lack Of Dmx Signal
CHANNEL 1 – select the effect CHANNEL 2 – setting of speed (higher value – faster changes) CHANNEL 3 – setting of fade (higher value – smoother transition) CHANNEL 4 – setting of brightness (higher value – stronger light) sign (“x”) – means the ability to drive the parameter of the selected effect sign (“–”) –... - Page 14 ENTER 2 x NEXT PREV ENTER ENTER ENTER NEXT NEXT NEXT PREV ENTER NEXT NEXT PREV ENTER PREV ENTER ENTER ENTER NEXT NEXT NEXT NEXT PREV PREV ENTER ENTER NEXT NEXT NEXT NEXT P01 – P18 – you can use 18 ready programs. For each of them there is a possibility to set a playback speed SPd (the value from 0.1 and 99.9 seconds), smoothness of step changes in the program FAd (from 0 i.e.
-
Page 15: The Smoothing Function
– connecting all the outputs (the value from 1 to 99.9 seconds) – complete switch-off of outputs – maintaining the last value on the channels 6.5 The smoothing function The device has also the smoothing option. Smoothing allows for smooth brightness and color changes. -
Page 16: Frequency Of Pwm Signals
6.6 Frequency of PWM signals The Frq function allows you to set the base frequency to drive LEDs. This function is extremely useful for applications in the television industry. By using the "flicker free" technology, you can avoid an unpleasant image flicker effect caused by a lack of appropriate synchronization of LED driving signal. -
Page 17: Minimum Level Of Brightness
6.7 Minimum level of brightness The function of setting the minimum level of brightness (OFS) has been implemented in the PX863 device, which can be set in the range 0 – 100. The way it functions is presented in the diagram below:... -
Page 18: White Balance
Sometimes, there may be problems achieving white color on the LEDs of RGB series. This may be due to the use of diodes with different technical parameters. For this reason, the PX863 module is equipped with a white balance function (bAL). This option allows you to select the proper color temperature for the full control of all outputs (white color) in the range of 0 –... -
Page 19: Screen Saving
NEXT 6.10 Temperature The PX863 was equipped with the possibility to check the temperature inside the device. If the temperature exceeds 70°C, there is a linear limitation of the device power until the outputs will be switched off completely when the temperature reaches 90°C. -
Page 20: Default Settings And Memory Error
• ENTER In order to make use of this option, disconnect the PX863 from the mains supply. Before reconnecting it to the mains supply, the key "prev" should be pressed and held. Then, after switching on the message dFI will appear on the screen of the device (while turning the power supply on to the moment of displaying the message dFI the key "prev"... -
Page 21: Software Version
Err message – memory error The device is equipped with a built-in memory work control function. If there are problems with the memory operation on the PX863 display, the Err message appears – memory error. In this situation, select the “enter” key. The device will reload the default configuration and upload it to the memory. -
Page 22: Service Mode
normal position reversed screen In order to restore the standard setting, hold the middle buttons for approximately 3s. 6.14 Service mode The service mode allows to turn the chosen channel on for 100% quickly. NOTE! The input in the service mode disconnects DMX control automatically. ESC + PREV NEXT In order to switch it on, go to the initial menu and... -
Page 23: Rdm Description Of Available Parameters
RDM description of available parameters The PX863 supports the DMX – RDM protocol. DMX protocol allows only of a one-way data transmission, while its extension the RDM protocol can transmit information in two directions. This makes possible to simultaneously send and receive information, and hence the possibility of monitoring activities of the compatible devices. - Page 24 Parameter name Description DEVICE_MODEL_ 0x0080 device description, e.g. name DESCRIPTION manufacturer description, MANUFACTURER_LABEL 0x0081 e.g. name additional device description; It is possible to enter an additional DEVICE_LABEL * 0x0082 device description using up to 32 ASCII characters. DMX_PERSONALITY 0x00E0 DMX operational mode DMX_PERSONALITY_ description of individual 0x00E1...
- Page 25 (or fading) DMX control signal. The NOS[1-22]: 0x801C scene saved in the PX863 is set for P1-18|SC|ON|OFF/HLD * the value of 19, all the outputs are connected with the maximum value (ON) for the value of 20, the...
- Page 26 Parameter name Description setting the transition smoothness between next steps of the program; The minimum value is 0 (the abrupt PROGRAM_FADE * 0x8026 transition), and the maximum value is 100 (the completely smooth transition). The default value is 100. frequency of refreshing LED diodes;...
- Page 27 Parameter name Description value of control level of red channel balance; Minimum value is 0 and maximum is 100 (the value equals to BALANCE RED * 0x8011 percentage of control level). For the maximum value (100) the LEDs work with maximum brightness. Default value is 100.
-
Page 28: Programming
Programming ENTER ENTER NEXT NEXT ENTER ENTER NEXT NEXT NEXT NEXT PREV PREV NEXT ENTER ENTER ENTER ENTER NEXT NEXT NEXT ENTER NEXT NEXT NEXT NEXT ENTER NEXT NEXT NEXT ENTER ENTER NEXT NEXT NEXT NEXT ENTER NEXT NEXT NEXT ENTER NEXT NEXT... -
Page 29: Connection Scheme
Connection scheme controller e.g. PX333 power supply 12V DC... -
Page 30: Dimensions
10 Dimensions... -
Page 31: Technical Data
11 Technical data type PX863 DMX channels 36 + dimmer (optional) support for the RDM protocol power supply 12V DC max. 3.8A (in each channel only one LED) max. current consumption max. 12A (in each channel three LEDs) power consumption without load 0.5W... - Page 32 Podłęże, 16.04.2021 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Driver LED C.C. 36 x 350mA/cc Product code: PX863 Meets the requirements of the following standards, as well as harmonised...
