Summary of Contents for PXM Merger DMX
- Page 1 PX173 Merger DMX User manual...
-
Page 2: Table Of Contents
5.4 Menu scheme......................10 6 Connection scheme.................11 7 Dimensions....................12 8 Technical data..................12 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-2 BDO register number 000005972 www.pxm.pl... -
Page 3: Description
DMX circuit. Merger DMX is a device that allows to add together the DMX signals – get data from several inputs, set them in correct order and send to single 512- channel output. -
Page 4: Safety Conditions
Safety conditions PX173 is powered with safe voltage 12 – 24V DC; however, during its installation and use the following rules must be strictly observed: 1. The device may only be connected to 12 – 24V DC current with current-carrying capacity compatible with technical data. 2. -

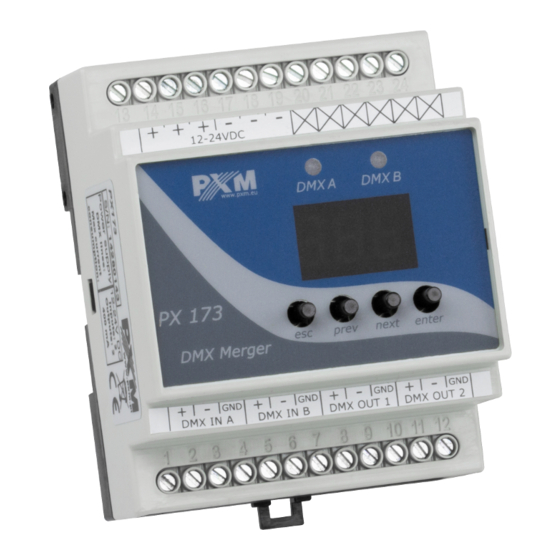

Page 5: Connectors And Control Elements
Connectors and control elements Power supply DMX A DMX B DMX signal control diodes PX173 Display DMX Merger DMX-512 Control Inputs buttons DMX-512 Outputs Rules of creating DMX installation DMX-512 is a typical installation in series. That is why all the receiving devices (effects) are always equipped with two sockets for DMX connection: one input socket (“IN”) and one output socket (“OUT”). - Page 6 There are some situations, when the DMX line must be spitted (e.g. to save on the cables). In such case you need to apply a device called DMX Splitter. Dimmpack 12 x 2300 W SCANNER BLACKOUT POWER PROGRAMMING AUTO CONTROL PROGRAM SCENE SAVE...
-
Page 7: Programming
Programming The point of Merger programming is to define a number of DMX addresses and the number of data in the input lines, and determining the dependence that occur between them. In a basic operation mode the run inscription displayed. To enter the programming mode, press the enter key. 5.1 Button features –... -
Page 8: Designation Of Displayed Messages
5.3 Designation of displayed messages Merger basic operation mode Output 1 programming Number of the first summed channel of the A input Number of the summed channels from the A input Number of channel on the output 1, where the first (selected in AIn) channel is going to get Number of the first summed channel of the B input Number of the summed channels from the B input... - Page 9 The A input is sent to the output only. The B input is ignored. The B input is sent to the output only. The A input is ignored. Regardless of both inputs, zero values are sent do the output Regardless of both inputs, all declared output channels are controlled at 100% Defines the number of channels sent to the output.
-
Page 10: Menu Scheme
5.4 Menu scheme ENTER ENTER ENTER NEXT NEXT NEXT PREV ENTER NEXT ENTER NEXT NEXT ENTER NEXT NEXT PREV ENTER NEXT ENTER NEXT NEXT ENTER NEXT NEXT NEXT NEXT NEXT NEXT NEXT NEXT NEXT NEXT NEXT NEXT NEXT NEXT NEXT NEXT NEXT NEXT... -
Page 11: Connection Scheme
Connection scheme NOT CONNECTED DC OK DMX A DMX B power supply 12-24 V DC PX173 e.g. DR-15-12 DMX Merger PRESET A MASTER PX015 Terminator Chaser Scene % 100 PRESET B / MEMORY PRESET Opera 100 % PUSH CHASER SPEED Flash PRESET MEMORY... -
Page 12: Dimensions
Dimensions Technical data type PX173 power supply 12 – 24V DC DMX I / O channels 512 / 512 DMX I / O lines 2 / 2 power consumption max. 5W output sockets screw terminals weight 0.15kg width: 70mm dimensions height: 85mm depth: 60mm... - Page 13 Podłęże, 05.06.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: Merger DMX Product code: PX173 meets the requirements of the following standards, as well as harmonised standards: PN-EN IEC 63000:2019-01...
