PXM PX255 User Manual

Dmx/dali/dmx interface
Hide thumbs Also See for PX255:
Table of Contents

Advertisement

Quick Links

Download this manual
PX255
DMX/DALI/DMX
Interface
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX255 and is the answer not in the manual?

Questions and answers

Related Manuals for PXM PX255

Summary of Contents for PXM PX255

  • Page 1 PX255 DMX/DALI/DMX Interface User manual...

  • Page 2: Table Of Contents

    8 DMX signal connection................26 9 Connection scheme.................27 10 Dimensions.....................28 11 Technical data..................29 Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik sp.k. Podłęże 654 tel. +48 12 385 83 06 32-003 Podłęże mail: info@pxm.pl Rev.1-1 BDO register number 000005972 www.pxm.pl...

  • Page 3: Description

    DALI device operating in the protocol DMX-512 standard. According to DALI specification, the PX255 can control up to 64 DALI devices (such as ballasts). A menu of the PX255 allows to address individual lamps or groups of devices, user can create up to 16 groups.

  • Page 4: Safety Conditions

    5. All repairs and connections of outputs or DMX signal can only be made with power off. 6. PX255 should be strictly protected against contact with water and other liquids. 7. All sudden shocks – particularly dropping – should be avoided.

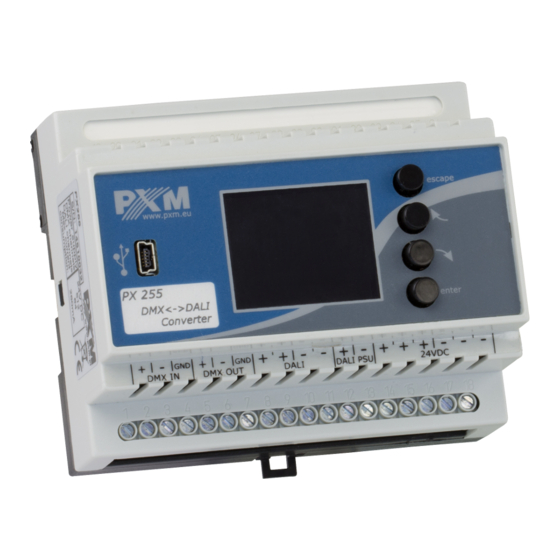

  • Page 5: Connectors And Control Elements

    Connectors and control elements 1. DMX-512 input 2. DMX-512 output 3. DALI input 4. DALI power supply 5. Power supply DALI <-> DMX 6. Control buttons Converter 7. Display 8. USB input Navigating the menu Navigating the menu of the device allow programmable buttons. Every button is described on the right side and their use is as follows: –...

  • Page 6: Use Of The Device

    “+” or “-” using the key. After that you need to save the settings before going level up, this will allow storing value in memory of the PX255. To do this, after moving to the screen button you need to push enter button.
  • Page 7 Description of information showed on Summary screen window: view of a display on the left side (DALI to DMX mode): white bars • correspond to the values of virtual ballast brightness transmitted onto the DMX-512 protocol. Height of bars represents the value of the DMX signal on each channel (full height is 255, no bar means 0).

  • Page 8: Main Menu

    • DMX-512 protocol mode When the PX255 is working in mode DALI to DMX-512 signal conversion it simulates the work of ballast (virtual ballast) allowing to any DALI controller identification of devices on the DALI line, thus sending messages to the busbar.

  • Page 9: Programming Device Settings

    Programming device settings 7.1 DALI After selecting DALI sub-menu a user will see another window. Available options allow to menage all the options associated with the DALI protocol. The picture below shows the list of available options. To choose one of them you need to select appropriate option with buttons and confirm the selection by pressing enter button.

  • Page 10: Ballasts Settings

    Consecutive found ballasts are marked with lighting bulbs symbols that are visible next to the number of ballast. The ballast marked with with a question mark sign are not found by the PX255. The device supports up to 64 ballasts (according to DALI protocol specification). Only in recognized ballasts user can change parameters.
  • Page 11 The user may use the following editable parameters: Fade rate – range 1 – 15; • The number of steps needed to achieve the maximum level of brightness Fade time – range 0 – 15; • The transition time between the levels of brightness: ◦...
  • Page 12 254 – the brightness level of the scene, 255 – the scene is not set. Scenes are parameterized for each ballast separately by DALI controller. PX255 allows to make changes in the brightness of the scene set in the ballast. You can not select which scene will be switched on by the controller.

  • Page 13: Ballasts Reset

    Ballast fail – values: Yes / No; • This indicates that the lamp responds an error Power On Event – values: Yes / No; • Displays the lamp reports that it has been switched on Limit error – values: Yes / No; •...

  • Page 14: Ballasts Initialization

    (in range Adr.00 to Adr.63). The device is finding ballasts separately, and each should be addressed individual. In case you choosing Auto option, the PX255 automatically assigns the next found ballasts addresses (00 to 63). 7.1.4 Number of ballasts...

  • Page 15: Number Of Virtual Ballasts

    7.1.5 Number of virtual ballasts This menu is responsible for the amount of simulated virtual ballast by PX255. This parameter is important for devices operating in DALI to DMX-512 protocol conversion mode. According DALI protocol the maximum number of ballasts is limited to 64. The user in this menu can further reduce the number of such ballast to zero.
  • Page 16 also possible to allocate one group to selected one DMX channel. In addition, the last option on the menu list i.e. All ballasts < DMX--- allows to set all DALI ballasts to one selected DMX channel. To change the default values follow these steps: select a specific ballast using buttons and confirm by pressing enter button.

  • Page 17: Dali>>>Dmx (Dali To Dmx) Patching

    7.3 DALI>>>DMX (DALI to DMX) patching This option allows to enter the converted brightness value of the virtual ballast onto a given DMX channel. First of all, you can change the virtual DALI ballast address with the specified number, which is assigned to the selected channel DMX.

  • Page 18: Screensaver

    We use the name “virtual ballast” due to the need of simulations by the PX255 the real ballasts. This allows the correct operation of the protocol conversion mode from DALI to DMX-512. 7.4 Screensaver In this menu it is possible to activate the screensaver mode after a time period of inactivity (not pressing any of programming button in PX255).

  • Page 19: Dmx Out Settings

    After selecting a sub-menu DMX Out Settings on the screen will show up the currently set parameters of DMX signal. This menu allow to replace the parameters of the DMX-512 signal sent from a device. Default in the PX255 are set values visible below.
  • Page 20 start data stop stop one frame 44 microseconds Because one frame contains full information about the DMX channel, to send all of 512 channels we need 512 frames. However, the receiver need to recognize when the entire transmission starts (i.e. which channel is first). That is way the transmission begins with the signal called BREAK.
  • Page 21 When you send a zero byte controller starts to send bytes with data, starting from the content of the first channel. The minimum number of channels permitted by the standard is 24 and a maximum 512. This means that even if we have a simple 6-channel lam controller, the transmitter still have to send 24 DMX channels.
  • Page 22 In the most applications a one of the first two solutions are used or the user is allowed to select the one of the options with appropriate software. Due to the lack of compliance with the DMX-512 standard of multiple devices available on the market below options allow to select appropriate parameters of the output DMX signal to a specific device.
  • Page 23 2. MAB Time (Mark After Break) is the interval time that occurs in each package according to the standard DMX-512. The minimum value is 16 microseconds. Remember to save values using floppy disc button and confirm with enter 3. MBF (Mark Between Frame) – the amount of time (if any) between the end of one frame (end of the 2 stop bit) and the start of the next –...

  • Page 24: Input Dmx Preview

    5. Channels number – using this feature, you can limit the number of channels sent from PX255. The minimum value is 24 channels and the maximum is 512 (default). 7.6 Input DMX preview This menu allows to check the current DMX signal received by the PX255.

  • Page 25: Language

    DMX channels are described on the left side, respectively 1, 129, 257, 385 for subsequent lines. In addition, each line is divided by dots, where red means another ten channels, and green additional 100 channels bigger value. 7.7 Language Language settings allows to change the menu language. To do this select appropriate language using buttons and press enter.

  • Page 26: Dmx Signal Connection

    PX255 have to be connected to DMX line in serial mode, with no branches on DMX control cable. That means that DMX line, from the signal source, must be connected to DMX IN pins of PX255 and later, directly from DMX OUT pins to the next device in DMX chain.

  • Page 27: Connection Scheme

    Connection scheme DALI <-> DMX Converter 24V DC power supply DC OK DMX controller DALI bus Ballasts Next DMX devices (e.g. lamp)

  • Page 28: Dimensions

    10 Dimensions DALI <-> DMX Converter 58 mm 105 mm...

  • Page 29: Technical Data

    11 Technical data type PX255 power supply 24V DC DMX input 1 (512 channels) DMX output 1 (512 channels) DALI channels virtual DALI ballasts number of device groups power consumption max. 7W 10V output 0,1mA output connections terminal blocks, USB weight 0.2kg...
  • Page 30 Podłęże, 23.05.2019 DECLARATION OF CONFORMITY PXM Marek Żupnik spółka komandytowa Podłęże 654, 32-003 Podłęże we declare that our product: Product name: DMX/DALI/DMX Interface Product code: PX255 meets the requirements of the following standards, as well as harmonised standards: PN-EN IEC 63000:2019-01...
