- Page 1 PX173 Rail DMX Merger Manual...
-
Page 2: Table Of Contents
8. Technical specification................ 9. Declaration of conformity..............Manufacturer reserves the right to make modifications in order to improve device operation. tel.: (+48 12) 626 46 92 PXM s.c. fax: (+48 12) 626 46 94 ul. Przemysłowa 12 E-mail: info@pxm.pl 30-701 Kraków, Poland... -
Page 3: General Description
1. GENERAL DESCRIPTION The DMX-512 standard is a protocol that defines the serial control data transmission for 512 channels. Many of the produced controllers does not use the full packet of 512 addresses and sends out the data for a lesser number of channels. In some installations, where a few of such controllers operate, there is a need to "sum up"... -
Page 4: Rules Of Creating A Dmx Installation
3. RULES OF CREATING DMX INSTALLATION DMX-512 is a typical installation in series. That is why all the receiving devices (effects) are always equipped with two sockets for DMX connection: one input socket ("IN") and one output socket ("OUT"). The signal from the controller gets to the first device and then, from its output, to the second, etc. -
Page 5: View Of The Front Panel

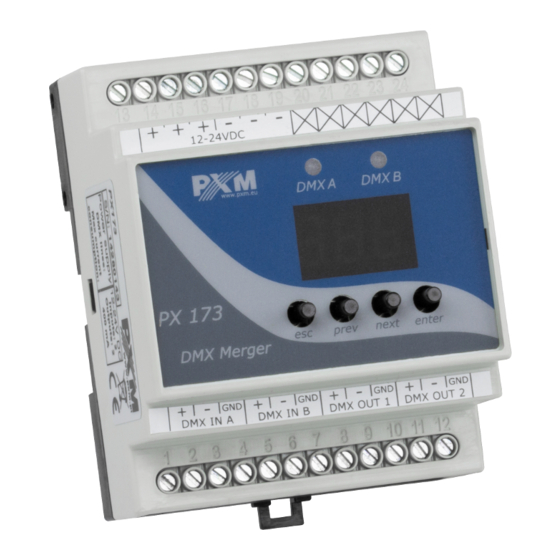

4. VIEW OF THE FRONT PANEL Power supply DMX A DMX B DMX signal control diodes PX173 Display DMX Merger DMX-512 Control Inputs buttons DMX-512 Outputs 4.1. BUTTON FEATURES ENTER - enters the next MENU level and confirms changes made, CANCEL - goes back to the previous MENU level or discards changes made, NEXT... -
Page 6: Dmx Signal Connection Characteristics
6. DMX SIGNAL CONNECTION CHARAKTERISTICS The example of summing up of 2 channels with the comparison feature . . . 512 DMX channels Input A 100 % signal of “A” device 100 % Input B DMX signal of “B” device 100 % Output Output DMX signal... - Page 7 NEXT After comparison of the inputs value for each channel separately, the subtraction result value is sent to the output. NEXT The B input is sent to the output as long, as the DMX transmission is absent on the A input. When the signal appears on the A input, it is sent to the output and the B input is ignored.
-
Page 8: Connection Scheme
7. CONNECTION SCHEME NOT CONNECTED DC OK DMX A DMX B power supply 12-24 V DC PX173 np. DR-15-12 DMX Merger PRESET A MASTER PX015 Chaser Scene % 100 PRESET B / MEMORY PRESET Opera 100 % PUSH CHASER SPEED Flash PRESET MEMORY... -
Page 9: Declaration Of Conformity
PXM s.c. Name of producer: ul. Przemysłowa 12 Address of producer: 30-701 Kraków, Poland declares that the product: Name of product: Rail DMX Merger Type: PX173 answers the following product specifications: PN-EN 55103-1 PN-EN 55103-2 Additional informations: DMX signal connection must be made with a shielded cable, connected to pin GND.
