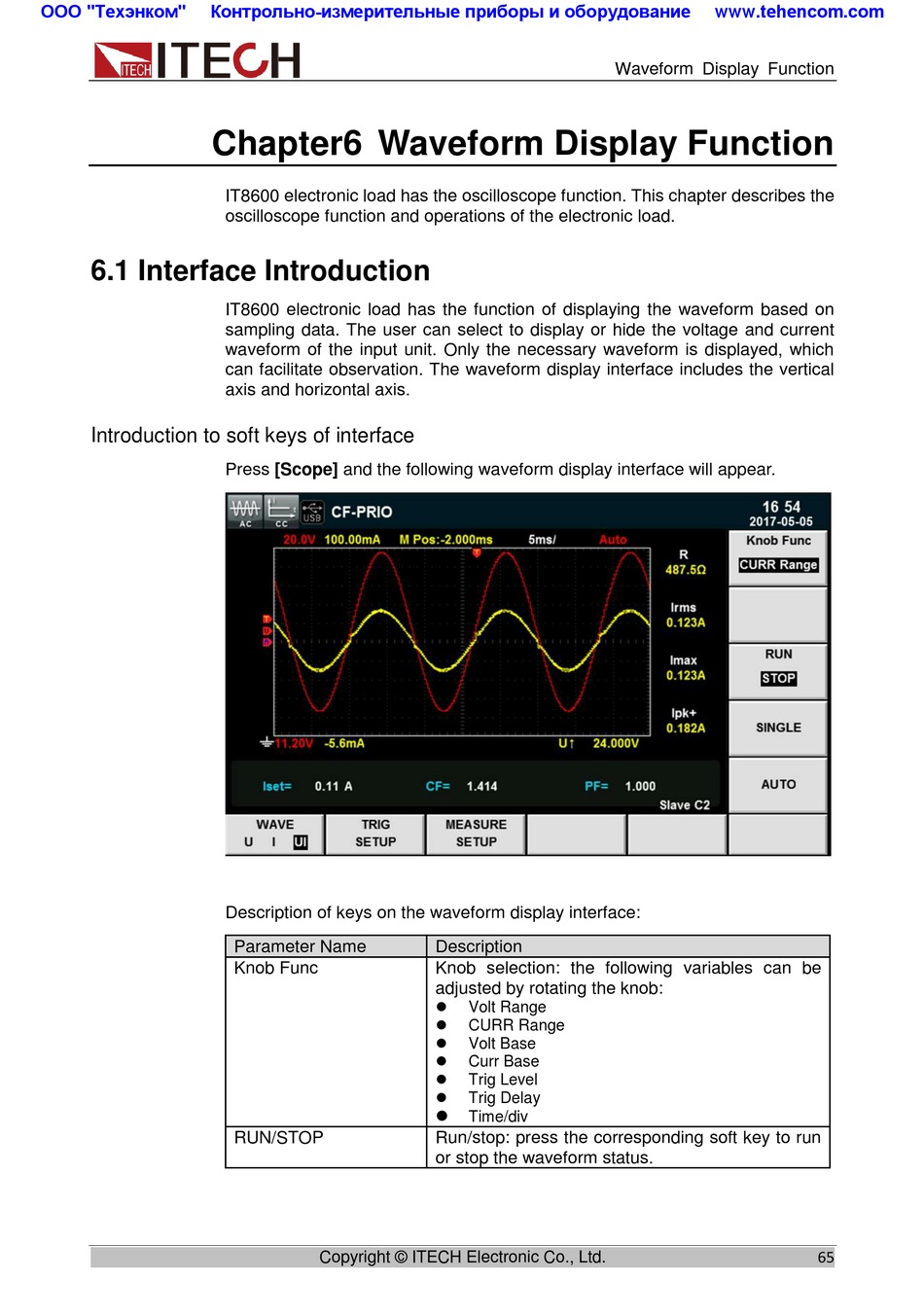

Chapter6 Waveform Display Function

6.1 Interface Introduction

Introduction to soft keys of interface
IT8600 electronic load has the oscilloscope function. This chapter describes the
oscilloscope function and operations of the electronic load.
IT8600 electronic load has the function of displaying the waveform based on
sampling data. The user can select to display or hide the voltage and current
waveform of the input unit. Only the necessary waveform is displayed, which
can facilitate observation. The waveform display interface includes the vertical
axis and horizontal axis.
Press [Scope] and the following waveform display interface will appear.
Description of keys on the waveform display interface:
Parameter Name
Knob Func
RUN/STOP
Copyright © ITECH Electronic Co., Ltd.
Description
Knob selection: the following variables can be
adjusted by rotating the knob:
⚫
Volt Range
⚫
CURR Range
⚫
Volt Base
⚫
Curr Base
⚫
Trig Level
⚫
Trig Delay
⚫
Time/div
Run/stop: press the corresponding soft key to run
or stop the waveform status.
