Basic Operations
7. Press [Enter] to save the setting.

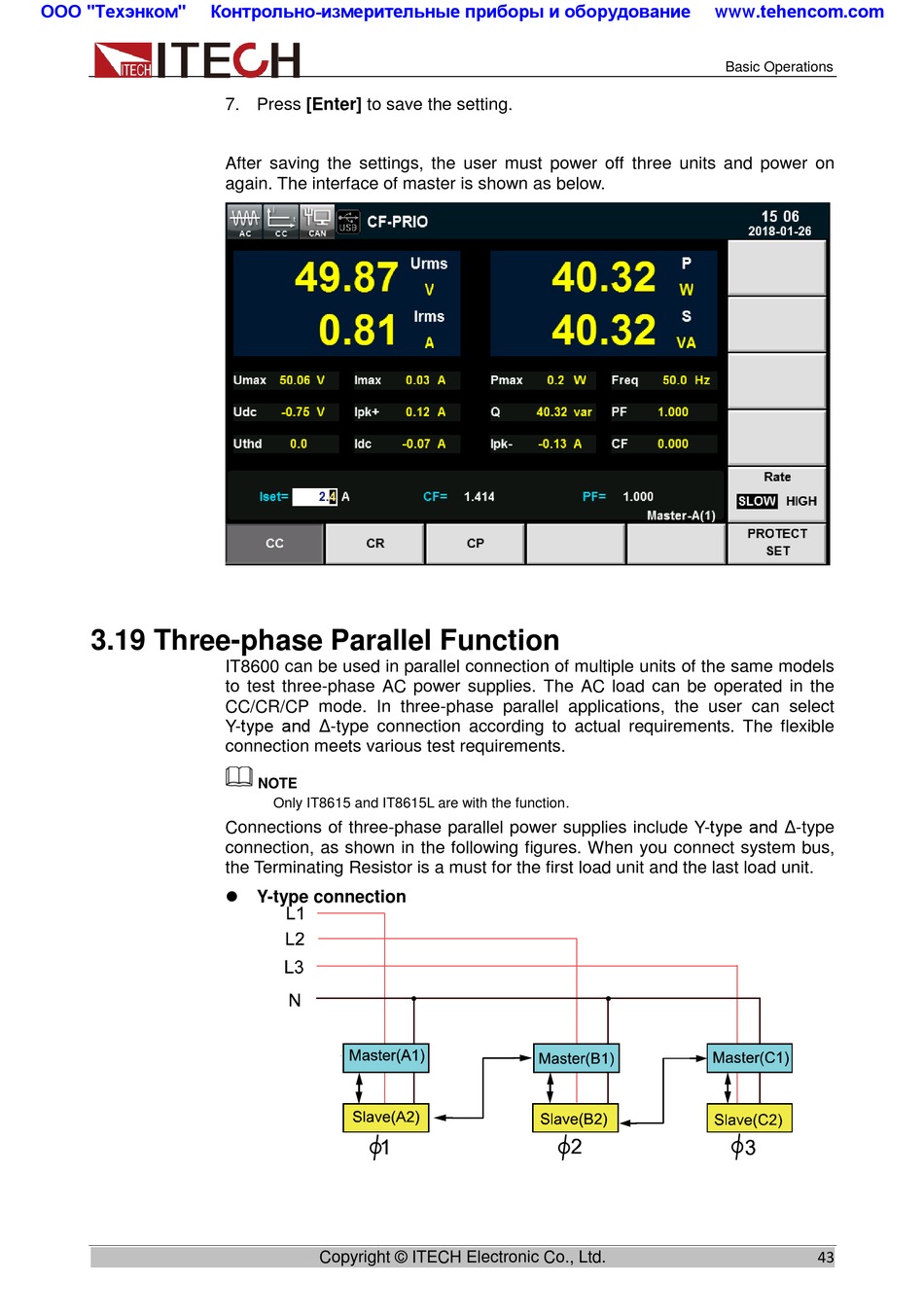

After saving the settings, the user must power off three units and power on
again. The interface of master is shown as below.

3.19 Three-phase Parallel Function

IT8600 can be used in parallel connection of multiple units of the same models
to test three-phase AC power supplies. The AC load can be operated in the
CC/CR/CP mode. In three-phase parallel applications, the user can select
Y-type and Δ-type connection according to actual requirements. The flexible
connection meets various test requirements.
NOTE
Only IT8615 and IT8615L are with the function.
Connections of three-phase parallel power supplies include Y-type and Δ-type
connection, as shown in the following figures. When you connect system bus,
the Terminating Resistor is a must for the first load unit and the last load unit.
⚫
Y-type connection
