2.4 Introduction to Information on the Interface

Basic metering interface

2.5 Introduction to Interface Symbols

Key Name & Function
Symbol
Scope Oscilloscope key used for enabling the oscilloscope function.
Harmonic Harmonic key used for enabling the harmonic function and
starting harmonic measurement.
Save Save the current load values.
Recall Recall the saved load parameters.
Menu Enter the System Menu and set the configuration parameters of
various functions.
Lock The key to lock the keyboard, press the key again to unlock.
IT8600 electronic load can simulate both the AC load and DC load. Below is the
basic interface information, with the basic metering interface in the AC load
mode as an example.

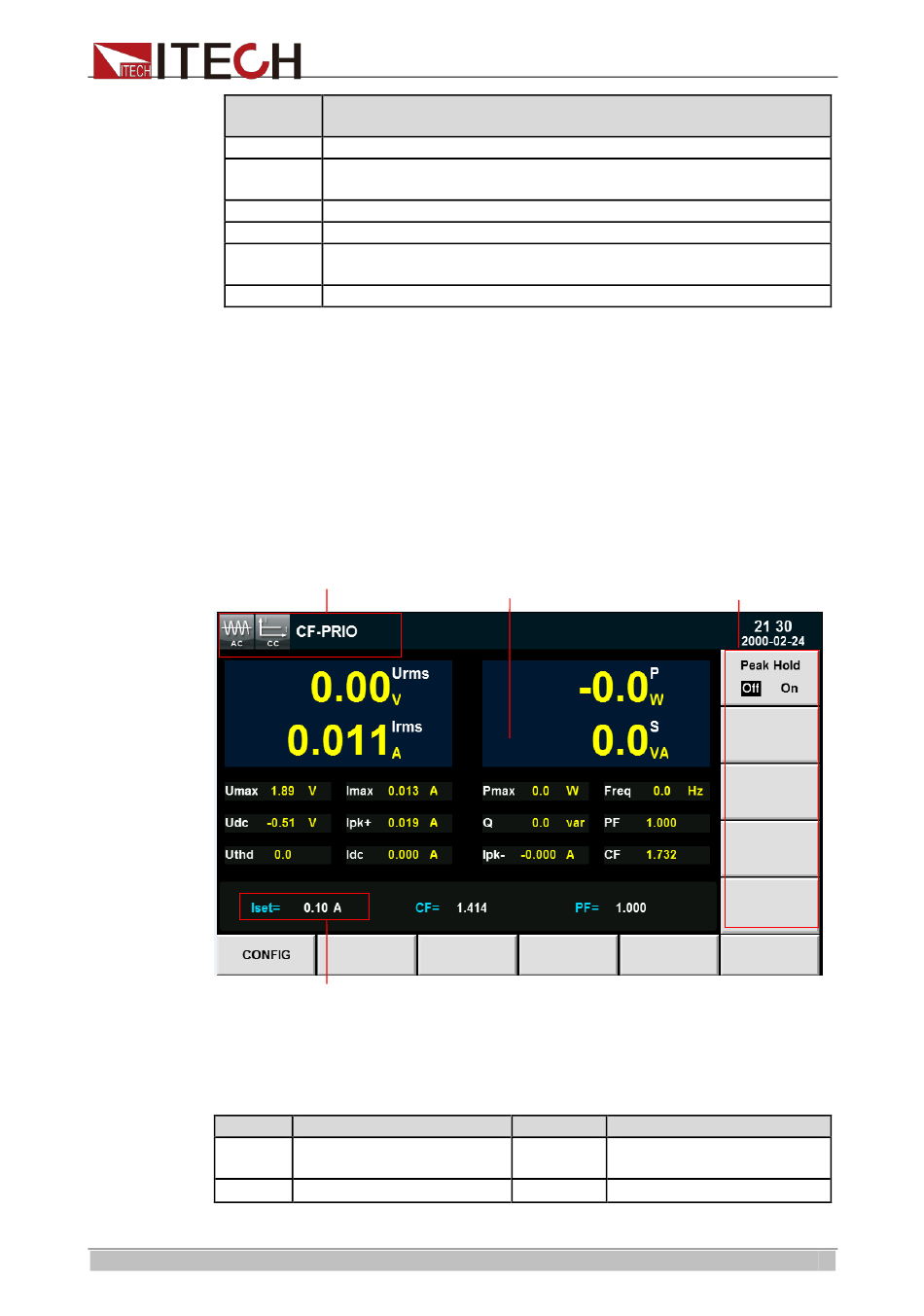

Press "Meter", and the following initial interface of basic metering will appear.
Status bar
Setting value
The interface of IT8600 electronic load will display the following symbols. All the
symbols and description are listed in the table below.
Symbol Description
SHORT Enable the short-circuit
function.
RMT Remote function.
Copyright © ITECH Electronic Co., Ltd.
Display area of
measuring data
Symbol
LOG
CF-PRIO
www.tehencom.com
Quick Start
Soft key
Description
Record log.
CF Priority.
