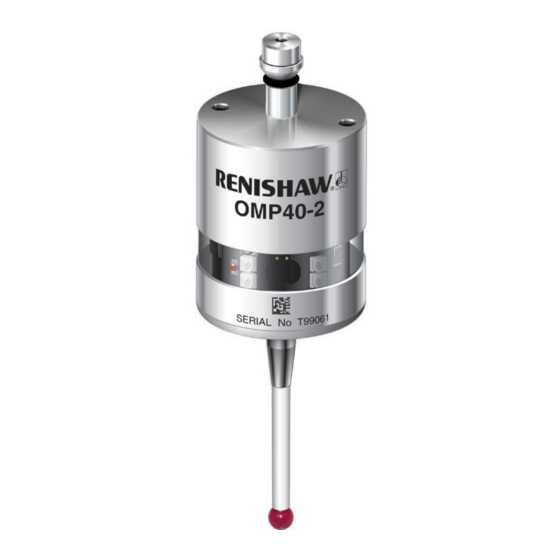

Renishaw OMP40-2 Quick Start Manual
  1. Manuals
  2. Brands
  3. Renishaw Manuals
  4. Accessories
  5. OMP40-2
  6. Quick start manual

Renishaw OMP40-2 Quick Start Manual

Hide thumbs Also See for OMP40-2:

Advertisement

Quick Links

Download this manual
Quick-start guide
H-4071-8500-05-A
OMP40-2

Advertisement

loading
Need help?

Need help?

Do you have a question about the OMP40-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Renishaw OMP40-2

Summary of Contents for Renishaw OMP40-2

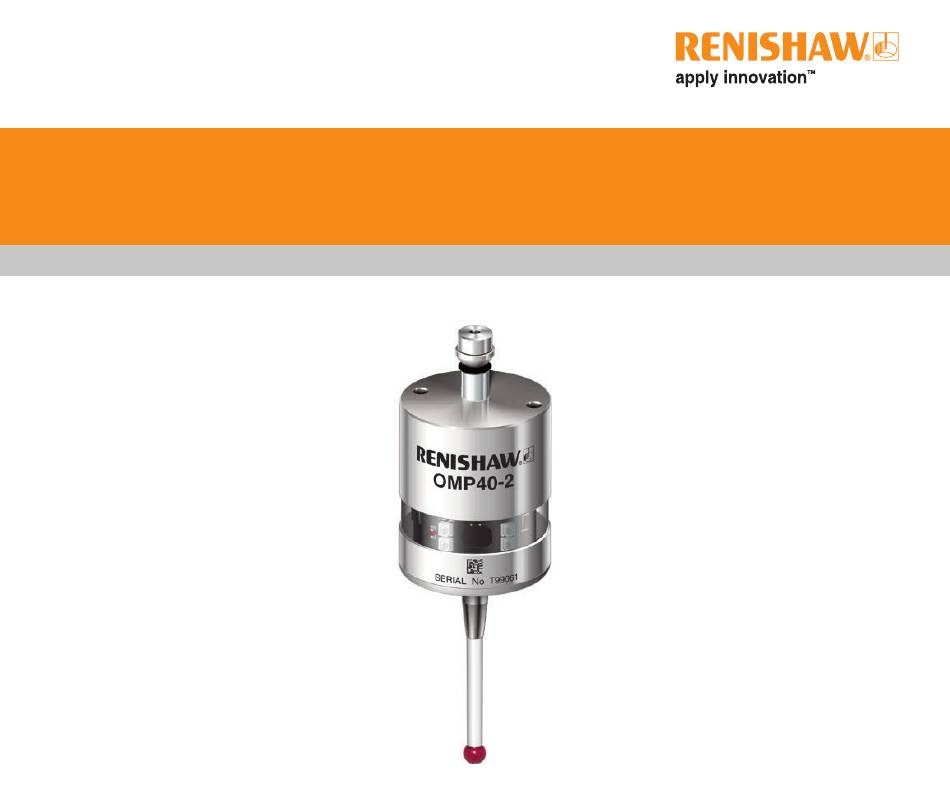

  • Page 1 Quick-start guide H-4071-8500-05-A OMP40-2...
  • Page 2 Publications for this product are available by scanning the barcode or visiting www.renishaw.com/omp40-2. Für dieses Produkt stehen weitere Informationen zur Verfügung. Scannen Sie dazu den Barcode oder besuchen Sie www.renishaw.de/omp40-2. Para acceder a las publicaciones sobre este producto escanee el código de barras o visite www.renishaw.es/omp40-2.
  • Page 3 QR kódu nebo na stránce www.renishaw.cz/omp40-2. Если вас интересует информация об этом продукте, отсканируйте штрих-код или посетите сайт www.renishaw.ru/omp40-2. 中文 可透過下列方式獲得此產品的出版物 透過掃描條碼，或造訪 (繁體) www.renishaw.com.tw/omp40-2 。 中文 可通过以下方式获得此产品的相关文档： 扫描二维码，或访问 (简体) www.renishaw.com.cn/omp40-2 。 한국어 본 제품에 대한 간행물은 바코드를 스캔하거나 다음을 방문하여 확인하실 수있습니다...
  • Page 4 This page is intentionally left blank.
  • Page 5 Batteries ½ AA (3.6 V) lithium-thionyl chloride × 2 ×  Saft Dubilier LS 14250 SB-AA02 Tadiran SL-750 Maxell ER3S Xeno Sanyo XL-050F CR 14250 SE Tadiran SL-350, SL-550, TL-4902, TL-5902, TL-2150, TL-5101 Varta CR ½ AA...

  • Page 6: Fitting The Stylus

    Fitting the stylus 1,8 Nm – 2,2 Nm (1.3 lbf.ft – 1.6 lbf.ft) M-5000-3707...
  • Page 7 CAUTION Remove the battery isolation device from the battery compartment before use. Take care not to short the battery contacts  as this may be a fire hazard. Ensure the contact strips are located securely. ...
  • Page 8 Configuring the probe The following sections describe the process of reviewing and configuring the probe settings. The Trigger Logic™ app simplifies this process with clear, interactive instructions and informative videos.
  • Page 9 This page is intentionally left blank.
  • Page 10 Reviewing the probe settings Key to the symbols LED short flash > 5 s LED long flash × LED check Switch-off method Optical off Short timeout Medium timeout Long timeout 12 s 33 s 134 s Enhanced trigger filter setting 0 ms 10 ms...
  • Page 11 Optical transmission method Legacy (start filter) Modulated PROBE Optical power Standard Ultra low Battery status Battery good Battery low Probe in standby mode (after 8 seconds)
  • Page 12 This page is intentionally left blank.

  • Page 13: Changing The Probe Settings

    Changing the probe settings LED check > 5 s  Deflect the stylus and hold it deflected until after the battery status has been displayed at the end of the review sequence. Key to the symbols LED short flash LED long flash Deflect the stylus for less than 4 seconds Battery status to move to the next menu option.
  • Page 14 Switch-off method Optical off Short timeout Medium timeout Long timeout 12 s 33 s 134 s Enhanced trigger filter 0 ms 10 ms Optical transmission method Legacy (start filter) Modulated PROBE...
  • Page 15 Optical power Standard Ultra low Return to “Switch-off method” New settings complete...
  • Page 16 Mounting the probe on a shank × 2 2 mm A/F × 2 2 mm A/F × 4 × 4...
  • Page 17 2 mm A/F × 2 0,5 Nm – 1,5 Nm (0.4 lbf.ft – 1.1 lbf.ft)

  • Page 18: Stylus On-Centre Adjustment

    Stylus on-centre adjustment × 4 360°...
  • Page 19 × 2 1,5 Nm – 2,2 Nm (1.1 lbf.ft – 1.6 lbf.ft) 360°...
  • Page 20 × 4 1,5 Nm – 2,2 Nm (1.1 lbf.ft – 1.6 lbf.ft) 360°...
  • Page 21 Cleaning Use a clean cloth.
  • Page 22 OMM-2 visual diagnostics NOTE: The appearance of your OMM-2 ACTIVE SYSTEM LED may differ slightly from that shown. Probe 1 Probe 2 SIGNAL LED Probe 3 Signal good Interference or weak signal START LED No signal Start ERROR LED LOW BATTERY LED Signal from probe has either failed or stopped Battery low...
  • Page 23 OMI-2 / OMI-2T / OMI-2H visual diagnostics PROBE 2 PROBE 1 NOTE: The appearance of your OMI-2 / OMI-2T / OMI-2H may differ slightly from OMI-2T / OMI-2H only OMI-2T / OMI-2H only that shown. SIGNAL LED Signal good Interference or weak signal START LED No signal...
  • Page 24 This page is intentionally left blank.

  • Page 25: Warranty

    RENISHAW and the probe symbol used in the RENISHAW China RoHS logo are registered trade marks of Renishaw plc in the United Kingdom and other countries. apply innovation and names and For more information, on China RoHS visit: designations of other Renishaw products and technologies are www.renishaw.com/mtpchinarohs...

  • Page 26: Eu Declaration Of Conformity

    (SVHCs) is available at: www.renishaw.com/REACH Renishaw plc declares under its sole responsibility that the OMP40-2 is in conformity with all relevant Union legislation. FCC Information to user (USA only) The full text of the EU declaration of conformity is available at: www.renishaw.com/mtpdoc...
  • Page 27 To reduce the risk of batteries at a designated collection point. This will prevent potential shipment delays, if you need to return the OMP40-2 to Renishaw negative effects on the environment and human health which could for any reason, do not return any batteries.
  • Page 28 • cables must not be routed alongside high current sources, i.e. The OMP40-2 has a glass window. Handle with care if broken to motor power supply cables etc, or be near high-speed data avoid injury. lines;...
  • Page 29 • 请勿吞咽电池。 shanghai@renishaw.com • 请将电池放在儿童无法接触的地方。 www.renishaw.com.cn • 请将电池放在儿童无法接触的地方。 • 不要将新旧电池或不同的电池类型混用，因为这会缩短电池寿 安全须知 命并损坏电池。 用户须知 • 在运输电池或本产品时，请确保符合国际和国家电池运输条例。 OMP40-2配有两节非充电型½ AA锂亚硫酰氯电池（符合BS EN 在运输电池或本产品时，请确保符合国际和国家电池运输条例。 62133:2013 [IEC 62133:2012] 标准）。电池电量耗尽之后，请勿 尝试给电池充电。 注： 锂电池被定义为危险品，空运有严格的控制。为了减少运输延 期的风险，无论出于何种原因，若您需要将产品返回OMP40-2雷尼 绍，请勿包含任何电池。 在所有涉及使用机床的应用中，建议采取保护眼睛的措施。 OMP40-2有一个玻璃窗口。如果玻璃破碎，请务必小心，以免受 在电池、包装或随附文档上使用本符号，表示废旧电池不可与普通 伤。 生活垃圾混合。 请在指定的收集点处置废旧电池。 这样可以防止 由于废品处理不当对环境和人类健康造成的潜在不良影响。 请联 系当地相关政府部门或废品处置服务商，了解电池的单独回收与处 置规定。 在处置前，必须使所有的锂电池和充电电池完全放电或...
  • Page 30 机床供应商/安装商须知 光学安全性 机床制造商有责任确保用户了解操作中存在的任何危险，包括雷尼 本产品所含的LED指示灯可同时发出可见光和不可见光。 绍产品说明书中所述的危险，并应确保提供充分的防护装置和安全 产品名称所处的光辐射风险等级为豁免级：豁免级（设计安全）。 联动装置。 本产品使用下列标准进行评估和分类： 在某些情况下，测头信号可能错误指示测头已复位状态。切勿单凭 测头信号来停止机床运动。 BS EN 62471:2008 照明 和照明系统的光生物安全性。 (IEC 62471:2006) 设备安装商须知 无论其风险等级如何，雷尼绍建议您切勿直视任何LED指示灯装 雷尼绍所有设备的设计均符合相关的EU和FCC监管要求I为使产品 置。 按照这些规定工作，设备安装商有责任保证遵守以下指导原则： • 任何接口的安装位置必须远离任何潜在的电噪声源，如变压器、 伺服系统驱动装置等； • 所有0伏/接地连接都应当连接到机床接地终端上（“接地终端” 是所有设备地线和屏蔽电缆的单点回路）。这一点非常重要，不 遵守此规定会造成接地之间存在电位差； • 所有屏蔽装置都必须按使用说明书中所述进行连接； • 电缆线路不得与电机电源电缆等高电流源并行或靠近高速数据 传输线； • 电缆长度应始终保持最短。 设备操作 如果设备使用方式与制造商要求的方式不符，设备提供的保护功能 可能会减弱。...
  • Page 31 Patents Features of and features of similar products are OMP40-2 the subject of one or more of the following patents and/ or patent applications: EP 1130557 JP 3967592 EP 1185838 JP 4754427 EP 1373995 JP 4773677 EP 1477767 JP 4851488...
  • Page 34 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, visit www.renishaw.com/contact *H-4071-8500-05*...
