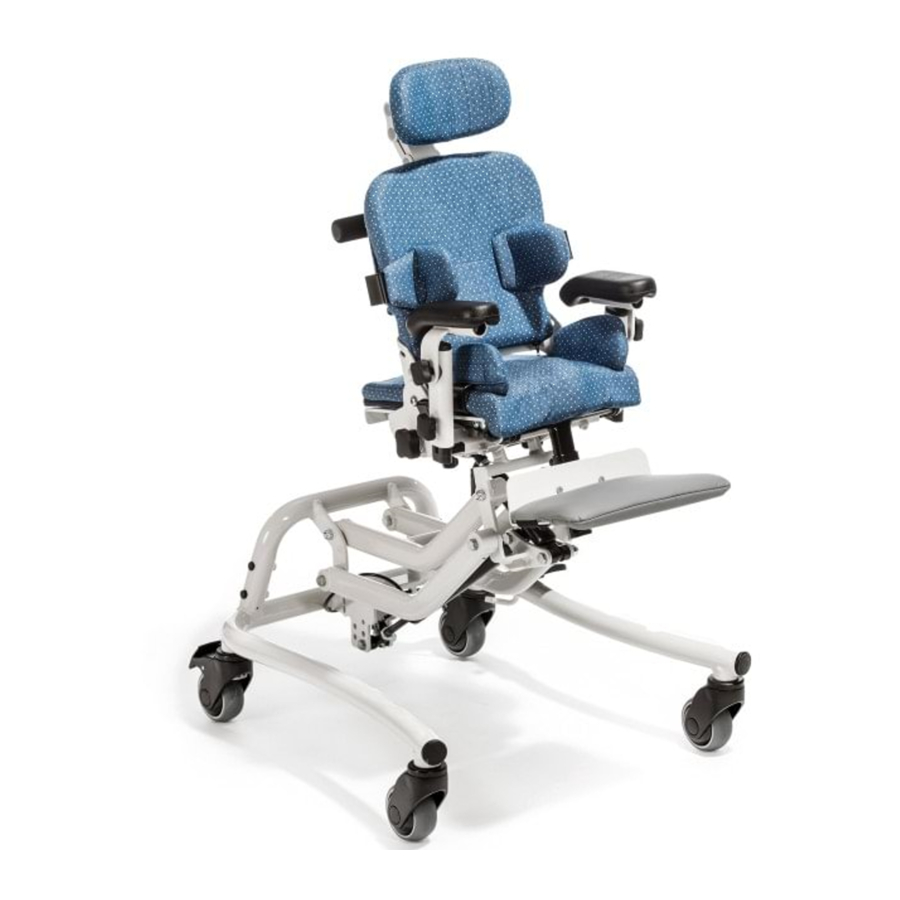

- Page 1 Instructions for use. madita-fun mini. The therapy chair for initial assistance...
- Page 2 Please note that gui- delines and representations in these Instructions for use may deviate from your product due to differing equipment. We reserve the right to make technical modifications. Important information! Ensure that these Instructions for use remain with the product.. Your schuchmann-Team...
-
Page 3: Table Of Contents
Contents..........04 Preparation 1.1 Delivery ........................04 1.2 Safety measures prior to use ................04 1.3 Safe disposal ......................04 1.3.1 Packaging ....................04 1.3.2 Product ....................04 1.4 Where to store the Instructions for use ............. 04 2. -
Page 4: Preparation
1. Preparation. 1.1 Delivery On receiving the product, please check it for completeness, lack of faults and check it for any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please arrange for an inventory (determination of the faults) to be made in the presence of the forwarder. -
Page 5: Product Description
The child may not be located in the therapy chair whilst it is being transported! 2.3 Application areas, use according to the intended purpose madita-fun mini. therapy chair has been designed for children and teenagers who are unable to sit or stand independently, but whose limited madita-fun torso posture does not continuously require sitting in a seat pan. -
Page 6: Use Not In Accordance With The Intended Purpose / Warning
• Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the child. • Only use the therapy chair if all components have been correctly mounted and adjusted. -
Page 7: List Of Accessories
2. Product description. 2.6 List of accessories • Standard back unit • Wooden therapy tray • Back with integrated upper arm guide • Padded tray cover • Lateral pads, long (torso guide) • Harness assembly set for the • Lateral pads seat area / back segment •... -
Page 8: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instructions by a medical product advisor. Please ensure that none of the operator‘s or user‘s extre- mities are in the respective area when making adjustments to avoid the risk of injury. -
Page 9: Seat Depth
3. Settings. 3.3 Seat depth To adjust the seat depth, loosen the two wing screws (B) under the seat unit. Then the seat surface can be moved continuously forwards or backwards. After each adjustment, please re-tighten all screw connections! 3.4 Back inclination The back can be adjusted to the correct ang- le after loosening the star knob (C) on the right-hand side of the seat unit. -
Page 10: Armlehnen
3. Settings. 3.7 Armlehnen The armrests can be adjusted in angle, height and width. The angular adjust- ment takes place after loosening the star knob (B). The height can be adjus- ted through loosening the star knob (C). The width adjustment takes place af- ter loosening the two grub screws (D), which are located on the underside of the seat unit. -
Page 11: Castors
3. Settings. 3.9 Castors The therapy chair should always be prevented from rolling away inadver- tently through braking of the 2 rear castors. To do this, press the brake (C) down with the tip of your foot. The brake serves merely to prevent inadvertent rolling away on level surfaces! 4. -
Page 12: Lateral Pads With Standard Back
4. Accessories. 4.2 Lateral pads with standard back The lateral pads are available in normal and long versions (with torso guide). Both versions are individually adjusta- ble in height and width. Pull the pad cover off the rear side of the back and loosen the two cylinder head screws with a hexagonal wrench (A). -
Page 13: Thigh Guide
4. Accessories. 4.4 Thigh guide The thigh guide pads are individually adjustable in width, depth and angle. In order to adjust the width, the depth and the angle, loosen the cylinder head screws with a hexagonal wrench (A) under the seat surface and bring the thigh guide into the required position. -
Page 14: Dysplasia Seat
4. Accessories. 4.5 Dysplasia seat The dysplasia seat permits the me- dically necessary abduction of the thighs. In order to adjust the leg guides, loosen the cylinder head screws with a hexagonal wrench (A) on the under- side of the seat plate. In this way, the clutch-plate clamp and the inside and outside leg guides can be adjusted in angle. -
Page 15: Therapy Tray
30° in the washing machine. Please do not dry the covers in a dryer and do not use aggressive cleaning agents or simi- lar products. Please also pay attention to our general cleaning and hygiene www.schuchmann.de/en/media-library advice. You can find these on 5.2 Repairs Please carry out a daily visual inspection and check the therapy chair regu- larly for cracks, breaks, missing parts and malfunctions. -
Page 16: Technical Data
5. Instandhalten und Reinigen. 5.3 Spare parts Should you wish to order spare parts, please contact the specialist dealer who supplied you with the product, stating the serial number of the therapy chair (see 8.5). Necessary spare parts and accessories must only be installed by trained personnel. -
Page 17: Guarantee
6. Technical data. Dimensions - basic model Seat depth 12 - 19 cm Seat width 14 - 22 cm Back height with short back 28 - 33 cm Back height with long back 30 - 35 cm Seat height 25 - 62 cm Lower leg length 12 - 22 cm Total width... -
Page 18: Identification
8. Identification. 8.1 EC declaration of conformity Company Schuchmann GmbH & Co.KG Dütestr. 3 D-49205 Hasbergen Tel.: +49 (0) 54 05 / 909 - 0 Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below is classified as product class 1 madita-fun mini. -
Page 19: Serial Number / Date Of Manufacture
- Change status B; Issue 09.2018 8.5 Name and address of the manufacturer, specialist dealer supplying the product This product was manufactured by: Schuchmann GmbH & Co. KG Dütestraße 3 · 49205 Hasbergen Tel. +49 (0)5405/909-0 · Fax +49 (0)5405/909-109 info@schuchmann.de · www.schuchmann.de... - Page 20 schuchmann.de...
