Summary of Contents for New England Arbors Wildwood VA68896

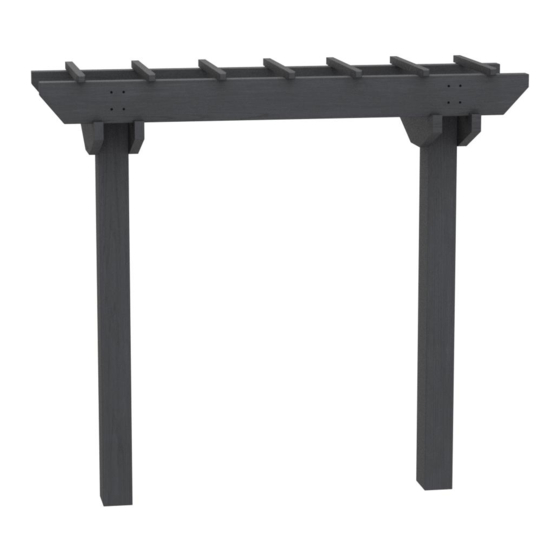

- Page 1 ASSEMBLY GUIDE Wildwood Arbor VA68896 VER 1.18 04/02/20...
- Page 2 GETTING STARTED First off, allow us to say thank you for the investment you have made in our fine Arbor. This Arbor is designed to be assembled and installed ideally by two people with basic carpentry knowledge and tools. Do not attempt alone, especially during the installation stage.
-
Page 3: Table Of Contents
IN THIS GUIDE MATERIALS OVERVIEW MATERIALS BREAKDOWN ADDITIONAL MATERIALS LIST DISTANCE BETWEEN WOOD POSTS INSTALLING WOOD SUPPORTING POSTS INTO GROUND GUIDE POST OPENING ONTO MOUNTING POST ATTACHING CARRY BEAMS TO POSTS ATTACHING BEAM ENDS TO BEAMS ATTACHING FULLY ASSEMBLED BEAMS TO POSTS ATTACHING FILTERS TO BEAMS WWW.NEWENGLANDARBORS.COM WWW.NEWENGLANDARBORS.CO.UK... -
Page 4: Materials Overview
MATERIALS OVERVIEW 1. 12016 - Filters (x7) 1 1/2” x 1 1/2” x 30” (3.81cm x 3.81cm x 76.2cm) 2. 12017 - Beam End Left (x2) 1 1/2” x 6” x 19” (3.81cm x 15.24cm x 48.26cm) 3. 12021 - Beam End Right (x2) 1 1/2”... -
Page 5: Materials Breakdown
MATERIALS BREAK DOWN 12016 - FILTER 12017 - BEAM 12021 - BEAM (X7) END LEFT ENDS RIGHT (X2) (X2) 12018 - CARRYING 12020 - BEAM BEAM (X4) (X2) STAIN SLEEVE SOCKET (X1) 12019 - POST (X2) WRENCH (X1) VER 1.18 04/02/20... -
Page 6: Additional Materials List
ADDITIONAL MATERIALS LIST 20054- BOLT, HEX NUT AND WASHER 9” (24CM) 20060 - 2” (5CM) 20048- 2 1/2” (6CM) - X22 ADDITIONAL MATERIALS TO PURCHASE 4x4x10’ (8.9x8.9x304.80cm) Pressure Treated Wood for Posts. Cut down in half, making two 5’ posts. Purchase at local building centre. -
Page 7: Distance Between Wood Posts
Step 1 DISTANCE BETWEEN WOOD POSTS Determine the area you want to start building your arbor. At one end of the desired area, hammer one wooden stake into the ground, tie a piece of string around it and measure to a length of 66” (167.6cm). This is where your second wood stake needs to be hammered into the ground. -
Page 8: Installing Wood Supporting
Step 2 INSTALLING WOOD SUPPORTING POSTS INTO GROUND Post location and placement is the most critical step in the overall installation process. Please double check for the possibility of any underground utilities such as sprinkler, gas or telephone lines. Make sure that your wood posts are straight using a level. -
Page 9: Guide Post Opening Onto
Step 3 GUIDE POST OPENING ONTO MOUNTING POST GROUND VER 1.18 04/02/20... -
Page 10: Attaching Carry Beams To Posts
Step 4 ATTACHING CARRY BEAMS TO POSTS 9” (24CM) - X8 VER 1.18 04/02/20... -
Page 11: Attaching Beam Ends To Beams
Step 5 ATTACHING BEAM ENDS TO BEAMS 1 1/2” (5CM) - X16 Repeat for second beam once completed. VER 1.18 04/02/20... -
Page 12: Attaching Fully Assembled Beams To Posts
Step 6 ATTACHING FULLY ASSEMBLED BEAMS TO POSTS 2 3/8” (6CM) - X8 VER 1.18 04/02/20... -
Page 13: Attaching Filters To Beams
Step 7 ATTACHING FILTERS TO BEAMS 2 3/8” (6CM) - X14 VER 1.18 04/02/20... - Page 14 We’re here for you. If you have any questions at all, don’t hesitate to contact us. NORTH AMERICA TOLL FREE 1-800-282-9346 UNITED KINGDOM (44) 2038 687160 Visit our website to chat with a support technician. WWW.NEWENGLANDARBORS.COM WWW.NEWENGLANDARBORS.CO.UK VER 1.18 04/02/20...
