New England Arbors VA42027 Assembly Instructions

12’x12’ flat top pergola wall

A S S E M B LY I N S T R U C T I O N S

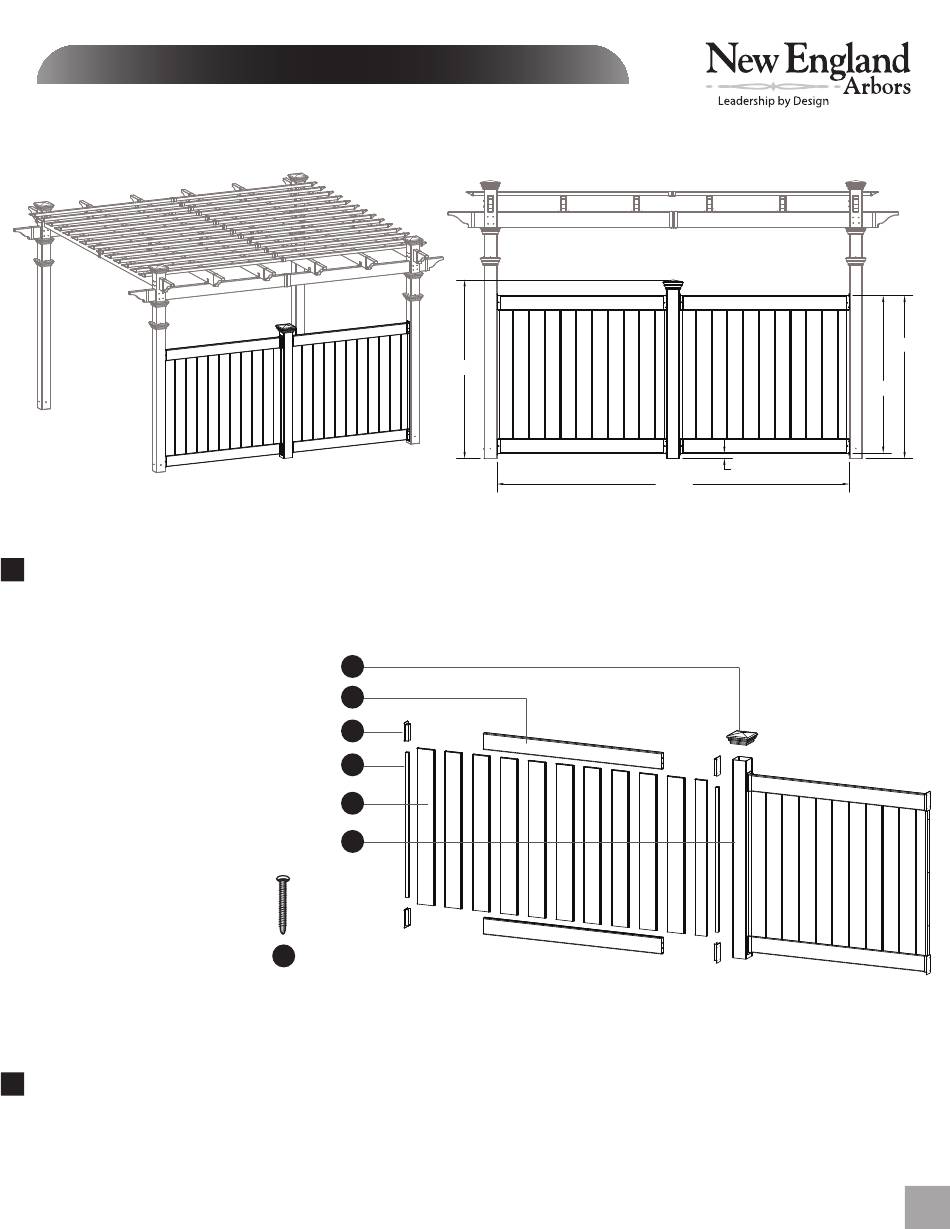

12'x12' Flat Top Pergola Wall Instructions

Please read through before starting assembly.

Check Box for These Contents

In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).

1. Post Cap (1)

2. Top and Bottom Rails (4)

3. Wall Brackets (8)

4. U-Channel (4)

5. Wall Boards (22)

6. Post (1)

7. 1 1/2" Stainless Steel Screws (62)

• Read Instructions through carefully before beginning assembly.

• When assembling components, place on a non-abrasive surface

(i.e. shipping box) to avoid scratching.

• We recommend an area approx 4'x 8' for unobstructed assembling.

• You should not need to use excessive force when assembling components.

Not to Scale

www.newenglandarbors.com

Ver 1.0/MAR 2013

Table of Contents

Do you have a question about the VA42027 and is the answer not in the manual?

Page 1: General Information
A S S E M B LY I N S T R U C T I O N S 12’x12’ Flat Top Pergola Wall Instructions www.newenglandarbors.com ¦ ¥ £ ¤ ¦ ¨ £ ¤ ¦ § £ ¤ ¥ £ ¤...
Page 2 Privacy Fence Panel Assembly & Installation S T E P O N E Install the Middle Post String Line Center of Post Measure and mark out the location of the wood 4x4 post using 67“ string or chalk line. Center of 4x4 wood post should be located 67“...
Page 3 Wood Post Installation Using Bolt Down Bracket for Concrete or Wood Surface (continued) With the four post brackets installed plumb, proceed to set a 4x4x5 ½’ wood post in place. Secure using the concrete screws included in the kit. Level Posts should not exceed 67”...
Page 4 S T E P F O U R Install the Wall Slide the horizontal rails into the brackets with the slots facing up- wards as shown. Place a U-Channel against each post as shown. Line up the channel with the opening slot on the horizontal rail and while ensuring the channel is level, fasten each channel with three screws as shown.
Page 5 S T E P F O U R Install the Wall Slide the brackets onto the top horizontal rails as shown. Note the direction of the opening on the bracket. Fasten all four brackets with 4 screws each as shown. Fasten the top and bottom horizontal rails to the brackets using 2 screws per bracket as shown.
