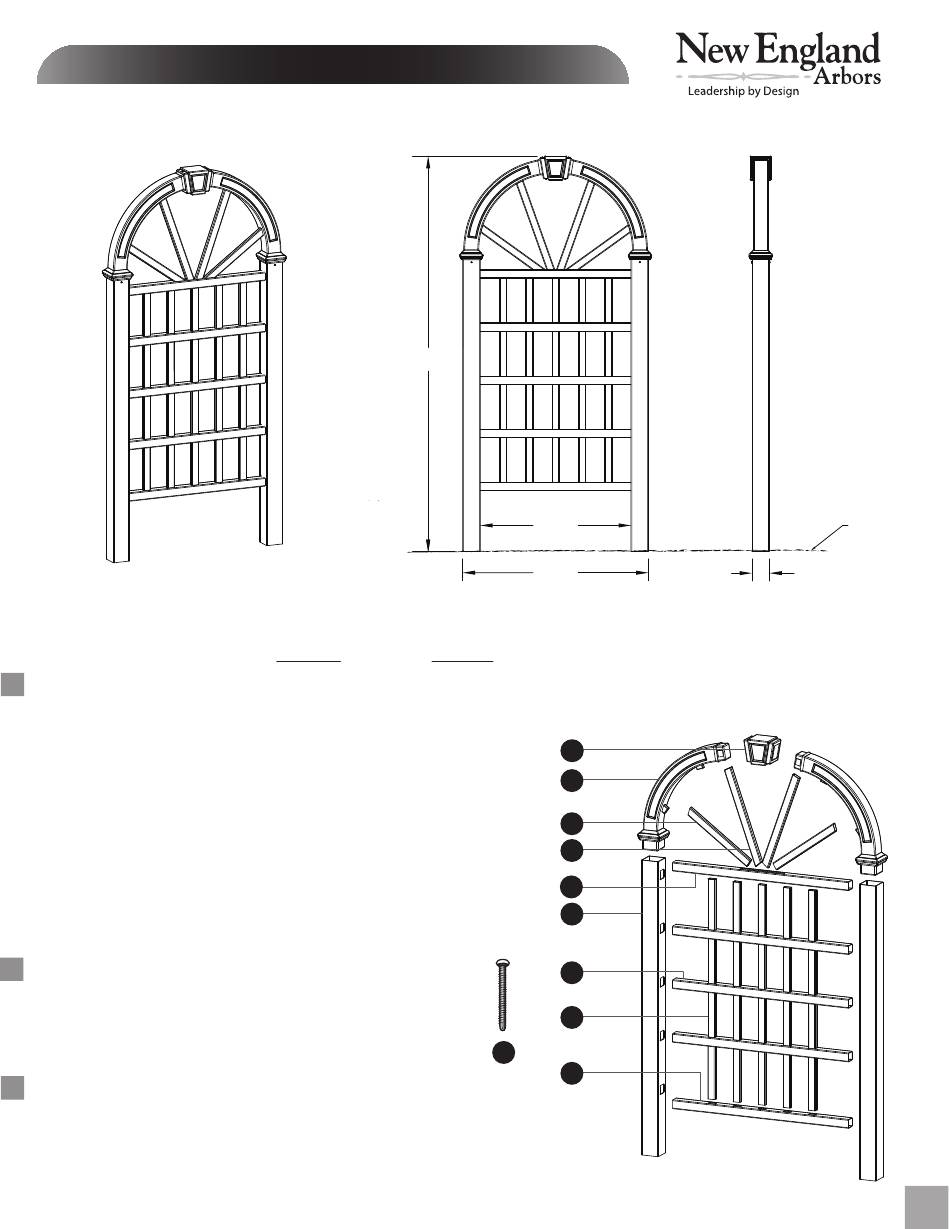

A S S E M B LY I N S T R U C T I O N S
Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service department at 1 800 282 9346
(Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Keystone (1) -
10047
2. Arches (2) -
10046
3. Spindles - Short (2) -
10040
4. Spindles - Long (2) -
10041
5. Top Rail (1) -
10580-1
6. Posts (2) -
10583-1
7. Middle Rails (3) -
10582-1
8. Vertical Spindles (5) -
10581-1
9. Bottom Rail (1) -
10584-1
10. 1 1/2" (38 mm) Self-Auguring Stainless Steel Screw (8) -
Tools You Will Need
• Cordless Drill
• Tape Measure
• Level
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface
(i.e. shipping box) to avoid scratching.
• We recommend an area approx 5'x 8' (1.5 m x 2.4 m) for unobstructed assembling.
• You should not need to use excessive force when assembling component.

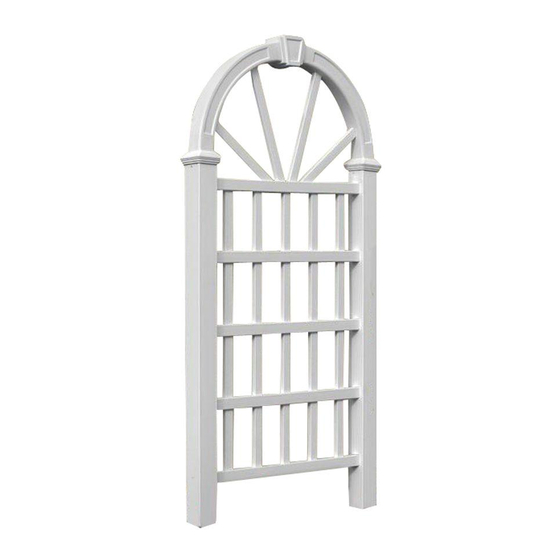

Hanover Trellis
77.375 in
197 cm
30 in
76 cm
37 in
94 cm
1
2
3
4
5
6
20016
7
8
10
9
Not to Scale
www.newenglandarbors.com
Ground
3.5 in
9 cm
V2.2/080117
1
Advertisement
Table of Contents
Related Manuals for New England Arbors Hanover Trellis VA54230
Summary of Contents for New England Arbors Hanover Trellis VA54230
- Page 1 A S S E M B LY I N S T R U C T I O N S Hanover Trellis www.newenglandarbors.com 77.375 in 197 cm 30 in Ground 76 cm 37 in 3.5 in 94 cm 9 cm Please read through before starting assembly. IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
- Page 2 S T E P O N E Assemble the Top Arch Take the arches and snap them onto either side of the keystone. Using four screws, fasten the arches to the keystone on both sides as illustrated. Note: All screws are self-tapping and require no pre-drilling. Set aside the assembled arch.
- Page 3 S T E P T W O Assemble the Trellis Lay out one post as shown. Align the rails with the pre-routed holes in the post and push in past the locking tabs. Flip over and do the same for the other post. Note: Make sure the long end of each post is facing the same direction.
- Page 4 S T E P T H R E E Install Trellis into Ground www.newenglandarbors.com Move the trellis to its final location. When you are satisfied with the location, mark the positions of the posts, then move the trellis aside and carefully lay it on its side. Excavate the two posts holes approximately 12”...
