Connecting
Before connecting
f Before connecting, carefully read the operating instructions for the external device to be connected.
f Turn off the power of all devices before connecting cables.
f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions.
g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby
metallic objects to eliminate static electricity from your body before performing work.
g Do not use unnecessarily long cables to connect a device to the projector or to the projector body. The longer
the cable, the more susceptible to noise it becomes. Since using a cable while it is wound makes it act like an
antenna, it is more susceptible to noise.
g When connecting cables, connect GND first, then insert the connecting terminal of the connecting device in a
straight manner.
f Acquire any connection cable necessary to connect the external device to the system that is neither supplied
with the device nor available as an option.
f If video signals from video equipment contain too much jitter, the images on the screen may wobble. In this
case, a time base corrector (TBC) must be connected.
f The projector accepts video signals, Y/C signals, YC
signals are TTL level), and digital signals.
f Some computer models or graphic cards are not compatible with the projector.
f Use a cable compensator when you connect devices to the projector using long cables. Otherwise the image
may not display properly.
f Refer to "List of compatible signals" (x page 254) for the types of video signals that can be used with the
projector.

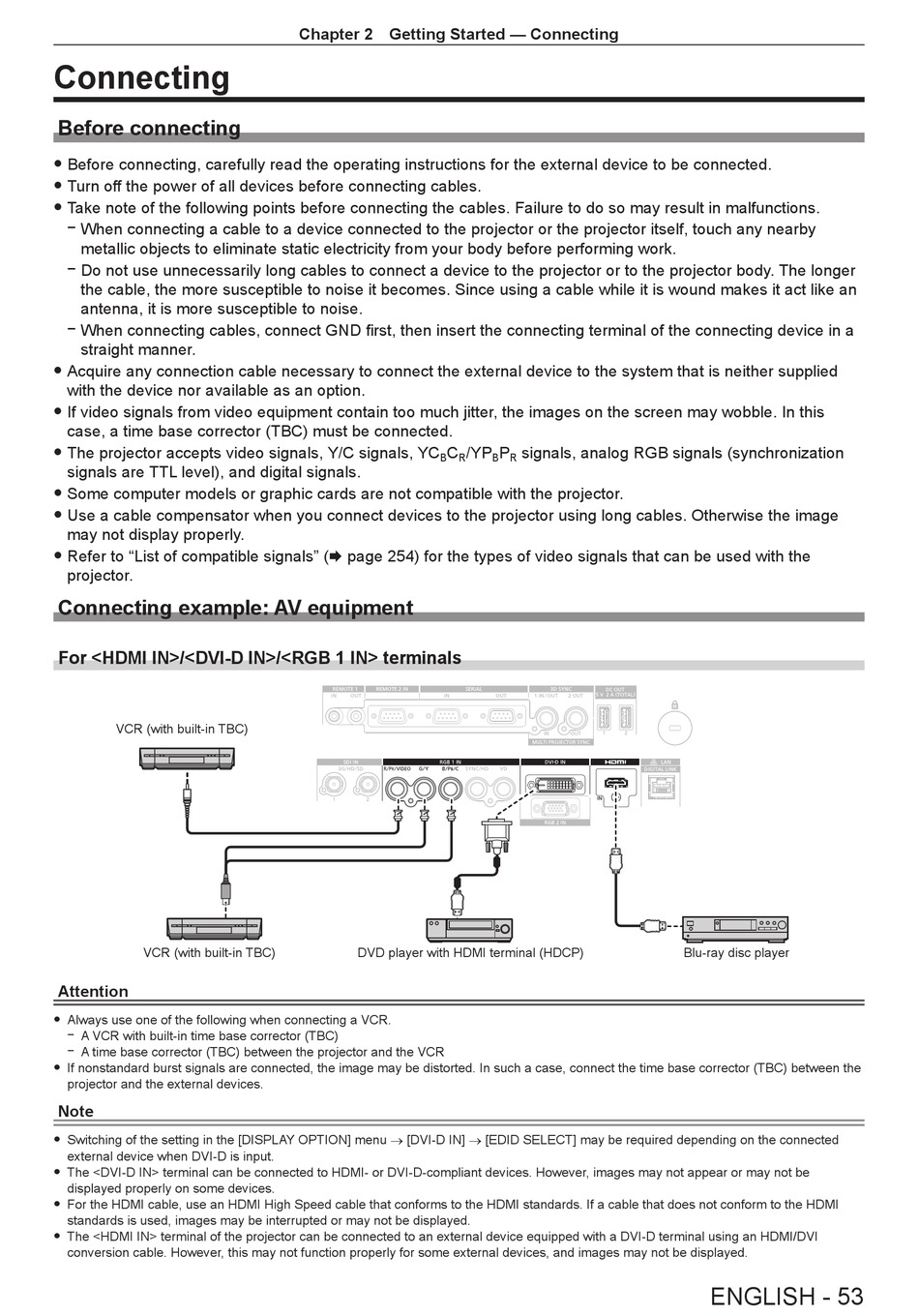

Connecting example: AV equipment
For <HDMI IN>/<DVI-D IN>/<RGB 1 IN> terminals
VCR (with built-in TBC)
VCR (with built-in TBC)
Attention
f Always use one of the following when connecting a VCR.
g A VCR with built‑in time base corrector (TBC)
g A time base corrector (TBC) between the projector and the VCR
f If nonstandard burst signals are connected, the image may be distorted. In such a case, connect the time base corrector (TBC) between the
projector and the external devices.
Note
f Switching of the setting in the [DISPLAY OPTION] menu → [DVI-D IN] → [EDID SELECT] may be required depending on the connected
external device when DVI-D is input.
f The <DVI-D IN> terminal can be connected to HDMI- or DVI-D-compliant devices. However, images may not appear or may not be
displayed properly on some devices.
f For the HDMI cable, use an HDMI High Speed cable that conforms to the HDMI standards. If a cable that does not conform to the HDMI
standards is used, images may be interrupted or may not be displayed.
f The <HDMI IN> terminal of the projector can be connected to an external device equipped with a DVI-D terminal using an HDMI/DVI
conversion cable. However, this may not function properly for some external devices, and images may not be displayed.
Chapter 2 Getting Started — Connecting
C
/YP
B
R
DVD player with HDMI terminal (HDCP)
P
signals, analog RGB signals (synchronization
B
R
Blu-ray disc player
ENGLISH - 53
