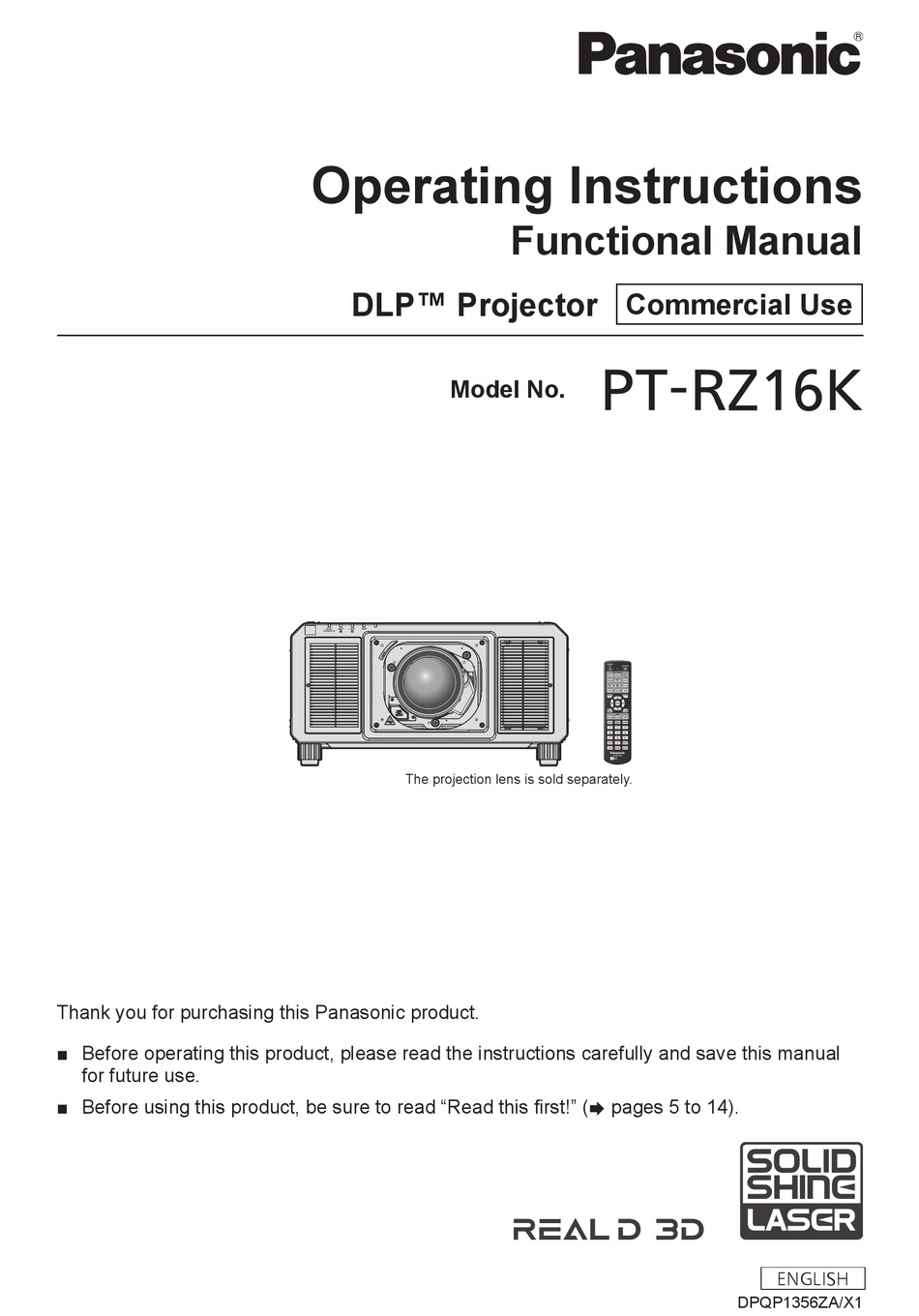

Page 1 PT-RZ16K Model No. The projection lens is sold separately. Thank you for purchasing this Panasonic product. ■ Before operating this product, please read the instructions carefully and save this manual for future use. ■ Before using this product, be sure to read “Read this first!” ( x pages 5 to 14).
Page 2: Table Of Contents
Contents Contents Read this first! Chapter 3 Basic Operations Switching on/off the projector Chapter 1 Preparation Connecting the power cord Power indicator Precautions for use Switching on the projector Intended use of the product When the initial setting screen is displayed Cautions when transporting When the administrator account setting screen Cautions when installing...
Page 3 Contents [PICTURE] menu [DISPLAY OPTION] menu [PICTURE MODE] [COLOR MATCHING] [CONTRAST] [LARGE SCREEN CORRECTION] [BRIGHTNESS] [SCREEN SETTING] [COLOR] [AUTO SIGNAL] [TINT] [AUTO SETUP] [COLOR TEMPERATURE] [BACKUP INPUT SETTING] [GAMMA] [SIMUL INPUT SETTING] [SYSTEM DAYLIGHT VIEW] [RGB IN] [SHARPNESS] [DVI-D IN] [NOISE REDUCTION] [HDMI IN] [DYNAMIC CONTRAST]...
Page 4 Contents Chapter 7 Appendix [SIGNAL LIST] menu Registering new signals Technical information Renaming the registered signal Using PJLink function Deleting the registered signal Using Art-Net function Protecting the registered signal Control commands via LAN Expanding signal lock-in range <SERIAL IN>/<SERIAL OUT> terminal Sub memory <REMOTE 2 IN>...
Page 5: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view.
Page 6 Read this first! WARNING: Do not look at the light emitted from the lens while the projector is being used. Indicated on the projector This projector is designed for commercial use. Notice on laser (for USA and Canada) This projector is the Class 3R laser product that complies with IEC 60825-1:2007. For North America “Complies with 21 CFR Parts 1040.10 and 1040.11 except for deviations pursuant to Laser Notice...
Page 7 Read this first! WARNING (North America) This projector would become Class IIIb laser product when an interchangeable projection lens is used under the condition that throw ratio is greater than 3.0, and if used without lens hood mounted over the long lens. If you use under this condition, you must receive variance approval letter from FDA before usage.
Page 8 FCC NOTICE (USA) Supplier’s Declaration of Conformity Model Number: PT-RZ16K Trade Name: Panasonic Responsible Party: Panasonic Corporation of North America Address: Two Riverfront Plaza, Newark, NJ 07102-5490 General Contact: http://www.panasonic.com/support Projector Contact: https://panasonic.net/cns/projector/ This device complies with Part 15 of the FCC Rules.
Page 9 Read this first! r Hazard distance (IEC 62471-5:2015) The distance from the projection lens surface, at which the level of exposure has reached the level of the applicable Exposure Limit Value, is known as the hazard distance (HD) or safety distance. Do not look into the projected light from inside the hazard distance (within RG3 range).
Page 10 Read this first! WARNING: r POWER The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock, or will cause visual impairment.
Page 11 If liquid enters inside of the projector, consult your dealer. f Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Using the ceiling mount bracket other than the specified one will result in falling accidents.
Page 12 Read this first! CAUTION: r POWER When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short‑circuits or serious electric shocks will result.
Page 13 Read this first! CAUTION: r ACCESSORIES When not using the projector for an extended period of time, remove the batteries from the remote control. Failure to observe this will cause the batteries to leak, overheat, catch fire or explode, which may result in fire or contamination of surrounding area.
Page 14 Read this first! Brazil Only Brasil Apenas r Manuseio de baterias usadas BRASIL Após o uso, as pilhas e/ou baterias deverão ser entregues ao estabelecimento comercial ou rede de assistência técnica autorizada. Cobrir os terminais positivo (+) e negativo (‑) com uma fita isolante adesiva, antes de depositar numa caixa destinada para o recolhimento.
Page 15 SOLID SHINE is a trademark of Panasonic Corporation. f DLP and the DLP logo are registered trademarks or trademarks of Texas Instruments. f The terms HDMI and HDMI High‑Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Page 16 Features of the Projector Quick Steps For details, refer to the corresponding pages. 1. Set up the projector. High luminance and high contrast (x page 34) ▶ With the high efficient optical system that maximizes the output of the solid-state light source, and unique drive system, despite 2.
Page 17: Chapter 1 Preparation
Preparation Chapter 1 This chapter describes things you need to know or check before using the projector. ENGLISH - 17...
Page 18: Precautions For Use
Chapter 1 Preparation — Precautions for use Precautions for use Intended use of the product The purpose of the projector is to project a video signal from imaging equipment or a computer on a screen or other surface as a still image or moving image. Cautions when transporting f Transport the projector with two or more people.
Page 19: Cautions When Setting Up The Projector
Chapter 1 Preparation — Precautions for use rFocus adjustment The high clarity projection lens is thermally affected by the light from the light source, making the focus unstable in the period just after switching on the power. When using the Zoom Lens (Model No.: ET‑D3LEW200) or the Fixed‑focus Lens (Model No.: ET‑D3LEU100), it is recommended to perform the focus adjustment after at least an hour has elapsed with an image displayed.
Page 20 Chapter 1 Preparation — Precautions for use f Use a torque screwdriver or Allen torque wrench to tighten the fixing screws to their specified tightening torques. Do not use electric screwdrivers or impact screwdrivers. For the screws to fix the projector, use commercially available ISO 898‑1 standard screws (made of carbon steel or alloy steel).
Page 21: Security
Panasonic takes no responsibility for any damage to the product caused by an inappropriate choice of location for installing the projector, even if the warranty period of the product has not expired.
Page 22: Digital Link
Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers. This projector does not support audio transmission because it is not equipped with audio function.
Page 23: Disposal
Chapter 1 Preparation — Precautions for use Disposal To dispose of the product, ask your local authorities or dealer for correct methods of disposal. Also, dispose of the product without disassembling. Cautions on use rTo get a good picture quality In order to view a beautiful image in higher contrast, prepare an appropriate environment. Draw curtains or blinds over windows and turn off any lights near the screen to prevent outside light or light from indoor lamps from shining onto the screen.
Page 24: Accessories
Chapter 1 Preparation — Precautions for use Accessories Make sure that the following accessories are provided with your projector. Numbers enclosed in < > show the number of accessories. Wireless/wired remote control unit <1> Lens fixing screw <1> (N2QAYB001176) (XYN4+J18FJ) Lens hood 1 <1> (7MHRZ31KU) Lens hood 2 <1>...
Page 25: Optional Accessories
The model numbers of optional accessories are subject to change without prior notice. f The optional accessories described in this document may be added or changed without prior notice. For the latest information, visit the Panasonic website (https://panasonic.net/cns/projector/). ENGLISH - 25...
Page 26: About Your Projector
Chapter 1 Preparation — About your projector About your projector Remote control Front Bottom A strap can be attached depending on the usage. Remote control indicator 12 Input selection buttons (<RGB1>, <RGB2>, <VIDEO>, <S-VIDEO Y/C>, <DIGITAL LINK>, <DVI-D>, <HDMI>, <SDI>) Blinks if any button in the remote control is pressed. Switches the input signal to project.
Page 27 Chapter 1 Preparation — About your projector f Avoid contact with liquids or moisture. f Do not attempt to modify or disassemble the remote control. f Do not swing the remote control holding onto the strap when a strap is attached. f Observe the following instructions that are indicated on the caution label at the back of the remote control: g Do not use old battery with new one.
Page 28: Projector Body
Chapter 1 Preparation — About your projector Projector body Front Side 3 4 5 Rear Light source indicator <LIGHT1> Bottom Indicates the status of light source 1. Light source indicator <LIGHT2> Indicates the status of light source 2. Temperature indicator <TEMP> Indicates the internal temperature status.
Page 29 Chapter 1 Preparation — About your projector r Control panel Power on <b> button 11 <MENU> button Sets the projector to projection mode when the <MAIN Displays or hides the main menu. (x page 86) POWER> switch on the projector is set to <ON> and the power Returns to the previous menu when a sub-menu is displayed.
Page 30 Chapter 1 Preparation — About your projector r Connecting terminals <REMOTE 1 IN> terminal/<REMOTE 1 OUT> terminal <DC OUT 1> terminal/<DC OUT 2> terminal These are terminals to connect the remote control for serial This is the USB terminal dedicated for power supply. (DC 5 V, control in a multiple projector environment.
Page 31: Preparing The Remote Control
Chapter 1 Preparation — Preparing the remote control Preparing the remote control Inserting and removing the batteries (ii) Fig. 1 Fig. 2 Open the cover. (Fig. 1) Insert the batteries and close the cover (insert the m side first). (Fig. 2) f When removing the batteries, perform the steps in reverse order.
Page 32: Connecting The Remote Control To The Projector With A Cable
Chapter 1 Preparation — Preparing the remote control Connecting the remote control to the projector with a cable If you control the multiple projectors with a single remote control, use commercially available M3 stereo mini jack cables to connect to the <REMOTE 1 IN>/<REMOTE 1 OUT> terminals of the projectors. The remote control is effective even in places where an obstacle stands in the light path or where devices are susceptible to outside light.
Page 33: Chapter 2 Getting Started
Getting Started Chapter 2 This chapter describes things you need to do before using the projector such as the setup and connections. ENGLISH - 33...
Page 34: Setting Up
Chapter 2 Getting Started — Setting up Setting up Usable outlet This projector supports AC100 V to AC120 V, and AC 200 V to AC 240 V as the power supply. A grounding outlet supporting 15 A is required with either voltage. The shape of the usable outlet differs depending on the power supply.
Page 35 Chapter 2 Getting Started — Setting up Portrait setting and projecting forward Portrait setting and projecting from the rear (Using the translucent screen) Menu item Setting value Menu item Setting value [FRONT/REAR] [FRONT] [FRONT/REAR] [REAR] Set in accordance with the image Set in accordance with the image [FLOOR/CEILING] [FLOOR/CEILING]...
Page 36: Parts For Installation (Optional)
Chapter 2 Getting Started — Setting up Parts for installation (optional) The optional Ceiling Mount Bracket is required. The Ceiling Mount Bracket (Model No.: ET‑PKD520H (for High Ceilings), ET‑PKD520S (for Low Ceilings)) is used together with the Ceiling Mount Bracket (Model No.: ET‑PKD520B (Projector Mount Bracket)).
Page 37 Chapter 2 Getting Started — Setting up (Unit: m) Projection lens Model No. Lens protrusion dimension (L1) (approximate value) ET-D3LEW10 0.210 ET-D75LE10 0.125 ET-D3LES20/ET-D75LE20 0.121 ET-D3LET30 0.180 ET-D75LE30 0.121 ET-D3LET40 0.130 ET-D75LE40 0.124 ET-D3LEW50/ET-D75LE50 0.203 ET-D3LEW60/ET-D75LE6 0.212 ET-D3LET80/ET-D75LE8 0.262 Note f For the adjustment range of the projected image position with the lens shift, refer to “Lens shift range” (x page 77). ET-D3LEU100, ET-D3LEW200 Projected image Screen...
Page 38 Chapter 2 Getting Started — Setting up ET-D75LE95, ET-D75LE90 Projected image Screen Screen Note f This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen. f This illustration is not in accurate scale. Projected image height Projected image width Projected image size...
Page 39 Chapter 2 Getting Started — Setting up ET-D3LEF70 Lens optical axis θ Screen Note f This illustration is prepared on the assumption that the projected image size and position have been aligned to fit full in the screen. f This illustration is not in accurate scale. f The lens optical axis is the symmetrical axis passing through the center of the optical image system.
Page 40 Chapter 2 Getting Started — Setting up r Maximum projection angle of view for optical lens center position θ Screen θ Projector θ (Unit: °) Maximum projection angle of view for projected θ 65.7 image horizontal axis Maximum projection angle of view for projected θ...
Page 41 Chapter 2 Getting Started — Setting up [GEOMETRY] projection range [VERTICAL KEYSTONE] (viewed from the side) [HORIZONTAL KEYSTONE] (viewed from above) Screen Screen Vertical arc correction (viewed from the side) Horizontal arc correction (viewed from above) Projection distance Projection distance Arc radius Arc radius Screen Screen...
Page 42 Chapter 2 Getting Started — Setting up Standard status Only [CURVED Only [KEYSTONE] used [KEYSTONE] and [CURVED CORRECTION] used together CORRECTION] used Projection Vertical Horizontal Vertical Horizontal lens Model keystone keystone keystone keystone Min. value of Min. value of Min. value of Min.
Page 43 Chapter 2 Getting Started — Setting up Projection distance of each projection lens A ±5 % error in listed projection distances may occur. When [GEOMETRY] is used, distance is corrected to become smaller than the specified image size. r When the image aspect ratio is 16:10 (Unit: m) Lens type Zoom Lens...
Page 44 Chapter 2 Getting Started — Setting up Lens type Fixed-focus Lens Projection lens Model No. ET-D75LE95 ET-D75LE90 Throw ratio 0.364:1 0.364:1 Distance from the Distance from the Projection Projection Projected image size projector to the screen projector to the screen distance distance Height Diagonal (SD)
Page 45 Chapter 2 Getting Started — Setting up Lens type Zoom Lens Fixed-focus Lens ET-D3LEW50/ Projection lens Model No. ET-D75LE30 ET-D3LET40 ET-D75LE40 ET-D3LET80/ET-D75LE8 ET-D3LEU100 ET-D75LE50 Throw ratio 2.41-4.66:1 4.61-7.41:1 4.62-7.38:1 7.34-13.8:1 0.370:1 0.695:1 Projected image size Projection distance (L) Height Min. Max. Min.
Page 46 Chapter 2 Getting Started — Setting up r When the image aspect ratio is 4:3 (Unit: m) Lens type Zoom Lens ET-D3LEW60/ ET-D3LES20/ Projection lens Model No. ET-D3LEW200 ET-D3LEW10 ET-D75LE10 ET-D3LET30 ET-D75LE6 ET-D75LE20 Throw ratio 0.778-1.02:1 1.12-1.32:1 1.52-2.07:1 1.56-2.01:1 2.00-2.90:1 2.88-5.61:1 Projected image size Projection distance (L) Height...
Page 47 Chapter 2 Getting Started — Setting up Lens type Fixed-focus Lens Projection lens Model No. ET-D75LE95 ET-D75LE90 Throw ratio 0.436:1 0.436:1 Distance from the Distance from the Projection Projection Projected image size projector to the screen projector to the screen distance distance Height Diagonal (SD)
Page 48 Chapter 2 Getting Started — Setting up Formula for calculating the projection distance per projection lens To use a projected image size not listed in this manual, check the projected image size SD (m) and use the respective formula to calculate projection distance. The unit of all the formulae is m.
Page 49: Adjusting Adjustable Feet
Chapter 2 Getting Started — Setting up r Fixed-focus Lens Projection lens Model No. Throw ratio Aspect ratio Projection distance (L) formula 0.370:1 16:10 = 0.3264 x SD - 0.0664 ET-D3LEU100 0.370:1 16:9 = 0.3355 x SD - 0.0664 0.446:1 = 0.3695 x SD - 0.0664 0.694:1 16:10 = 0.6072 x SD - 0.0713...
Page 50: Attaching/Removing The Projection Lens (Optional)
Before attaching the projection lens, remove the lens cover attached to the projection lens. f Panasonic takes no responsibility for any damage or malfunction of the product resulting from the use of projection lenses which are not manufactured by Panasonic. Be sure to use the specified projection lenses.
Page 51: Removing The Projection Lens
Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Insert the projection lens by aligning the mark on the projection lens (orange) with the mark on the projector (E on the left side of LOCK) and turn clockwise until it clicks. (Fig. 3) Secure the projection lens with the supplied lens fixing screw.
Page 52 Chapter 2 Getting Started — Attaching/removing the projection lens (optional) Attach the supplied lens hole cover. (Fig. 2) f Insert the lens hole cover by aligning the mark on the lens hole cover (E) with the mark on the projector (E on the left side of LOCK) and turn clockwise until it clicks.
Page 53: Connecting
Chapter 2 Getting Started — Connecting Connecting Before connecting f Before connecting, carefully read the operating instructions for the external device to be connected. f Turn off the power of all devices before connecting cables. f Take note of the following points before connecting the cables. Failure to do so may result in malfunctions. g When connecting a cable to a device connected to the projector or the projector itself, touch any nearby metallic objects to eliminate static electricity from your body before performing work.
Page 54: Connecting Example: Computers
Chapter 2 Getting Started — Connecting f The projector does not support VIERA Link (HDMI). f It is necessary to switch the setting in the [DISPLAY OPTION] menu → [RGB IN] → [RGB1 INPUT SETTING] (x page 126) when inputting a video signal and the Y/C signal. For <SDI IN 1>/<SDI IN 2>...
Page 55: Connecting Example Using Digital Link
Chapter 2 Getting Started — Connecting Connecting example using DIGITAL LINK Twisted-pair-cable transmitter based on the communication standard HDBaseT such as the optional DIGITAL LINK output supported device (Model No.: ET‑YFB100G, ET‑YFB200G) uses the twisted pair cable to transmit input images, Ethernet, and serial control signal, and the projector can input such digital signal to the <DIGITAL LINK/LAN>...
Page 56: Connecting Example When Using The Contrast Synchronization Function/Shutter Synchronization Function
(https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 57 Chapter 2 Getting Started — Connecting r Connecting example Connect all the projectors to be linked in a loop by daisy chain connection when using the contrast synchronization function/shutter synchronization function. The number of linked projectors is limited to the maximum of 64 projectors. Connecting terminals of the synchronization source Connecting terminals of the projector to synchronize...
Page 58: Chapter 3 Basic Operations
Basic Operations Chapter 3 This chapter describes basic operations to start with. 58 - ENGLISH...
Page 59: Switching On/Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on/off the projector Connecting the power cord To prevent disconnection of the power cord, use the supplied power cord and securely insert all the way in to fix it. Confirm that the <MAIN POWER> switch is on the <OFF> side before connecting the supplied power cord. Use the power cord matching with the power supply voltage and the shape of the outlet.
Page 60: Power Indicator
Chapter 3 Basic Operations — Switching on/off the projector When using the power cord without the lock button Fig. 1 Fig. 2 Confirm that the <MAIN POWER> switch on the side of the projector is on the <OFF> side, and remove the power plug from the outlet. Raise the power cord holder fixing the power cord upward.
Page 61: Switching On The Projector
Chapter 3 Basic Operations — Switching on/off the projector Switching on the projector Install the projection lens before switching on the projector. Remove the lens cover first. Connect the power cord to the projector. Connect the power plug to an outlet. Press the <ON>...
Page 62: When The Initial Setting Screen Is Displayed
Chapter 3 Basic Operations — Switching on/off the projector When the initial setting screen is displayed When the projector is switched on for the first time after purchase, or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen is displayed after the projection starts, followed by the [INITIAL SETTING] screen and the [ADMINISTRATOR ACCOUNT] screen.
Page 63 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (operation setting) Set the items for the operating method depending on the projector’s application and duration of usage. After completed the initial setting, you can change the settings of each item from the [PROJECTOR SETUP] menu →...
Page 64 Chapter 3 Basic Operations — Switching on/off the projector Relationship between brightness and runtime The projector can be operated with arbitrary brightness and runtime by setting [LIGHT OUTPUT] to desired setting. The relationship between the [LIGHT OUTPUT] setting, brightness, and the estimated runtime is as follows. Make the initial setting (operation setting) depending on the desired brightness of the projected image and runtime.
Page 65 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (installation setting) Set [FRONT/REAR] and [FLOOR/CEILING] in [PROJECTION METHOD] depending on the installation mode. Refer to “Installation mode” (x page 34) for details. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [PROJECTION METHOD].
Page 66 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (screen setting) Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
Page 67 Chapter 3 Basic Operations — Switching on/off the projector Initial setting (time zone) Set [TIME ZONE] in accordance with the country or region where you use the projector. After completed the initial setting, you can change the setting from the [PROJECTOR SETUP] menu → [DATE AND TIME].
Page 68: When The Administrator Account Setting Screen Is Displayed
Chapter 3 Basic Operations — Switching on/off the projector When the administrator account setting screen is displayed When the projector is switched on for the first time after purchase, or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen, the [INITIAL SETTING] screen, and then the [ADMINISTRATOR ACCOUNT] screen is displayed in order after the projection starts.
Page 69: Making Adjustments And Selections
Chapter 3 Basic Operations — Switching on/off the projector 10) Press as to select [STORE], and press the <ENTER> button. f The confirmation screen is displayed. 11) Press qw to select [OK], and press the <ENTER> button. Note f For limitation of the character string that can be set as a password, refer to “[PASSWORD POLICY]” (x page 68). f Pressing the <MENU>...
Page 70: Switching Off The Projector
Chapter 3 Basic Operations — Switching on/off the projector 11) Press the <ZOOM> button again to adjust the zoom and match the projected image size to the screen. Note f When the projector is switched on for the first time after purchase, as well as when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, the focus adjustment screen is displayed after projection starts, and then the [INITIAL SETTING] screen is displayed.
Page 71: Projecting
Chapter 3 Basic Operations — Projecting Projecting Check the projection lens attachment (x page 50), external device connection (x page 53), and power cord connection (x page 59), and then switch on the power (x page 61) to start projecting. Select the video for projection, and adjust appearance of the projected image.
Page 72: Adjusting The Focus, Zoom, And Lens Shift
Chapter 3 Basic Operations — Projecting f Set the [DISPLAY OPTION] menu → [RGB IN] → [RGB1 INPUT SETTING] in accordance with the signal input to the <RGB 1 IN> terminal. Switching the input by displaying the input selection screen The input of the image for projection can be selected by displaying the input selection screen. Press the <INPUT MENU>...
Page 73: Adjusting The Focus When The Fixed-Focus Lens (Model No.: Et-D75Le95, Et-D75Le90) Is Used
Chapter 3 Basic Operations — Projecting CAUTION During the lens shift operation, do not insert your hand in any opening around the lens. Your hand may be caught in between, resulting to injury. Note f When the projection lens without the zoom function is attached, the zoom adjustment screen is not displayed. f When the Fixed‑focus Lens (Model No.: ET‑D75LE50) is used, do not adjust the lens shift, and use the projection lens in the home position.
Page 74: Setting The Lens Type
Chapter 3 Basic Operations — Projecting Note f When the projector is used for the first time or when the projection lens is replaced, confirm that the setting in the [PROJECTOR SETUP] menu → [LENS] → [LENS TYPE] is appropriate, and then execute the [PROJECTOR SETUP] menu → [LENS] → [LENS CALIBRATION]. f The projected image size and scale shown on the periphery focus adjustment ring are an approximate guide.
Page 75 Chapter 3 Basic Operations — Projecting Press qw to select [OK], and press the <ENTER> button. f The lens calibration is started. f After completing the calibration in the adjustment range, the projection lens will move to the home position. Note f [LENS CALIBRATION] cannot be executed when the [PROJECTOR SETUP] menu →...
Page 76: Moving The Projection Lens To The Home Position
Chapter 3 Basic Operations — Projecting Moving the projection lens to the home position Operate in following procedure to move the projection lens to the home position. When operating from the main menu Press the <MENU> button. f The [MAIN MENU] screen is displayed. Press as to select [PROJECTOR SETUP].
Page 77: Lens Shift Range
Chapter 3 Basic Operations — Projecting Lens shift range The projector can adjust the position of the projected image within the lens shift range for each projection lens based on the position of the projected image in the home position (standard projection position). Perform the lens shift adjustment within the range indicated in the following illustration.
Page 78: Adjusting The Lens Mounter When The Focus Is Unbalanced
Chapter 3 Basic Operations — Projecting Projection lens Model No. ET-D75LE95 ET-D75LE90 Projected image width H Projected image width H 0.06 H 0.06 H 0.12 H 0.12 H Lens shift range Standard projection position Standard projection position Origin position of the lens Origin position of the lens mounter mounter...
Page 79 Chapter 3 Basic Operations — Projecting How to adjust the focus balance (adjustment by tilting the lens mounter) When the entire screen surface is not uniform even if the focus has been adjusted, the lens mounter has focus adjustment screws in three locations. f Tool used: Hex driver or Allen wrench (diagonal 4.0 mm (5/32")) f The Allen wrench supplied with the projection lens ET-D75LE6 or ET-D75LE8 cannot be used.
Page 80 Chapter 3 Basic Operations — Projecting Press a to stop on any part of the screen to be the first just focus point. f For the location where focus is shifted in this state, the just focus point is on the inner side of the screen. Loosen the fixed screws in the position relative to the location where the focus is shifted the most (the location where the just focus point is shifted the most towards the inner side in Step 2)) up to one and half rotations.
Page 81: Operating With The Remote Control
Chapter 3 Basic Operations — Operating with the remote control Operating with the remote control Using the shutter function If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible to turn off the image temporarily. button Press the <SHUTTER>...
Page 82: Using The Automatic Setup Function
Chapter 3 Basic Operations — Operating with the remote control Note f The hide condition of the on-screen display can also be canceled by pressing the <MENU> button on the control panel for at least three seconds while the on‑screen display is off (hidden). Using the automatic setup function The image position when the DVI-D/HDMI signal is input, or the resolution, clock phase, and image position when the analog RGB signal is input can be adjusted automatically.
Page 83: Displaying Internal Test Pattern
Using the status function Display the status of the projector. button Press the <STATUS> button. f The [STATUS] screen is displayed. STATUS PROJECTOR TYPE PT-RZ16K SERIAL NUMBER 123456789012 PROJECTOR RUNTIME 10000h LIGHT RUNTIME 10000h / 10000h CONTINUOUS LIGHTING TIME...
Page 84: Using The Ac Voltage Monitor Function
Chapter 3 Basic Operations — Operating with the remote control Using the AC voltage monitor function The value of input supply voltage can be displayed on the self-diagnosis display at the side of the projector. r To display during projection Press the power on <b> button. f The value of the input supply voltage is displayed only as numeric value on the self-diagnosis display.
Page 85: Chapter 4 Settings
Settings Chapter 4 This chapter describes the settings and adjustments you can make using the on-screen menu. ENGLISH - 85...
Page 86: Menu Navigation
Chapter 4 Settings — Menu navigation Menu navigation The on‑screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button Press the <MENU> button on the remote control or control panel. f The [MAIN MENU] screen is displayed.
Page 87: Main Menu
Chapter 4 Settings — Menu navigation Press as to select a sub-menu, and press qw or the <ENTER> button to change or adjust settings. f Some items will switch in order as follows each time you press qw. f For some items, press qw to display an individual adjustment screen with a bar scale as shown below. CONTRAST ADJUST Note...
Page 88: Sub-Menu
Chapter 4 Settings — Menu navigation Main menu item [SIMPLE] mode Page [ADVANCED MENU] ― [DISPLAY LANGUAGE] [3D SETTINGS] ― [DISPLAY OPTION] [PROJECTOR SETUP] [P IN P] ― [TEST PATTERN] [SIGNAL LIST] [SECURITY] ― [NETWORK] Sub-menu The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu. The menu item with l in the [SIMPLE] mode column indicates that this is displayed in the menu screen (OSD) when the [DISPLAY OPTION] menu →...
Page 89 Chapter 4 Settings — Menu navigation [ADVANCED MENU] Sub-menu item Factory default [SIMPLE] mode Page [DIGITAL CINEMA REALITY] [AUTO] ― [BLANKING] ― ― [INPUT RESOLUTION] ― ― [CLAMP POSITION] [24] ― [EDGE BLENDING] [OFF] ― [FRAME RESPONSE] [NORMAL] ― [FRAME DELAY] [+0.00ms] ―...
Page 90 Chapter 4 Settings — Menu navigation Sub-menu item Factory default [SIMPLE] mode Page [UNIFORMITY] ― ― [SHUTTER SETTING] ― ― [FREEZE] ― ― [WAVEFORM MONITOR] [OFF] ― [CUT OFF] ― ― [PROJECTOR SETUP] Sub-menu item Factory default [SIMPLE] mode Page [PROJECTOR ID] [ALL] [PROJECTION METHOD] ―...
Page 91 Chapter 4 Settings — Menu navigation [NETWORK] Sub-menu item Factory default [SIMPLE] mode Page [DIGITAL LINK] ― [WIRED LAN] ― [PROJECTOR NAME] ― [NETWORK STATUS] ― [ADMINISTRATOR ACCOUNT] ― [NETWORK CONTROL] ― [PJLink] ― [Art-Net] ― ― Note f Some items may not be adjusted or used for certain signal formats to be input to the projector. When the items cannot be adjusted or used, the items in the menu screen are shown in black characters, and they cannot be adjusted or set.
Page 92: [Picture] Menu
Chapter 4 Settings — [PICTURE] menu [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
Page 93: [Brightness]
Chapter 4 Settings — [PICTURE] menu Attention f Adjust [BRIGHTNESS] first when you need to adjust the black level. [BRIGHTNESS] You can adjust the dark (black) part of the projected image. Press as to select [BRIGHTNESS]. Press qw or the <ENTER> button. f The [BRIGHTNESS] individual adjustment screen is displayed.
Page 94 Chapter 4 Settings — [PICTURE] menu [USER1] Adjusts white balance as desired. Refer to “Adjusting desired white balance” (x page 94) for details. [USER2] [3200K] - [9300K] Allows you to set in increments of 100 K. Select so that images become natural. Note f When [PICTURE MODE] (x page 92) is set to [USER] or [DICOM SIM.], [DEFAULT] cannot be selected.
Page 95: [Gamma]
Chapter 4 Settings — [PICTURE] menu Press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. f The [USER1] or [USER2] data is overwritten. f If you press qw to select [CANCEL] and then press the <ENTER> button, the data will not be overwritten. f The [WHITE BALANCE HIGH] screen is displayed.
Page 96: [System Daylight View]
Chapter 4 Settings — [PICTURE] menu [1.0] [1.8] Set so that images become as you like. [2.0] - [2.8] can be set in increments of 0.1. [2.0] - [2.8] *1 When [PICTURE MODE] is set to [DYNAMIC], [USER], or [DICOM SIM.], [DEFAULT] cannot be selected. Note f DICOM is an abbreviation of “Digital Imaging and COmmunication in Medicine”...
Page 97: [Noise Reduction]
Chapter 4 Settings — [PICTURE] menu Note f If you press w while the adjustment value is [+15], the value will become [0]. If you press q while the adjustment value is [0], the value will become [+15]. [NOISE REDUCTION] You can reduce noises when the input image is degraded and noise is occurring in the image signal. Press as to select [NOISE REDUCTION].
Page 98: [Color Space]
Chapter 4 Settings — [PICTURE] menu Setting item Details Adjusts the light source when the brightness level of the video [BRIGHT SIGNAL LEVEL] signal being input gets lower than the set value. The higher the (Setting of the brightness level [6%] - [50%] value, the larger the range to perform the light adjustment of the of the signal to start the light light source.
Page 99: [System Selector]
Chapter 4 Settings — [PICTURE] menu Note f DCI‑P3 is the specifications of the digital cinema color region defined by the Digital Cinema Initiatives (DCI). [SYSTEM SELECTOR] The projector will automatically detect the input signal, but you can set the system method manually when an unstable signal is input.
Page 100: [Position] Menu
Chapter 4 Settings — [POSITION] menu [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. Note f When the optional DIGITAL LINK output supported device (Model No.: ET‑YFB100G, ET‑YFB200G) is connected to the <DIGITAL LINK/ LAN>...
Page 101: [Zoom]
Chapter 4 Settings — [POSITION] menu The projector identifies the video ID (VID) embedded in the video signals and displays the image by [VID AUTO] automatically switching the screen sizes between 4:3 and 16:9. This function is effective for NTSC signals. The projector identifies the video ID (VID) embedded in the video signals and displays the image by [AUTO] automatically switching the screen sizes between 4:3 and 16:9.
Page 102: [Clock Phase]
Chapter 4 Settings — [POSITION] menu Note f When [ASPECT] is set to [THROUGH], [ZOOM] cannot be adjusted. When [ASPECT] is set to [DEFAULT] Press as to select [ZOOM]. Press the <ENTER> button. f The [ZOOM] screen is displayed. Press as to select [MODE]. Press qw to switch the item.
Page 103 Chapter 4 Settings — [POSITION] menu [OFF] Does not perform geometric adjustment. [KEYSTONE] Adjusts any trapezoidal distortion in the projected image. [CORNER/PINCUSHION] Adjusts any distortion in the four corners of the projected image. [CURVED CORRECTION] Adjusts any curved distortion in the projected image. [PC-1] [PC-2] Performs geometric adjustment using a computer.
Page 104 Chapter 4 Settings — [POSITION] menu [CURVED CORRECTION] [LENS THROW RATIO] Set the throw ratio. Select the value close to the actual projection distance divided by projected image width here. [VERTICAL KEYSTONE] [HORIZONTAL KEYSTONE] [VERTICAL ARC] [HORIZONTAL ARC] [VERTICAL BALANCE] [HORIZONTAL BALANCE] [MAINTAIN ASPECT RATIO] Select [ON] to correct while keeping the aspect ratio.
Page 105 Chapter 4 Settings — [POSITION] menu [CORNER/PINCUSHION] [UPPER LEFT] [UPPER RIGHT] [LOWER LEFT] [LOWER RIGHT] [LINEARITY] Horizontal direction Vertical direction [PINCUSHION] [UPPER] [LOWER] [LEFT] [RIGHT] [FREE GRID] Finer adjustment is possible by selecting the points or lines to be corrected. For details of operation, refer to “Adjusting distortion with [FREE GRID]” (x page 105). Adjusting to desired linearity Press as to select [GEOMETRY].
Page 106 Chapter 4 Settings — [POSITION] menu [OFF] Disables the adjustment to be performed with [FREE GRID]. [ON] Enables the adjustment to be performed with [FREE GRID]. f Proceed to Step 6) when [ON] is selected. Press the <ENTER> button. f The [FREE GRID] screen is displayed. Press as to select [GRID RESOLUTION].
Page 107 Chapter 4 Settings — [POSITION] menu [WHITE] [BLACK] [RED] Select the color of the marker that indicates the control point. [GREEN] The marker that indicates the control point is displayed in the control point selection mode and adjustment mode. [BLUE] (Factory default setting: [WHITE]) [CYAN] [MAGENTA] [YELLOW]...
Page 108 Chapter 4 Settings — [POSITION] menu Note f Each correction data for [KEYSTONE], [CORNER/PINCUSHION], [CURVED CORRECTION], [PC-1], [PC-2], and [PC-3] cannot be initialized at once. To initialize all the correction data, select each item and execute [INITIALIZE] individually. f When the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed, all the correction data for [FREE GRID] is initialized.
Page 109: [Advanced Menu] Menu
Chapter 4 Settings — [ADVANCED MENU] menu [ADVANCED MENU] menu On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. [DIGITAL CINEMA REALITY] The picture quality is enhanced by raising the vertical resolution higher performing the cinema processing when 576/50i signal for PAL (or SECAM), 480/60i signal for NTSC, and 1080/50i or 1080/60i signal is input.
Page 110: [Input Resolution]
Chapter 4 Settings — [ADVANCED MENU] menu Blanking correction Item Operation Adjustment Range of adjustment The blanking zone Press w. moves to the right. Left side of the [LEFT] screen The blanking zone Press q. moves to the left. Left and right 0 - 1 918 The blanking zone Press q.
Page 111: [Edge Blending]
Chapter 4 Settings — [ADVANCED MENU] menu [EDGE BLENDING] The edge blending function allows multiple projector images to be seamlessly overlapped by using the inclination of the brightness at the overlapped area. Press as to select [EDGE BLENDING]. Press qw to switch the item. f The items will switch each time you press the button.
Page 112: [Frame Response]
Chapter 4 Settings — [ADVANCED MENU] menu 14) Press as to select an item, and press qw to adjust the setting. f Once the adjustment is completed, press the <MENU> button to return to the [BRIGHTNESS ADJUST] screen. 15) Press as to select [UPPER], [LOWER], [LEFT], or [RIGHT] in [BLACK BORDER WIDTH]. 16) Press qw to set the region (width) of the [BLACK BORDER WIDTH] adjustment.
Page 113: [Frame Delay]
Chapter 4 Settings — [ADVANCED MENU] menu Press qw to switch the item. f The items will switch each time you press the button. [NORMAL] Standard setting. [FAST] Simplifies the image processing to reduce image frame delay. [FIXED] Sets image frame delay to be constant regardless of the image position or magnification. *1 When input signals are other than interlaced signals, [FAST] cannot be set.
Page 114: [Frame Lock]
Chapter 4 Settings — [ADVANCED MENU] menu g Set [FRAME RESPONSE] to [FAST]. g Set the [DISPLAY OPTION] menu → [SIMUL INPUT SETTING] to [AUTO(3D)] or [AUTO(2D)] to display an image in simultaneous format Setting [FILM DETECTION] Set the film detection function to enhance the video resolution by determining if it is a content that the telecine is performed on the input signal.
Page 115: [Display Language] Menu
Chapter 4 Settings — [DISPLAY LANGUAGE] menu [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. Changing the display language You can select the language of the on-screen display.
Page 116: [3D Settings] Menu
Chapter 4 Settings — [3D SETTINGS] menu [3D SETTINGS] menu On the menu screen, select [3D SETTINGS] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. [3D SYSTEM SETTING] Set the image display method to be used during 3D signal input, according to the 3D system in use.
Page 117: [3D Input Format]
3D trigger output is selected. Note f [11] in [3D SYNC MODE] is the setting when the 3D IR transmitter TY‑3DTRW of Panasonic (production discontinued) is used with the projector. Consult your dealer regarding the connection method. f The following settings are disabled and the contrast synchronization function and shutter synchronization function cannot be used when [3D SYNC SETTING] is set to anything other than [OFF].
Page 118: [3D Color Matching]
Chapter 4 Settings — [3D SETTINGS] menu [3D COLOR MATCHING] Switch the color matching correction data applied to displayed image. Press as to select [3D COLOR MATCHING]. Press qw to switch the item. f The items will switch each time you press the button. [SHARED 2D/3D] Uses same correction data for 2D signal and 3D signal.
Page 119: [3D Test Mode]
Chapter 4 Settings — [3D SETTINGS] menu [0.5ms] [1.0ms] [1.5ms] Sets an item so that 3D setting is made correctly. [2.0ms] [2.5ms] [2.7ms] Note f This function is disabled when [3D SYSTEM SETTING] is set to anything other than [SINGLE]. f The crosstalk may get larger or the displayed image may get darker when the setting does not match with the 3D system in use. [3D TEST MODE] Set the image display mode for use with 3D system adjustments.
Page 120: [Safety Precautions Message]
Chapter 4 Settings — [3D SETTINGS] menu [SAFETY PRECAUTIONS MESSAGE] Set to show or hide the safety precautions message related to 3D viewing when the projector is switched on. Press as to select [SAFETY PRECAUTIONS MESSAGE]. Press qw to switch the item. f The items will switch each time you press the button.
Page 121: [Display Option] Menu
Chapter 4 Settings — [DISPLAY OPTION] menu [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. [COLOR MATCHING] Correct the color difference between projectors when using multiple projectors simultaneously.
Page 122: [Large Screen Correction]
Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [MEASURED DATA]. Press the <ENTER> button. f The [MEASURED DATA] screen is displayed. Measure the current luminance (Y) and the chromaticity coordinates (x, y) using the colorimeter. Press as to select a color, and press qw to adjust the setting. f Set [AUTO TESTPATTERN] to [ON] to display a test pattern of selected colors.
Page 123: [Auto Signal]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to adjust [SCREEN POSITION]. [AUTO SIGNAL] Set whether to execute automatic setup of signals automatically. The screen display position or signal level can be adjusted automatically without pressing the <AUTO SETUP> button on the remote control on each occasion if you input unregistered signals frequently at meetings, etc. Press as to select [AUTO SIGNAL].
Page 124: [Backup Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu [OFF] Does not perform automatic adjustment. Adjusting signal level automatically Press as to select [AUTO SETUP]. Press the <ENTER> button. f The [AUTO SETUP] screen is displayed. Press as to select [SIGNAL LEVEL ADJUST]. Press qw to switch the item.
Page 125: [Simul Input Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu g Display the image of the primary input or secondary input. f If the input is switched to other than the primary or secondary input while the backup function is ready for use, the state of readiness to use the backup function is canceled.
Page 126: [Rgb In]
Chapter 4 Settings — [DISPLAY OPTION] menu f [HDMI/DVI‑D] or [SDI1/SDI2] in [SIMUL INPUT SETTING] (including the input set as the primary input or the secondary input) is fixed to [OFF] when the [DISPLAY OPTION] menu → [BACKUP INPUT SETTING] → [BACKUP INPUT MODE] is set to anything other than [OFF]. f [SDI1/SDI2] in [SIMUL INPUT SETTING] is fixed to [OFF] when the [DISPLAY OPTION] menu →...
Page 127: [Dvi-D In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [RGB2 EDID MODE] screen is displayed. Press qw to switch [EDID MODE]. f The items will switch each time you press the button. [DEFAULT] Standard setting. [SCREEN FIT] Changes EDID data according to the [SCREEN FORMAT] setting.
Page 128 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [EDID SELECT] in [DVI-D IN] Press as to select [DVI-D IN]. Press the <ENTER> button. f The [DVI-D IN] screen is displayed. Press as to select [EDID SELECT]. Press qw to switch the item. f The items will switch each time you press the button.
Page 129: [Hdmi In]
Chapter 4 Settings — [DISPLAY OPTION] menu Note f The setting details are displayed in [RESOLUTION] and [VERTICAL SCAN FREQUENCY] of [EDID STATUS]. f The resolution and vertical scanning frequency settings may also be required on your computer or video device. f After configuring settings, your computer or video device or the projector may be required to be turned off and on.
Page 130: [Digital Link In]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to select [VERTICAL SCAN FREQUENCY]. f Select [60Hz], [50Hz], [30Hz], [25Hz], or [24Hz] when [1920x1080p] is selected for [RESOLUTION]. f Select [60Hz], [50Hz], or [48Hz] when [1920x1080i] is selected for [RESOLUTION]. f Select [60Hz] or [50Hz] when anything other than following is selected for [RESOLUTION]. g [1920x1080p], [1920x1080i] 10) Press the <ENTER>...
Page 131: [Sdi In]
Chapter 4 Settings — [DISPLAY OPTION] menu f When [DEFAULT] or [SCREEN FIT] is selected, proceed to Step 10). Press the <ENTER> button. f The [RESOLUTION] screen is displayed. Press asqw to select [RESOLUTION]. f Select [1024x768p], [1280x720p], [1280x768p], [1280x800p], [1280x1024p], [1366x768p], [1400x1050p], [1440x900p], [1600x900p], [1600x1200p], [1680x1050p], [1920x1080p], [1920x1080i], or [1920x1200p].
Page 132 Chapter 4 Settings — [DISPLAY OPTION] menu Setting [RESOLUTION] in [SDI IN] Press as to select [SDI IN]. Press the <ENTER> button. f The [SDI IN] screen is displayed. Press as to select [SINGLE LINK SETTING] or [DUAL LINK SETTING], and press the <ENTER> button.
Page 133 Chapter 4 Settings — [DISPLAY OPTION] menu Press as to select [SDI1] or [SDI2], and press the <ENTER> button. f The [SINGLE LINK SETTING] or [DUAL LINK SETTING] screen of the selected item is displayed. Press as to select [SYSTEM SELECTOR]. Press qw to switch the item.
Page 134: [On-Screen Display]
Chapter 4 Settings — [DISPLAY OPTION] menu [ON-SCREEN DISPLAY] Set the on-screen display. Setting [OSD POSITION] Set the position of the menu screen (OSD). Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER> button. f The [ON-SCREEN DISPLAY] screen is displayed. Press as to select [OSD POSITION].
Page 135 Chapter 4 Settings — [DISPLAY OPTION] menu Sets to brown. Setting [OSD MEMORY] Set hold for the position of the menu screen (OSD) cursor. Press as to select [ON-SCREEN DISPLAY]. Press the <ENTER> button. f The [ON-SCREEN DISPLAY] screen is displayed. Press as to select [OSD MEMORY].
Page 136: [Menu Mode]
[USER LOGO] Displays the image registered by the user. Note f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). [STARTUP LOGO] Set the logo display when the power is turned on.
Page 137: [Uniformity]
When [USER LOGO] is selected, the display of the startup logo will be kept for approximately 15 seconds. f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/).
Page 138: [Shutter Setting]
Chapter 4 Settings — [DISPLAY OPTION] menu Press qw to switch the item. f The items will switch each time you press the button. Corrects only the color unevenness. Select this item to prioritize the brightness of the whole projected [CHROMA ONLY] image.
Page 139 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button. f The [SHUTTER SETTING] screen is displayed. Press as to select [STARTUP]. Press qw to switch the item. The projector goes into projection mode with the shutter function disabled (shutter: opened) when the [OPEN] power is turned on.
Page 140: [Freeze]
Chapter 4 Settings — [DISPLAY OPTION] menu f When anything other than [OFF] is selected, the diagnostic result is displayed in [LINK STATUS], indicating if all the projectors including the projectors targeted for synchronization are correctly connected, and if [MODE] is correctly set. All the projectors are correctly connected, and correctly set.
Page 141 Chapter 4 Settings — [DISPLAY OPTION] menu Press the <ENTER> button to switch the Select line to either luminance, red, green, or blue. f Line selection items switch each time the <ENTER> button is pressed only when the waveform monitor is displayed.
Page 142: [Cut Off]
Chapter 4 Settings — [DISPLAY OPTION] menu [CUT OFF] Each red, green, and blue color component can be removed. Press as to select [CUT OFF]. Press the <ENTER> button. f The [CUT OFF] screen is displayed. Press as to select [RED], [GREEN], or [BLUE]. Press qw to switch the item.
Page 143: [Projector Setup] Menu
Chapter 4 Settings — [PROJECTOR SETUP] menu [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item from the sub- menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. [PROJECTOR ID] The projector has an ID number setting function that can be used when multiple projectors are used side by side to enable simultaneous control or individual control via a single remote control.
Page 144: [Lens]
Chapter 4 Settings — [PROJECTOR SETUP] menu Select this item when installing the projector with the top surface of the projector facing down such as [CEILING] ceiling attachment. Projected image is inverted upside down. Note f Refer to “Angle sensor” (x page 35) for details on the range of the installation attitude that can be detected by the built-in angle sensor. [LENS] Perform the setting and operation regarding the projection lens.
Page 145 Chapter 4 Settings — [PROJECTOR SETUP] menu [LENS INFORMATION SETTING] Confirming the projection lens information Press as to select [LENS]. Press the <ENTER> button. f The [LENS] screen is displayed. Press as to select [LENS INFORMATION SETTING]. Press the <ENTER> button. f The [LENS INFORMATION SETTING] screen is displayed.
Page 146 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [LENS INFORMATION SETTING] screen is displayed. Press as to select [LENS NAME]. Press the <ENTER> button. f The [LENS NAME INPUT] screen is displayed. Press asqw to select the character, and press the <ENTER> button to enter the character. Press asqw to select [OK], and press the <ENTER>...
Page 147 Chapter 4 Settings — [PROJECTOR SETUP] menu Note f The numeric value information of the zoom position is displayed only in following cases. g When the standard DC motor unit installed in the Zoom Lens (Model No.: ET‑D75LE6, ET‑D75LE8, ET‑D75LE10, ET‑D75LE20, ET‑D75LE30, ET‑D75LE40, etc.) is replaced with the stepping motor unit using the Stepping Motor Kit (Model No.: ET‑D75MKS10) g When the projection lens with stepping motor is attached Loading the lens position...
Page 148 Chapter 4 Settings — [PROJECTOR SETUP] menu f The name of the saved lens memory and its lens position information ([VERTICAL POSITION]/ [HORIZONTAL POSITION]/[FOCUS POSITION]/[ZOOM POSITION]) are displayed in the [LENS MEMORY DELETE] screen. Press as to select the item to delete, and press the <ENTER> button. f The confirmation screen is displayed.
Page 149 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [LENS] screen is displayed. Press as to select [LENS HOME POSITION]. Press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. f [PROGRESS] is displayed in the [HOME POSITION] screen, and the projection lens is moved to the origin position.
Page 150 Chapter 4 Settings — [PROJECTOR SETUP] menu Performing simplified setting using the internal test pattern Set the parameters for [FOCUS OFFSET BRIGHT] and [FOCUS OFFSET DARK] using the test pattern built in the projector following the guidance of [SETUP ASSISTANT]. Press as to select [LENS]. Press the <ENTER>...
Page 151 Chapter 4 Settings — [PROJECTOR SETUP] menu f It will return to previous screen by selecting [BACK] and pressing the <ENTER> button. 18) Wait until [Waiting time] turns [0s]. f Wait until the focus is stabilized. f When the [Waiting time] turns [0s], the [Please wait...] message disappears, and [NEXT] becomes selectable.
Page 152 Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [ACTIVE FOCUS OPTIMIZER]. Press the <ENTER> button. f The [ACTIVE FOCUS OPTIMIZER] screen is displayed. Press as to select [FOCUS OFFSET SETUP]. Press the <ENTER> button. f The [FOCUS OFFSET SETUP] screen is displayed. Press as to select [SETUP ASSISTANT].
Page 153 Chapter 4 Settings — [PROJECTOR SETUP] menu 20) Press qw to select [NEXT], and press the <ENTER> button. f The [SETUP ASSISTANT] screen (page 5/8) is displayed. f It will return to previous screen by selecting [BACK] and pressing the <ENTER> button. 21) Press asqw to select [FOCUS POSITION].
Page 154 Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [FOCUS OFFSET SETUP] screen is displayed. Press as to select [FOCUS OFFSET BRIGHT] or [FOCUS OFFSET DARK]. Press qw to set the parameter. Displaying the test pattern The internal focus test pattern used with [SETUP ASSISTANT] is displayed. Press as to select [LENS].
Page 155 Chapter 4 Settings — [PROJECTOR SETUP] menu Zoom Lens with DC motor, the Fixed-focus Lens This section describes the operating procedure when the Zoom Lens (Model No.: ET‑D75LE6, ET‑D75LE8, ET-D75LE10, ET-D75LE20, ET-D75LE30, ET-D75LE40, etc.) in which the DC motor has not been replaced with the stepping motor unit is attached, or when the Fixed‑focus Lens (Model No.: ET‑D75LE50, ET‑D75LE95, ET‑D75LE90, etc.) without the zoom function is attached.
Page 156: [Operation Setting]
Chapter 4 Settings — [PROJECTOR SETUP] menu f To cancel, select [CANCEL]. Note f [LENS CALIBRATION] cannot be executed when the [PROJECTOR SETUP] menu → [LENS] → [LENS TYPE] is set to [NOT SELECTED]. f [PROGRESS] is displayed in the menu during lens calibration. The operation cannot be canceled during calibration. f [INCOMPLETE] is displayed when the lens calibration is not performed correctly.
Page 157 Chapter 4 Settings — [PROJECTOR SETUP] menu Operation Adjustment Range of adjustment Press w. Increases the maximum level of brightness correction. 8.0 % ‑ 100.0 % Press q. Decreases the maximum level of brightness correction. Press as to select [APPLY]. Press the <ENTER> button. f The confirmation screen is displayed.
Page 158 Chapter 4 Settings — [PROJECTOR SETUP] menu Relationship between brightness and runtime The projector can be operated with arbitrary brightness and runtime by combining the settings of [MAX LIGHT OUTPUT LEVEL], [LIGHT OUTPUT], and [CONSTANT MODE] in [BRIGHTNESS CONTROL SETUP]. The relationship between the [LIGHT OUTPUT] setting, brightness, and the estimated runtime is as follows. Make the setting depending on the desired brightness of the projected image and runtime.
Page 159: [Light Output]
Synchronizes nine or more projectors using a computer and the dedicated software “Multi Monitoring [PC] & Control Software” *1 “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). f When [PC] is selected, proceed to Step 9). Press as to select [LINK].
Page 160 Chapter 4 Settings — [PROJECTOR SETUP] menu Performs corrections by the brightness sensor on a single projector without synchronizing with the other projectors. [OFF] The duration that the constant brightness is kept will become longer by setting the value of [LIGHT OUTPUT] smaller.
Page 161 Chapter 4 Settings — [PROJECTOR SETUP] menu [BRIGHTNESS CONTROL STATUS] screen display example When [CONSTANT MODE] is set to [OFF] The screen shows the status that the brightness control is disabled. BRIGHTNESS CONTROL STATUS CONSTANT MODE PROJECTOR RETURN MENU When [CONSTANT MODE] is set to [AUTO], and [LINK] is set to [OFF] The screen shows the status of the brightness control in one projector.
Page 162 There is a problem with the brightness sensor. If problems persist even after switching on the [Brightness Sensor Error] power, consult your dealer. *1 “Multi Monitoring & Control Software” can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). Note f If the synchronized projectors are not displayed in the list, check the following:...
Page 163: [Standby Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu maximum value that can be set. 12) Adjust [LIGHT OUTPUT] of each projector. f Adjust [LIGHT OUTPUT] of all the other projectors so that the brightness will be the same as the projector with the least brightness. 13) Set [CONSTANT MODE] of [BRIGHTNESS CONTROL SETUP] to [AUTO], and [LINK] to [GROUP A] in all projectors.
Page 164: [Initial Startup]
The no signal lights-out function is disabled in following cases. g When the [DISPLAY OPTION] menu → [BACK COLOR] is set to [DEFAULT LOGO] or [USER LOGO], and the Panasonic logo or the image registered by the user is displayed on the projected image g When the [SECURITY] menu →...
Page 165: [Schedule]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [TIME ZONE]. Press qw to switch [TIME ZONE]. Setting the date and time manually Press as to select [DATE AND TIME]. Press the <ENTER> button. f The [DATE AND TIME] screen is displayed. Press as to select [ADJUST CLOCK].
Page 166 Switches the input to DIGITAL LINK. [SDI1] Switches the input to SDI1. [SDI2] Switches the input to SDI2. Switches the input to DIGITAL LINK, and switches the input of the [INPUT1] - [INPUT10] Panasonic twisted‑pair‑cable transmitter to the specified input. 166 - ENGLISH...
Page 167: [Multi Projector Sync]
Chapter 4 Settings — [PROJECTOR SETUP] menu Detailed settings of [COMMAND] Description [COMMAND] [NORMAL] Prioritizes luminance. Controls the power to increase the life of the light source with higher [ECO] luminance. [OPERATING MODE] [USER1] Controls the power with the setting set to [USER1]. [USER2] Controls the power with the setting set to [USER2].
Page 168 Chapter 4 Settings — [PROJECTOR SETUP] menu Press as to select [MODE]. Press qw to switch the item. f The items will switch each time you press the button. Select this item when the contrast synchronization function and the shutter synchronization function [OFF] are not used.
Page 169 Chapter 4 Settings — [PROJECTOR SETUP] menu All the projectors are correctly connected, and correctly set. They are in the condition that the contrast [LINKED] synchronization function or the shutter synchronization function can be used. The projectors are not correctly connected, or not correctly set. Check the cable connection status [NO LINK] and the projector setting for each projector that is linked.
Page 170 Chapter 4 Settings — [PROJECTOR SETUP] menu Setting the communication condition of the <SERIAL OUT> terminal Press as to select [RS-232C]. Press the <ENTER> button. f The [RS-232C] screen is displayed. Press as to select [(OUT) BAUDRATE]. Press qw to switch the item. f The items will switch each time you press the button.
Page 171: [Remote2 Mode]
Chapter 4 Settings — [PROJECTOR SETUP] menu [REMOTE2 MODE] You can set the <REMOTE 2 IN> terminal. Press as to select [REMOTE2 MODE]. Press qw to switch the item. f The items will switch each time you press the button. [DEFAULT] Uses pin assignment of the <REMOTE 2 IN>...
Page 172 Chapter 4 Settings — [PROJECTOR SETUP] menu Displays the elapsed time from when the light source is illuminated. [CONTINUOUS LIGHTING The elapsed time after the illumination of the light source can be confirmed when adjusting the focus. TIME] The elapsed time is reset when the light source is temporarily turned off such as using the shutter function.
Page 173: [Ac Voltage Monitor]
Chapter 4 Settings — [PROJECTOR SETUP] menu [INPUT] Displays the input terminal used for the projected image. [SIGNAL FORMAT] Displays the format of the input signal. [SIGNAL FREQUENCY] Displays the frequency of the input signal. [SCAN TYPE] Displays the scan type of the input signal. [TOTAL DOTS] Displays the total dot count of the input signal.
Page 174: [Load All User Data]
Chapter 4 Settings — [PROJECTOR SETUP] menu Press the <ENTER> button. f The [SECURITY PASSWORD] screen is displayed. Enter a security password and press the <ENTER> button. f The confirmation screen is displayed. Press qw to select [OK], and press the <ENTER> button. f [PROGRESS] is displayed while saving data.
Page 175: [Service Password]
Chapter 4 Settings — [PROJECTOR SETUP] menu Note f The security password is the password set in the [SECURITY] menu → [SECURITY PASSWORD CHANGE]. Initial password of the factory default setting: awsqawsq f The following settings are not initialized even if [ALL USER DATA] is executed. g The [PROJECTOR SETUP] menu →...
Page 176: [P In P] Menu
Chapter 4 Settings — [P IN P] menu [P IN P] menu On the menu screen, select [P IN P] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. Using P IN P function Locate a separate, small sub screen in the main screen to project two images simultaneously.
Page 177 Chapter 4 Settings — [P IN P] menu 16) Press qw to switch the item. [MAIN WINDOW] The main window has display priority. [SUB WINDOW] The sub window has display priority. Note f The P IN P function may not be available for some signals being input or terminals being selected. Refer to “Two-window display combination list”...
Page 178: [Test Pattern] Menu
Chapter 4 Settings — [TEST PATTERN] menu [TEST PATTERN] menu On the menu screen, select [TEST PATTERN] from the main menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. [TEST PATTERN] Display the test pattern built-in to the projector. Settings of position, size, and other factors will not be reflected in test patterns.
Page 179: [Signal List] Menu
Chapter 4 Settings — [SIGNAL LIST] menu [SIGNAL LIST] menu On the menu screen, select [SIGNAL LIST] from the main menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. r Registered signal details Memory number: A1 (1-2) Sub memory number...
Page 180: Protecting The Registered Signal
Chapter 4 Settings — [SIGNAL LIST] menu f To cancel the deletion, press the <MENU> button to return to the [REGISTERED SIGNAL LIST] screen. Press the <ENTER> button. f The selected signal will be deleted. Note f A registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen. Protecting the registered signal Press asqw to select the signal to protect.
Page 181: Sub Memory
Chapter 4 Settings — [SIGNAL LIST] menu f This function can be used when a signal is input from the <RGB 1 IN> terminal, the <RGB 2 IN> terminal, <DVI-D IN> terminal, the <HDMI IN> terminal, or the <DIGITAL LINK/LAN> terminal. f When [WIDE] is set, the image may be distorted because a signal is recognized as the same even if its synchronizing frequency varies slightly.
Page 182: [Security] Menu
Chapter 4 Settings — [SECURITY] menu [SECURITY] menu On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. f When the projector is used for the first time Initial password: Press awsqawsq in order, and press the <ENTER>...
Page 183: [Text Change]
[USER LOGO] Displays the image registered by the user. Note f To create and register the [USER LOGO] image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/). [TEXT CHANGE] Edit the text to be displayed when [TEXT] is selected in [DISPLAY SETTING].
Page 184: [Control Device Password Change]
Chapter 4 Settings — [SECURITY] menu Press the <ENTER> button. f The [CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed. Press as to select [CONTROL PANEL] or [REMOTE CONTROL]. Press qw to switch [USER]. Press as to select the button item to set. f When [INPUT SELECT BUTTON] is selected, press the <ENTER>...
Page 185 Chapter 4 Settings — [SECURITY] menu Press asqw to select the text, and press the <ENTER> button to enter the text. Press asqw to select [OK], and press the <ENTER> button. f To cancel, select [CANCEL]. Attention f The initial password is “AAAA” as the factory default setting or when the [PROJECTOR SETUP] menu → [INITIALIZE] → [ALL USER DATA] is executed.
Page 186: [Network] Menu
Chapter 4 Settings — [NETWORK] menu [NETWORK] menu On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu. Refer to “Navigating through the menu” (x page 86) for the operation of the menu screen. [DIGITAL LINK] Perform the setting and operation regarding the DIGITAL LINK.
Page 187: [Wired Lan]
Chapter 4 Settings — [NETWORK] menu Press the <ENTER> button. f The [DIGITAL LINK STATUS] screen is displayed. The content of display is as follows. [DIGITAL LINK]: Communicating in the DIGITAL LINK method. [LINK STATUS] [LONG REACH]: Communicating in the long reach method. [ETHERNET]: Communicating in the Ethernet method.
Page 188: [Projector Name]
Chapter 4 Settings — [NETWORK] menu Acquires the IP address automatically if a DHCP server exists in the [ON] network where the projector is to be connected. [DHCP] Set [IP ADDRESS], [SUBNET MASK], and [DEFAULT GATEWAY] if [OFF] a DHCP server does not exist in the network where the projector is to be connected.
Page 189 Chapter 4 Settings — [NETWORK] menu Press the <ENTER> button. f The [ADMINISTRATOR ACCOUNT] screen is displayed. Press as to select [PASSWORD POLICY], and press the <ENTER> button. f The [PASSWORD POLICY] screen is displayed. PASSWORD POLICY Reusing passwords is not recommended. Password cannot be blank.
Page 190 Chapter 4 Settings — [NETWORK] menu f The user name and password of the standard user account without administrator rights can be set in “[Set up password] page (when accessed by administrator account)” (x page 214) of the web control screen. Changing the setting of the administrator account Change the user name and password of the account with administrator rights.
Page 191: [Network Control]
Chapter 4 Settings — [NETWORK] menu f The user name and password of the administrator account can also be changed in “[Set up password] page (when accessed by administrator account)” (x page 214) of the web control screen. f The user name and password of the standard user account without administrator rights can be set in “[Set up password] page (when accessed by administrator account)”...
Page 192 Chapter 4 Settings — [NETWORK] menu After the password is entered, press asqw to select [OK], and press the <ENTER> button. f The [PJLink PASSWORD] screen is displayed. Press as to select [PASSWORD] in [NEW], and press the <ENTER> button. f The [PASSWORD] screen is displayed. Press asqw to select the text, and press the <ENTER>...
Page 193: [Art-Net]
Chapter 4 Settings — [NETWORK] menu Press as to select [NOTIFIED IP ADDRESS 1] or [NOTIFIED IP ADDRESS 2]. f Enter the IP address of the computer to be notified of the status of the projector. [Art-Net] Set the Art-Net function. f To use the Art-Net function with the projector, it is necessary to set the password of the administrator account.
Page 194 Chapter 4 Settings — [NETWORK] menu [Art-Net CHANNEL SETTING] Set the assignment of the channel. Make settings to use the Art-Net function. For the channel definitions used for controlling the projector with the Art‑Net function, refer to “Using Art‑Net function” (x page 237). Press as to select [Art-Net].
Page 195 Chapter 4 Settings — [NETWORK] menu [NONE] No definition *1 These items can be set in following case. When the standard DC motor unit installed in the Zoom Lens (Model No.: ET‑D75LE6, ET‑D75LE8, ET‑D75LE10, ET‑D75LE20, ET‑D75LE30, ET‑D75LE40, etc.) is replaced with the stepping motor unit using the Stepping Motor Kit (Model No.: ET‑D75MKS10), or when a projection lens with the stepping motor is attached.
Page 196: Chapter 5 Operations
Operations Chapter 5 This chapter describes how to use each function. 196 - ENGLISH...
Page 197: Network Connection
You can use the application software “Smart Projector Control” to set and adjust projectors connected to a LAN using a smartphone or tablet. Visit the Panasonic website (https://panasonic.net/cns/projector/) for details. f Multi Monitoring & Control Software “Multi Monitoring & Control Software”, a software application to monitor and control multiple display devices (projector or flat panel display) connected to intranet, can be used.
Page 198 (https://panasonic.net/cns/projector/). Note that the verification for devices of other manufacturers has been made for the items set by Panasonic Corporation, and not all the operations have been verified. For operation or performance problems caused by the devices of other manufacturers, contact the respective manufacturers.
Page 199 Chapter 5 Operations — Network connection Perform the [WIRED LAN] setting. f Refer to [WIRED LAN] (x page 187) for details. Note f To connect to an existing network, perform after consulting your network administrator. r Factory default setting f Following setting has been made as a factory default. [DHCP] [IP ADDRESS] 192.168.0.8...
Page 200: Web Control Function
Chapter 5 Operations — Web control function Web control function Following operation is possible from a computer using the web control function. f Setting and adjustment of the projector f Display of the projector status f Sending E-mail messages when there is a problem with the projector The projector supports “Crestron Connected”, and the following application software of Crestron Electronics, Inc.
Page 201 Chapter 5 Operations — Web control function In [Password], enter the password to be set for the administrator account. f A password cannot be blank. f A password consisting of at least eight half-width characters is recommended. f A password containing characters of at least three of the following four character types is recommended. g Uppercase letters g Lowercase letters g Digits...
Page 202 Chapter 5 Operations — Web control function Rights for each account The administrator account can use all functions. The standard user account has limits on the functions it can use. Select the account to use depending on the purpose. The function that has l in the administrator/standard user column indicates that it can be operated with that account.
Page 203 Chapter 5 Operations — Web control function [Projector status] page Click [Status] → [Projector status]. Display the status of the projector for the following items. [PROJECTOR TYPE] 11 [LIGHT OUTPUT] Displays the type of the projector. Displays the setting status of [LIGHT OUTPUT]. [MAIN VERSION] 12 [INPUT] Displays the firmware version of the projector.
Page 204 Chapter 5 Operations — Web control function Error information page When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status] screen, click it to display the content of the error/warning. f The projector may go into the standby status to protect the projector depending on the contents of the error. Display of error information Error code Displays the alphanumeric symbols and content of errors/...
Page 205 Chapter 5 Operations — Web control function [Mail error log] page Click [Status] → [Mail error log]. E-mail error log is displayed if periodic E-mail sending has failed. Note f [Access error log] and [Mail error log] display the recent few thousand accesses/requests. All information may not be displayed when many accesses/requests are made at once.
Page 206 Chapter 5 Operations — Web control function [Detail control] page Click [Projector control] → [Detail control]. [WAVEFORM MONITOR] Control of the projector The projector is controlled by clicking the buttons in the same Displays the waveform of the input signal. way as the buttons on the remote control. After control, the on- [PROJECTION METHOD] screen display of the projector at the right of the control page is Switches the setting of the projection method.
Page 207 Chapter 5 Operations — Web control function Lens position setting page Click [Projector control] → [Detail control] → [LENS] → [SET POSITION]. [Get] [Back] Acquires the current lens position and displays the acquired Returns to the [LENS] page. values in the lens position information field. [Apply] Lens position information field Moves to the lens position displayed in the lens position...
Page 208 Chapter 5 Operations — Web control function [Network config] page Click [Detailed set up] → [Network config]. f Click [Network config] to display the [CAUTION!] screen. f Click the [Next] button to display the current settings. f Click the [Change] button to display the setting change screen. [PROJECTOR NAME] [DNS1] Enter the name of the projector.
Page 209 Chapter 5 Operations — Web control function [Adjust clock] page Click [Detailed set up] → [Adjust clock]. [Time Zone] [Date] Select the time zone. Enter the date to change when [NTP SYNCHRONIZATION] is set to [OFF]. [Set time zone] Updates the time zone setting. [Time] Enter the time to change when [NTP SYNCHRONIZATION] is [NTP SYNCHRONIZATION]...
Page 210 Chapter 5 Operations — Web control function [E-mail set up] page Send an E‑mail to preset E‑mail addresses (up to two addresses) when a problem has occurred. Click [Detailed set up] → [E-mail set up]. [ENABLE] [MINIMUM TIME] Select [ENABLE] to use the E-mail function. Change the minimum interval for the temperature warning E-mail.
Page 211 Chapter 5 Operations — Web control function [Authentication set up] page Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail. Click [Detailed set up] → [Authentication set up]. [Auth] [Password] Select the authentication method specified by your Internet Enter the password for the POP server or the SMTP server.
Page 212 Chapter 5 Operations — Web control function Contents of E-mail sent Example of the E-mail sent when E-mail is set The following E-mail is sent when the E-mail settings have been established. === Panasonic projector report(CONFIGURE) === Projector Type : PT-RZ16K Serial No...
Page 213 Chapter 5 Operations — Web control function Example of the E-mail sent for an error The following E-mail is sent when an error has occurred. === Panasonic projector report(ERROR) === Projector Type : PT-RZ16K Serial No : 123456789012 ----- ERROR INFORMATION ----- U21 Intake air temp.
Page 214 Chapter 5 Operations — Web control function [Set up password] page (when accessed by administrator account) Click [Set up password]. [Administrator] [PJLink] Select this item when changing the setting of the administrator Select this item when changing the setting of the PJLink account.
Page 215 Chapter 5 Operations — Web control function [User] Set the user name and password of the standard user account. [Account] [OK] Displays the account to change. Determines the change of password. [New] [User name]: Enter the desired new user name. (Up to 16 half‑width characters) [Password]: Enter the desired new password.
Page 216 Chapter 5 Operations — Web control function [Set up password] (when accessed by standard user account) Change the user name and password of the standard user account. [Old Password] [Retype] Enter the current password. Enter the desired new password again. [New Password] [OK] Enter the desired new password.
Page 217 Chapter 5 Operations — Web control function [Tools] page Click [Tools] in the operation page. [Control System] Network status Set the information required for communicating with the Displays the settings of wired LAN. [DHCP] controller to be connected with the projector. Displays the current setting.
Page 218 Chapter 5 Operations — Web control function [Help] page Click [Help] in the operation page. The [Help Desk] window is displayed. [Help Desk] A message can be sent/received with the administrator using the Crestron Connected. 218 - ENGLISH...
Page 219: Updating The Firmware
The firmware of the projector can be updated via LAN. Check the Panasonic website (https://panasonic.net/cns/projector/pass/) for availability of the firmware that can be updated. Customer can update the firmware if a newer version than the current firmware version is published.
Page 220 When other software has started up or operating g When the computer has gone into sleep/pause status Acquiring the firmware Download the firmware update tool for this projector (compressed file in zip format) from the Panasonic website (https://panasonic.net/cns/projector/pass/). f File name (example): FirmUpdateTool_RZ16K_101.zip (Update tool for the PT‑RZ16K with main version 1.01)
Page 221 Chapter 5 Operations — Updating the firmware Double-click the executable file generated by extracting. f The update tool is started up, and the confirmation screen is displayed. Confirm the status of the projector. f Confirm that the projector to be updated is in the standby mode. Confirm the connection status.
Page 222 Chapter 5 Operations — Updating the firmware Select [I accept]. Click [Next]. f The connection setting screen is displayed. Enter the setting details of the projector. f Enter the details set in the projector to be updated. Item Details [IP Address] The [NETWORK] menu →...
Page 223 Chapter 5 Operations — Updating the firmware Click [Next]. f The update confirmation screen is displayed. 10) Click [Start]. f Update is started. f The light source indicator <LIGHT1> and the light source indicator <LIGHT2> on the projector blink in red alternately while updating.
Page 224 Chapter 5 Operations — Updating the firmware Note f In following cases, turn the power of the projector off and on and perform the update from the beginning. g When the update does not complete after 60 minutes or more have elapsed g When the power of the projector or the computer has turned off due to power outage, etc., during the update 224 - ENGLISH...
Page 225: Chapter 6 Maintenance
Maintenance Chapter 6 This chapter describes inspection methods when there are problems, and maintenance methods. ENGLISH - 225...
Page 226: Light Source/Temperature Indicators
Chapter 6 Maintenance — Light source/temperature indicators Light source/temperature indicators When an indicator lights up If a problem occurs inside the projector, the light source indicators <LIGHT1>/<LIGHT2> or temperature indicator <TEMP> will inform you by lighting or blinking in red. Check the status of the indicators and take following measures.
Page 227 Chapter 6 Maintenance — Light source/temperature indicators Temperature indicator <TEMP> Indicator status Status Solution f Wait five minutes when the power is turned on while the temperature is low (approximately 0 °C (32 °F)). f Warm-up status f Install the projector in a location with the operating environment temperature Lighting red between 0 °C (32 °F) and 50 °C (122 °F) f Internal temperature is high...
Page 228: Maintenance
Chapter 6 Maintenance — Maintenance Maintenance Before maintenance f Make sure to turn off the power before performing the maintenance of the projector. f When switching off the projector, make sure to follow the procedures in “Switching off the projector” (x page 70). Maintenance Outer case Wipe off dirt and dust with a soft, dry cloth.
Page 229: Troubleshooting
Chapter 6 Maintenance — Troubleshooting Troubleshooting Review the following points. For details, see the corresponding pages. Problems Points to be checked Page f Is the power plug firmly inserted into the outlet? ― f Is the <MAIN POWER> switch set to <OFF>? f Is the wall outlet supplying electricity? ―...
Page 230 Chapter 6 Maintenance — Troubleshooting Problems Points to be checked Page f Perform [LENS CALIBRATION]. Lens shift cannot be adjusted. f Is the Fixed‑focus Lens (Model No.: ET‑D3LEW50, ET‑D75LE50) attached? ― f Are the connections between the twisted-pair-cable transmitter and an external ―...
Page 231: Self-Diagnosis Display
Chapter 6 Maintenance — Self-diagnosis display Self-diagnosis display There is a self-diagnosis display on the side of the projector. Self-diagnosis display will automatically display the value of the input supply voltage, or details of errors or warnings when they occur. (x page 29) The following list shows the alphanumeric symbol that is displayed when an error or a warning has occurred and its details.
Page 232 Chapter 6 Maintenance — Self-diagnosis display Error/warning alphanumeric Error/warning alphanumeric symbol content Action number symbol Circuit intake fan 2 warning Light source driver fan warning Light source 1 driver communication error Light source 2 driver communication error Lens mounter error Lens memory error Light source 1 error Light source 2 error Light source driver fan error...
Page 233 Chapter 6 Maintenance — Self-diagnosis display r Measure for error and warning Action Measure number The operating environment temperature is too high. Use the projector in an appropriate operating environment temperature The operating environment temperature is too high, or the exhaust vent may be blocked. Use the projector in an appropriate operating environment temperature .
Page 234: Chapter 7 Appendix
Appendix Chapter 7 This chapter describes specifications and after‑sales service for the projector. 234 - ENGLISH...
Page 235: Technical Information
[NETWORK] menu. Manufacturer name INF1 ? Panasonic Returns manufacturer name. query INF2 ? Model name query PT-RZ16K Returns model name. Other information INF0 ? xxxxx Returns information such as version number. queries Class information CLSS ? Returns class for PJLink.
Page 236 Chapter 7 Appendix — Technical information Parameter/response Class Command Control details Remark string 11 / RGB1 12 / RGB2 31 / DVI-D Input terminal name INNM ? 32 / HDMI Returns input terminal name. query 33 / DIGITAL LINK 34 / SDI1 35 / SDI2 Input signal resolution AAAA: Horizontal resolution...
Page 237: Using Art-Net Function
Chapter 7 Appendix — Technical information Using Art-Net function Since the network function of the projector supports the Art-Net function, you can control the projector settings with the DMX controller and application software using the Art-Net protocol. Note f To use the Art‑Net function with the projector, it is necessary to set the password of the administrator account. (x page 190) Channel definition The following table lists the channel definitions used for controlling the projector with the Art‑Net function.
Page 238 Chapter 7 Appendix — Technical information Art-Net channel setting Control details [USER] LENS V SHIFT LSB ― ― ― LENS FOCUS MSB ― ― LENS FOCUS LSB ― ― LENS ZOOM MSB ― ― LENS ZOOM LSB ― ― ENABLE/DISABLE *1 These items can be controlled in following case. When the standard DC motor unit installed in the Zoom Lens (Model No.: ET‑D75LE6, ET‑D75LE8, ET‑D75LE10, ET‑D75LE20, ET‑D75LE30, ET‑D75LE40, etc.) is replaced with the stepping motor unit using the Stepping Motor Kit (Model No.: ET‑D75MKS10), or when a projection lens with the stepping motor is attached.
Page 239 Chapter 7 Appendix — Technical information r LENS FUNCTION SELECT Operate together with LENS CONTROL. Performance Parameter Default value No operation 0-15 LENS H SHIFT 16-31 LENS V SHIFT 32-47 LENS FOCUS 48-63 LENS ZOOM 64-79 Move to the home position 80-95 Load LENS MEMORY 1 96-111...
Page 240 Chapter 7 Appendix — Technical information r POWER Performance Parameter Default value Standby 0-63 No operation 64-191 Power on 192-255 r SHUTTER Performance Parameter Default value SHUTTER: Opened 0-63 No operation 64-191 SHUTTER: Closed 192-255 r FADE-IN, FADE-OUT Operate together with SHUTTER. Performance Parameter Default value...
Page 241 Chapter 7 Appendix — Technical information r FREEZE Performance Parameter Default value No operation 0-31 32-95 No operation 96-159 160-223 No operation 224-255 r COLOR, TINT Performance Parameter Default value No operation 0-31 Factory default setting 32-63 … … 128-129 … …...
Page 242: Control Commands Via Lan
“ENABLE/DISABLE” of channel 11 to “Disable” and then back to “Enable”. f To create and register the USER LOGO image, use “Logo Transfer Software”. The software can be downloaded from the Panasonic website (https://panasonic.net/cns/projector/).
Page 243 Chapter 7 Appendix — Technical information f Example: Transmission of power supply status acquisition command (hash value is calculated from the user name and password of the administrator account, and acquired random number) “dbdd2dabd3d4d68c5dd970ec0c29fa6400QPW” (CR) r Received data Termination Header Data section symbol Command ‘0’...
Page 244: Serial In>/ Terminal
Chapter 7 Appendix — Technical information <SERIAL IN>/<SERIAL OUT> terminal The <SERIAL IN>/<SERIAL OUT> terminal of the projector conforms with RS-232C so that the projector can be connected to and controlled from a computer. Connection Single projector Projector connecting terminals Computer D-Sub 9p (female) D-Sub 9p (male) D-Sub 9p (male)
Page 245 Chapter 7 Appendix — Technical information D-Sub 9-pin (male) Pin No. Signal name Details Outside view ― Received data Transmitted data ― Earth ― Connected internally ― Communication conditions (Factory default) Signal level RS-232C-compliant Sync. method Asynchronous Baud rate 9 600 bps Parity None Character length...
Page 246 Chapter 7 Appendix — Technical information Attention f If a command is sent after the light source starts lighting, there may be a delay in response or the command may not be executed. Try sending or receiving any command after 60 seconds. f When transmitting multiple commands, be sure to wait until 0.5 seconds has elapsed after receiving the response from the projector before sending the next command.
Page 247 Chapter 7 Appendix — Technical information Control command The following table lists the commands that can be used to control the projector using a computer. r Projector control command Parameter/response Command Details Remark (parameter) string Power on ― To check if the power is on, use the “Power query” command. Power standby STANDBY Power query...
Page 248: Remote 2 In> Terminal
Chapter 7 Appendix — Technical information <REMOTE 2 IN> terminal It is possible to control the projector remotely (by external contact) from a control panel located away from the projector where remote control signals cannot reach. Use the <REMOTE 2 IN> terminal on the connecting terminals of the projector to connect to the control panel. Remote control Contact control Remote control/contact control...
Page 249: Rgb 2 In> Terminal Pin Assignments
Chapter 7 Appendix — Technical information <RGB 2 IN> terminal pin assignments Outside view Pin No. Signal name Pin No. Signal name ― (10) (11) (15) (11) (12) ― DDC data (10) (13) SYNC/HD (14) (15) DDC clock Setting the IP address in standby status The projector can set or confirm the IP address used to connect to the network in the standby status not projecting.
Page 250 Chapter 7 Appendix — Technical information r When [DHCP] is set to [ON] This is an example when the [NETWORK] menu → [WIRED LAN] → [DHCP] is set to [ON], and [IP ADDRESS] is set to 192.168.0.8. “IPo” “192” “168” “000” “008”...
Page 251 Chapter 7 Appendix — Technical information Press the <ENTER> button on the control panel. f It will go into an IP address setting mode (where the self‑diagnosis display is blinking in 0.5 second intervals). f It will not go into the IP address setting mode even if the <ENTER> button on the remote control is pressed. Press asqw to enter the IP address.
Page 252: Two-Window Display Combination List
Chapter 7 Appendix — Technical information Two-window display combination list l: P IN P (picture in picture) combination is possible a: P IN P (picture in picture) combination is possible through the same frequency ―: P IN P (picture in picture) combination is not possible Sub window RGB1 RGB2...
Page 253: Upgrade Kit
Chapter 7 Appendix — Technical information Upgrade Kit If the optional Upgrade Kit (Model No.: ET‑UK20) is applied, the following functions are extended. Function Standard status When the Upgrade Kit is applied Adjustment range of Maximum of ±40° Maximum of ±45° [VERTICAL KEYSTONE] Adjustment range of Maximum of ±15°...
Page 254: List Of Compatible Signals
Chapter 7 Appendix — Technical information List of compatible signals The following table specifies the video signals that the projector can project. For details of SDI signal, refer to “List of single link SDI compatible signals” (x page 256) and “List of dual link SDI compatible signals” (x page 257). f Symbols that indicate formats are as follows.
Page 255 Chapter 7 Appendix — Technical information Scanning freq. Plug and play Dot clock Signal name Resolution freq. Format DVI-D Horizontal Vertical HDMI/ (SIGNAL FORMAT) (Dots) RGB2 (MHz) (kHz) (Hz) EDID1 EDID2 EDID3 1024 x 768/120 1 024 x 768 98.8 120.0 139.1 R/D/H ―...
Page 256 Chapter 7 Appendix — Technical information Note f A signal with a different resolution is converted to the number of display dots. The number of display dots is 1 920 x 1 200. f The “i” at the end of the resolution indicates an interlaced signal. f When interlaced signals are connected, flickering may occur on the projected image.
Page 257 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) (MHz) (kHz) (Hz) 2 048 x 1 080 28.1 25.0 74.3 3G-SDI Level-A 4:4:4 10bit 2 048 x 1 080 28.1 25.0 74.3...
Page 258 Chapter 7 Appendix — Technical information Scanning freq. Dot clock Signal name Resolution freq. Format Color format Sampling Horizontal Vertical (SIGNAL FORMAT) (Dots) (MHz) (kHz) (Hz) 2 048 x 1 080 27.0 24.0 74.3 HD-SDI 4:4:4 10bit 2K/24p 2 048 x 1 080 27.0 24.0 74.3...
Page 259 Chapter 7 Appendix — Technical information List of 3D compatible signals The following table specifies the 3D compatible video signals that the projector can project. f Abbreviations for input formats and 3D formats in the table have the following meanings. g FP: Frame packing format g SBS: Side by side format g TB: Top and bottom format g LBL: Line by line format...
Page 260 Chapter 7 Appendix — Technical information Scanning freq. HDMI DVI-D Dot clock Signal name Resolution freq. Horizontal Vertical (SIGNAL FORMAT) (Dots) (MHz) (kHz) (Hz) 1 600 x 1 200 75.0 60.0 162.0 ― ― ― ― ― ― ― 1600 x 1200 1 600 x 1 200 61.8 49.9...
Page 261 Chapter 7 Appendix — Technical information Scanning freq. RGB1/RGB2 SDI1/SDI2 Dot clock Signal name Resolution freq. H-D R1-2 S1-2 Horizontal Vertical (SIGNAL FORMAT) (Dots) TB LBL FS SBS TB LBL 3G (MHz) (kHz) (Hz) 1 600 x 1 200 75.0 60.0 162.0 ―...
Page 262: Specifications
Chapter 7 Appendix — Specifications Specifications The specifications of the projector are as follows. Power supply 100 V - 120 V / 200 V - 240 V ~ (100 V ‑ 120 V / 200 V ‑ 240 V alternating current), 50 Hz/60 Hz Power consumption 1 100 W (11.0 A / 7.7 A) 0.3 W...
Page 263 Chapter 7 Appendix — Specifications r Terminal 1 set (BNC x 5 (RGB/YP /YC/VIDEO x 1)) RGB signal 0.7 V [p‑p] 75 Ω (SYNC ON GREEN: 1.0 V [p‑p] 75 Ω) SYNC/HD TTL high impedance, automatic positive/negative polarity compatible <RGB 1 IN> terminal TTL high impedance, automatic positive/negative polarity compatible signal...
Page 264 RGB signal input f Resolution: 640 x 400 to 1 920 x 1 200 f Dot clock frequency: 162 MHz or less f PIAS (Panasonic Intelligent Auto Scanning) system signal input f Resolution: 480i/576i to 1 920 x 1 080 f Dot clock frequency: 148.5 MHz or less...
Page 265: Dimensions
Chapter 7 Appendix — Dimensions Dimensions Unit: mm 299 (11-25/32") 258 (10-5/32") 644 (25-11/32") 516 (20-5/16") 598 (23-17/32") * Actual dimensions may differ depending on the product. ENGLISH - 265...
Page 266: Precautions For Attaching The Ceiling Mount Bracket
Ask a qualified technician to do the installation work such as mounting the projector on the ceiling. f Panasonic takes no responsibility for any damage to the projector resulting from use of the Ceiling Mount Bracket other than the Panasonic product, or an inappropriate choice of location for installing the Ceiling Mount Bracket, even if the warranty period of the projector has not expired.
Page 267 Chapter 7 Appendix — Precautions for attaching the Ceiling Mount Bracket r Dimensions for the screw holes to fix the projector (projector bottom view) Unit: mm 110 (4-11/32") 145 (5-23/32") 110 (4-11/32") 135 (5-5/16") 145 (5-23/32") ENGLISH - 267...
Page 268: Index
Index Index 0 – 9 <ENTER> button Projector body [3D COLOR MATCHING] <ON SCREEN> button Remote control [3D INPUT FORMAT] Remote control 26, 81 Expanding signal lock-in range [3D PICTURE BALANCE] [ON-SCREEN DISPLAY] [3D SAFETY PRECAUTIONS] On-screen menu [3D SETTINGS] 89, 116 [OPERATION SETTING] Firmware update...
Page 269 Index [STANDBY MODE] [STARTUP INPUT SELECT] [STARTUP LOGO] [STATUS] <STATUS> button Remote control 26, 83 Storing Sub memory <S-VIDEO Y/C> button Remote control 26, 71 Switching off the projector Switching on the projector Switching the input signal [SYSTEM DAYLIGHT VIEW] [SYSTEM SELECTOR] Temperature indicator [TEST PATTERN]...
Page 270 Panasonic Corporation Web Site : https://panasonic.net/cns/projector/ © Panasonic Corporation 2020 Panasonic System Solutions Company of North America Two Riverfront Plaza, Newark, NJ 07102 TEL: (877) 803 - 8492 Panasonic Canada Inc. 5770 Ambler Drive, Mississauga, Ontario L4W 2T3...
