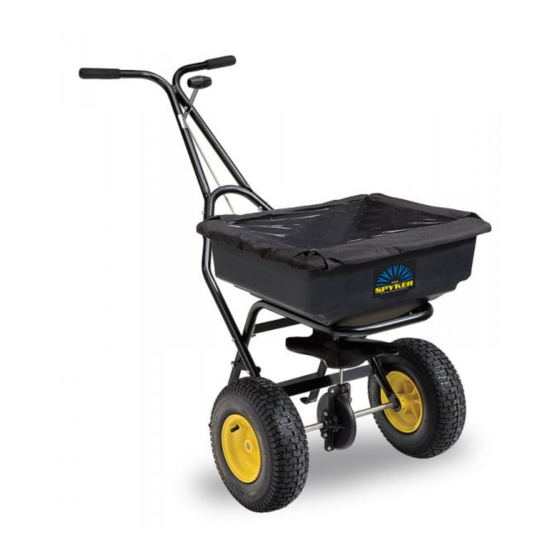

- Page 1 Operator's Manual Model P60/S60 Series This manual contains information for the safety IMPORTANT of persons and property. Read it carefully before assembly and operation of the equipment! Spyker Spreaders Contact Us at 800.972.6130 ©2010 Spyker Spreaders/A Brinly-Hardy Co. 1008192 Rev. A...
- Page 2 Hopper Explosion Rate Gate and Deflector Explosion Handle Explosion 1008192 Rev. A...
- Page 3 Spinner/Axle Explosion Frame Explosion *As needed for shimming 1008192 Rev. A...
- Page 4 New Part Number Qty Description New Part Number Qty Description 1008067 Decal Spyker Square Blue 05-94-0068 Rate Gate 1007773 Lever, Control 05-90-0102 Hair Pin, Small SS 05-90-0054 1/4-20 x 1-1/2" Hex 05-94-0069 Dial Mount Bolt, SS 1008083-10 Dual Handle Painted 05-92-0008 1/4"...
- Page 5 Install Linkage to Lever as shown, Figure 1. Figure 1 Figure 2 Turn Handle Assembly sideways and install Linkage into Rate Gate Lever as shown, Figure 2. Attach Handle Assembly to Frame using (4) 1/4 x 1-3/4" long Bolts and 1/4" Nylon Insert Locknuts, Figure 3.
- Page 6 Install Handle Grips on Handles of Spreader, Figure Figure 4 1008192 Rev. A...
- Page 7 READ BEFORE USING OPERATE SAFELY Keep bystanders away when you operate this machine. Do not wear loose fitting clothing that can get caught in moving parts. Use this machine for intended purpose only. Always wear eye protection when operating the Do not let children or an untrained person operate equipment.
-
Page 8: Read Before Using
READ BEFORE USING Become Familiar With The Operation Of The Spreader Before You Put Material In The Hopper • Practice walking with the spreader, opening and dial setting on the low side. If the setting proves to closing the rate gate at the appropriate times. be too low, cover the area more than one time. - Page 9 READ BEFORE USING Now You Are Ready To Put to wonder where you are or where you have been. Continue until spreading is completed. Material In The Hopper • Left over fertilizer can be spread under trees and WARNING: Avoid Injury! Chemicals can be other high feeding areas without showing "edge of dangerous.
- Page 10 NOTE: Dial Settings Are Approximate Only ! Dial Settings Dial Settings Full Rate Half Rate Lbs. per Once Over Twice Over Product Particle Size 1000 sq. ft. Fine Pellets Mixed Fine Pellets Small Pellets Nitrogen Pellets Medium Size Medium Pellets And Granuals Large Heavy Pellets...
-
Page 11: Troubleshooting
TROUBLESHOOTING Spreader does not sit flat The "feet" or the flattened Using a hammer or pliers, portion of the spreader hopper bend the feet to be equal with support tubes are not bent each other. equally. Deflector shut off is binding Shut off plate is jammed with Thoroughly wash out hopper and will not open/close... -
Page 12: Year Limited Warranty
Spyker Spreaders will not be liable for any loss, damage or expense including, but not limited to, consequential or incidental damages, arising from the operation, condition or use of the item.
