SPYKER 88 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

For Models:
88, 296, 298
298
It's the spread that counts
It's the spread that counts
P.O. Box 210
810 W. Main Street
N. Manchester, IN
46962
spread with confidence
spread with confidence
296
USA
Spreading Chart
Operation Guide
Service Manual
Parts List
88
1-800-972-6130
Fax: 219-774-3416

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 88 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPYKER 88

Summary of Contents for SPYKER 88

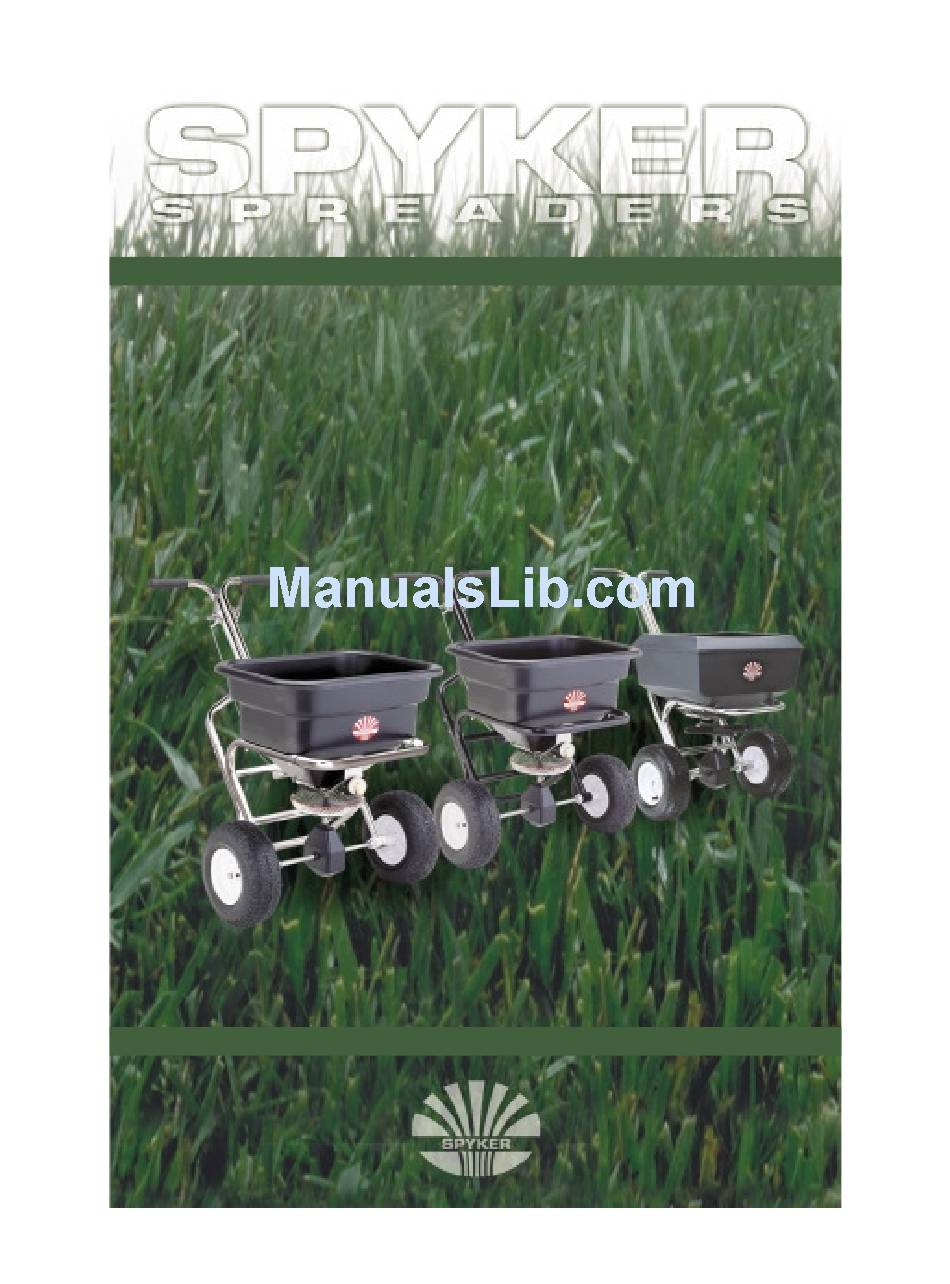

  • Page 1 Spreading Chart For Models: 88, 296, 298 Operation Guide Service Manual Parts List It’s the spread that counts It’s the spread that counts P.O. Box 210 810 W. Main Street 1-800-972-6130 N. Manchester, IN...
  • Page 2 Assembly Instructions For Quick and Easy Assembly - First Read Entire Procedure Then Follow Carefully The Step by Step Instructions Tools You will Need: Screwdriver 7/16 Wrench 3/8 Wrench Mallet Parts You will Use: Parts for Models: 296, 298 • (1) Drive Wheel •...

  • Page 3: Spreader Assembly

    Spreader Assembly Insert the ground prop (46) into the frame and fasten with two bolts (47) and nuts (5) supplied. a. Mount tires on axle as shown to the right, noting that the drive wheel (33) has a hole in the hub for the bolt (42) to go through the axle and fasten...
  • Page 4 Spreader Assembly continued Attach the idle (34) wheel to axle with the washer (45) and cotter pin (25) as shown right. Insert handles (40) into frame as shown right and fasten handles loosely (40) to frame (14) with 4 bolts (48) and 4 nuts (5).

  • Page 5: Cable Adjustment Procedure

    Cable Adjustment Procedure for Model 88 and Current Models 296 & 298 Make sure that both levers are pulled all the way back towards the handles.
  • Page 6 Cable Adjustment Procedure for Model 88 and Current Models 296 & 298 Turn the rate control dial (10) to the highest setting, (all the way past the number (9) until the notch on the linkage stops against the flat surface of the dial.

  • Page 7: Spinner Assembly

    Spreader Assembly continued Insert the bump bar (46) into frame as shown to the right and fasten with two bolts (15) that fasten the front of the hopper to the frame. The bolts go through the bump bar and are fastened with nuts (5).
  • Page 8 Spinner Assembly continued Slide coupling (29) onto upper spinner shaft (28). Connect upper spinner shaft (28) and lower spinner shaft (23). Slide coupling (29) down to secure connection of upper & lower spinner shafts.
  • Page 9 Spinner Assembly continued Insert spinner clip (30) through hole in spinner (31) and hole in upper spinner shaft (28). NOTE: Use upper hole in spinner shaft for the regular spinner (31) and use the lower hole for the mulch spinner. Snap the loop of the spinner clip (30) around upper...
  • Page 10 Exploded View Model 88 Hopper & Frame Assembly 54 Retainer Wire 39 Screen Rear View...
  • Page 11 Exploded View Model 88 Rate Dial Assembly Hopper Bottom Gear Assembly Gear Box Housing...
  • Page 12 Exploded View Model 296 & 298 Spinner Dish 39 Screen...
  • Page 13 Exploded View Model 296 & 298 Rate Dial Assembly Hopper Bottom Gear Assembly Gear Box Housing...

  • Page 14: Parts List

    Parts List Item # Part # Quantity Description Price 05-296-2210 Hopper 73.44 05-296-2215 Hopper Bottom 21.36 05-296-0180 Cable Mount Bracket 19.56 05-90-0049 Hopper Bottom Bolt 1/4-20 X 1/2 SS-91-0004 SS-94-0007 Hopper Bottom Bearing 05-94-0042 Rate Gate Diffuser Guide 05-296-2220 Rate Gate 9.99 05-296-0110 Rate Gate Linkage...
  • Page 15 Parts List Item # Part # Quantity Description Price 05-296-2210 Hopper 73.44 05-296-2215 Hopper Bottom 21.36 05-296-0180 Cable Mount Bracket 19.56 05-90-0049 Hopper Bottom Bolt 1/4-20 X 1/2 SS-91-0004 SS-94-0007 Hopper Bottom Bearing 05-94-0042 Rate Gate Diffuser Guide 05-296-2220 Rate Gate 9.99 05-296-0110 Rate Gate Linkage...
  • Page 16 Item # Part # Quantity Description Price 05-94-0054 Hopper 54.00 05-71-2205 Hopper Bottom 7.02 05-88-2235 Cable Mount Bracket 18.84 99-10-0205 Bolt 1/4-20 x 1/2 " Hex Head / Hopper Bottom SS-91-0004 SS-94-0007 Hopper Bottom Bearing 05-94-0042 Rate Gate Diffuser Guide...

  • Page 17: Read Before Using

    Read Before Using SPEED - ACCURACY - FREEDOM FROM STRIPES AND STREAKS are yours - when you use this Spreader. The spread width ranges from 4 ft. to 12 ft. wide, depending on the volume/density, particle size of the material and the rate of travel. The spread thins or feathers at the outer edges, eliminating sharp, “Edge of spread”...
  • Page 18 Read Before Using Rotary Agitator Use the rotary agitator only if needed. Free-flowing, lump-free materi- als will not require the agitator. The rotary agitator is easily installed or removed. Note the clockwise rotation & sweep. Place felt washer around spinner shaft before inserting agitator. - See page #11. OIL BEARINGS AND ALL MOVING PARTS Make certain the spreader is running freely! Now You are Ready to Put Material in the Hopper...
  • Page 19 Read Before Using NOTE: With the rotary agitator installed, the rate gate closed (not spreading) and with material in the hopper, the spreader will push harder than normal. (This is because the agitator is stirring the material and it has no place to go.) RECOMMENDATION: When not spreading and the spreader is being pushed some distance, tip the spreader so only the idle wheel is on the ground.
  • Page 20 Grass Seed Spreading Chart Dial settings are approximate only. Spreading at one half rate in cross directions is usually recommended. Manufacturer’s Micro-Dial Settings Spread Bag Rate Width (In feet Full Rate Half rate Manufacturer Sq. Ft. Once Over Twice Over based on and Product brisk walking)
  • Page 21 Dial Setting Guide Dial settings are approximate only. Dial Scott Full Rate Half Rate Number Dial Letter Once Over Twice Over 3.25 2.25 3.75 4.25 5.25 5.75 6.25 Dial setting numbers correspond to Scott Rotary Spreader dial settings as shown Granule Size - Dial Setting Guide Dial settings are approximate only.
  • Page 22 In 1988 a new dimension was added to broadcast spreading - SPREAD PATTERN CONTROL - a dead center spread pattern equalizer. Spyker's Accuway spread pattern equalizer ® solves a complicated problem with a funda- mental patented solution.

  • Page 23: Did You Know

    Generous use of highest quality stainless steel. Guaranteed metal gears. Reliability You can count on. Accuway spread control system is so innovative, it's patented. Is so ® successful it's used on all Spyker series 290 spreaders.
  • Page 24 Pellet Mulch such as PennMulch® to Dry Sand, Salt and other difficult to spread high volume or large particle products. With Spyker’s patent pending removable spinner blade you can change to mulch blade in a matter of seconds. All other spreaders that are on the market require the removal of the hopper to access the spinner blade which can take as long as 1/2 to 1 hour to do.
  • Page 25 ‘calibration tray’ and calibration instructions included with your spreader. 2. All Model 88’s have 2 levers on the handle. The lever on the right side is the gate open and shut control. Forward is open and back- ward is closed.
  • Page 26 This is the exact reason Spyker developed the Mulch spinner blade. No other ground driven spreader has the capability of spreading materials at these high rates because they all use a stan- dard spinner blade.

  • Page 27: Limited Warranty

    (90) days from the date of purchase. Spyker Spreaders LLC, will not be liable for any loss, damage or expense includ- ing, but not limited, consequential or incidental damages, arising from the oper- ation, condition or use of the item, the sole and exclusive remedy against Spyker Spreaders LLC, being the replacement of the defective parts.

  • Page 28: Features And Benefits

    MODEL 299 Mulch Spreader required, ENSURES trouble free maintenance. P.O. Box 210 • 810 W. Main Street • N. Manchester, IN 46962 1-800-972-6130 • Fax 219-774-3416 S-100-095 © 2000 Spyker Spreaders – N. Manchester, IN U.S.A. Image Litho U.S.A...
