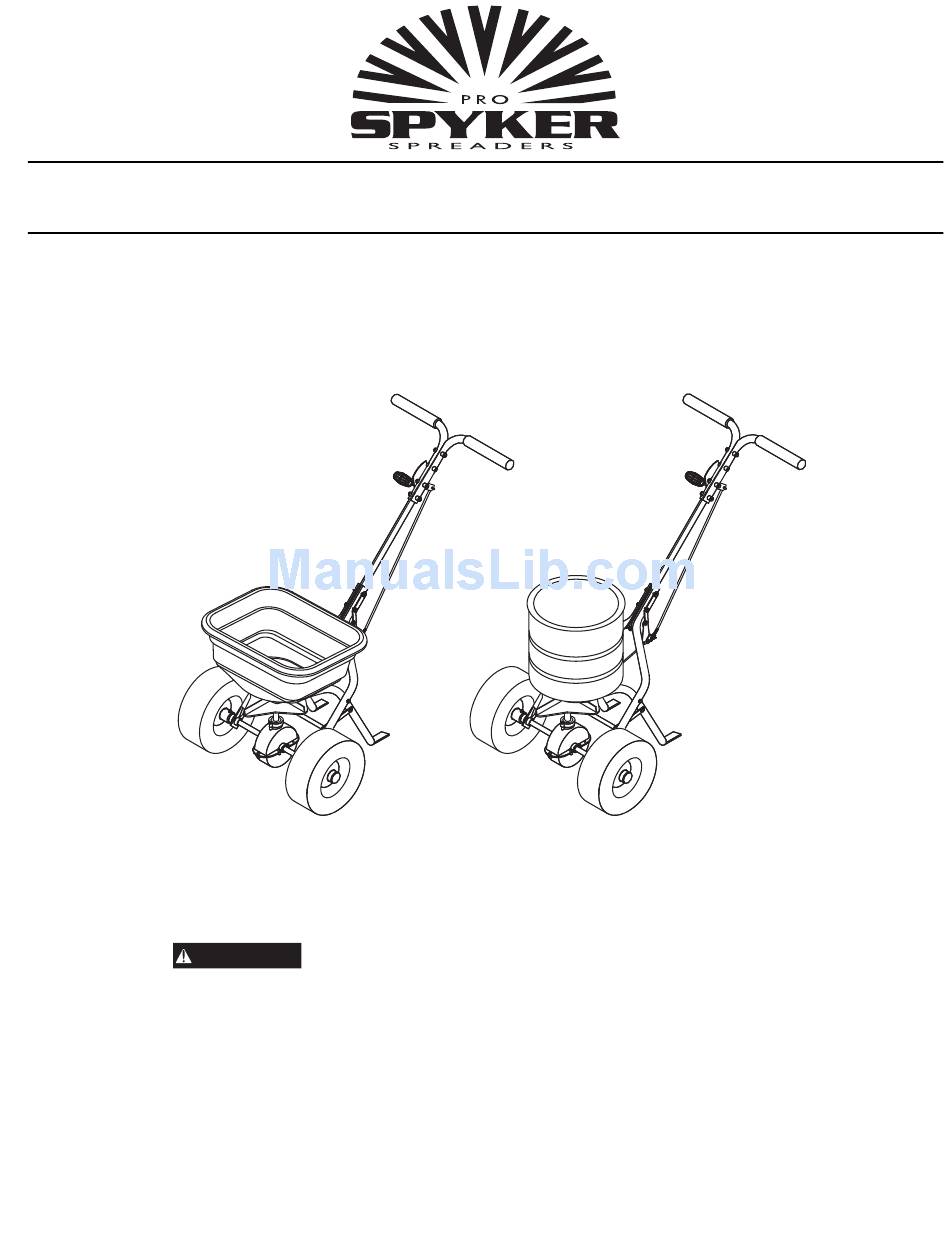

- Page 1 Operator's Manual Model P20-5010/P20-9010 Series This manual contains information for the safety IMPORTANT of persons and property. Read it carefully before assembly and operation of the equipment! Spyker Spreaders Contact Us at 800.972.6130 ©2010 Spyker Spreaders/A Brinly-Hardy Co. 1008198 Rev. B...
- Page 2 Handle/Frame Explosion Hopper Explosion Axle Explosion 1008198 Rev. B...
- Page 3 Item Part # Qty Description Item Part # Qty Description 1007081 Handle spacer 1000198 Felt Washer F-577 E-Ring 1008011 Frame 1000213 Dial 1007111 Frame brace 1008028 Gauge Plate 1007112 Bolt, M6 x 60 SS 1008156 Adjust handle 1007113 Bolt, M6 x 35 SS 1007086 Adjust handle knob side 1 1000223...
- Page 4 Remove two M6 locknuts and M6 x 45mm long bolts to remove pivot and bracket assembly from wheel frame tubes. Set bolts and nuts to the side. You will re-install them in Step 2. Figure 1 Insert arm assembly between frame tubes. Re-install pivot and bracket assembly through wheel frame tubes and arm assembly with two M6 x 45mm bolts and M6 locknuts removed...
- Page 5 Rotate control rod and insert into adjustment handle, Figure 3. Remove one nut from end of control rod. Insert control rod into pivot and bracket assembly as shown, Figure 3. Note orientation of bracket. Install second nut finger tight only. Ensure rate gate opens and closes fully.
- Page 6 READ BEFORE USING OPERATE SAFELY Keep bystanders away when you operate this machine. Do not wear loose fitting clothing that can get caught in moving parts. Use this machine for intended purpose only. Always wear eye protection when operating the Do not let children or an untrained person operate equipment.
-
Page 7: Read Before Using
READ BEFORE USING Become Familiar With The Operation Of The Spreader Before You Put Material In The Hopper • Practice walking with the spreader, opening and dial setting on the low side. If the setting proves to closing the rate gate at the appropriate times. be too low, cover the area more than one time. - Page 8 READ BEFORE USING Now You Are Ready To Put • Left over fertilizer can be spread under trees and other high feeding areas without showing "edge of Material In The Hopper spread" lines. WARNING: Avoid Injury! Chemicals can be Tip: When not spreading, and if pushing the spreader dangerous.
-
Page 9: Troubleshooting
TROUBLESHOOTING Spreader does not sit flat The "feet" or the flattened Using a hammer or pliers, portion of the spreader hopper bend the feet to be equal with support tubes are not bent each other. equally. Deflector shut off is binding Shut off plate is jammed with Thoroughly wash out hopper and will not open/close... - Page 10 NOTE: Dial Settings Are Approximate Only ! Dial Settings Dial Settings Full Rate Half Rate Lbs. per Once Over Twice Over Product Particle Size 1000 sq. ft. Fine Pellets Mixed Fine Pellets Small Pellets Nitrogen Pellets Medium Size Medium Pellets And Granuals Large Heavy Pellets...
- Page 11 THIS PAGE INTENTIONALLY LEFT BLANK 1008198 Rev. B...
-
Page 12: Year Limited Warranty
Spyker Spreaders will not be liable for any loss, damage or expense including, but not limited to, consequential or incidental damages, arising from the operation, condition or use of the item.
