EXFO Power Blazer Quick Reference Manual

Getting Results
Alarm/Error Injection
1
Gives more information on this alarms/errors group.
2
Status Bar
The Summary tab is automatically Interface/Signal
displayed once the test is started. Direction
Select a tab to get additional test Port
results. Test
Additional Status Bar Symbols:
Connection established between two testing units in Dual Test Set (DTS), EXFO|Worx Interop, or in Loop Up mode.
Connection not established between two testing units in Dual Test Set (DTS), EXFO|Worx Interop, or in Loop Up
mode.
Remote unit is busy (locked) in EXFO|Worx Interop operation mode.
LINK: Port link
The Stop button is
PTP: 1588 PTP, PTP Frames
displayed when the
ESMC: SyncE, ESMC Frames
test is running.
(BTS) CPRI, Base Station emulation mode
(RRH) CPRI, Remote Radio Head emulation mode
Global Indicator
Test control buttons are
reconfigured according
to the test application
The global indicator displays the pass/fail verdict,
and status.
global alarm, timer, and/or test duration.
Test Control Buttons
Start
Stop
TX
Save
Tap the Alarms/Errors tab.
Load
Report
Laser (on) Indicates that the laser control is on (for at least one Lane for parallel interface); the laser button
Laser (off) Indicates that the laser control is off (for all Lanes for parallel interface). Tapping this button will
Select the alarm/error to
3
be injected and its
parameters.
Reset
Inject
4
Tap Inject.
Discover
Remote
Hides the alarm/error selection.
Tap to select an alarm/error.
© 2019 EXFO Inc. All rights reserved.
Printed in Canada (2019-07)
P/N: 1075976 Version: 6.0.0.1

Clock
Power
Laser Non-default OH
Pattern Synchronization Inject
Remote Control
Tap anywhere within the global
indicator area to view the
maximized view of these
indicators.
Starts test. Available when the test is not running.
Stops test. Available when the test is running.
Enables traffic generation and starts test. Available with Traffic Gen & Mon and eCPRI BERT.
Saves, loads, imports, exports, and deletes configuration file(s). Available when the test is not
running.
Saves, opens, imports, exports, and deletes test report(s). Available when the test is running or
stopped, but the report generation (save) is only possible when the test is stopped.
has a red border. Tapping this button will turn off the laser (for all Lanes for parallel interface). Only
available with optical ports.
activate the laser immediately by emitting an optical laser signal (on all Lanes for parallel
interface). Only available with optical ports.
Clears results, statistics, and logger content. Available when the test is running.
Injects alarms/errors based on settings from the Inject button from the Results - Alarms/Errors tab.
Discovers and connects to a remote module that loops back the traffic via Smart Loopback or
Dual Test Set (DTS).

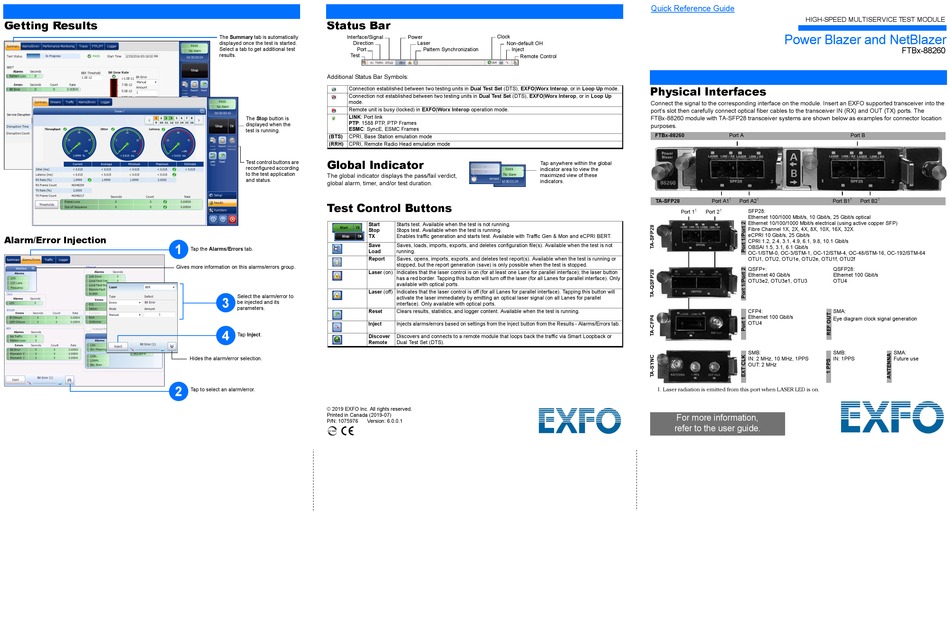

Quick Reference Guide

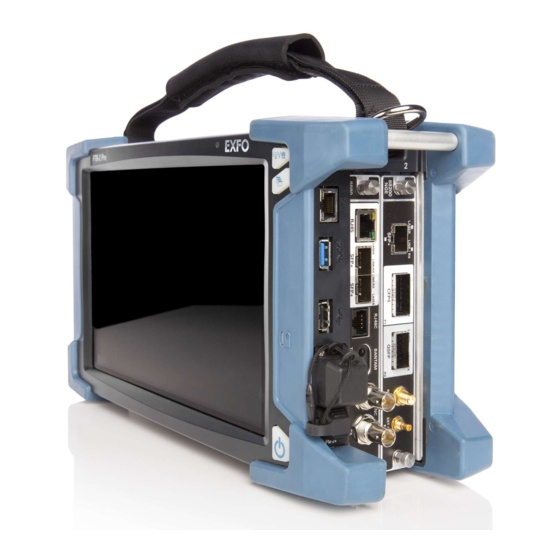

HIGH-SPEED MULTISERVICE TEST MODULE
Power Blazer and NetBlazer
Physical Interfaces
Connect the signal to the corresponding interface on the module. Insert an EXFO supported transceiver into the
port's slot then carefully connect optical fiber cables to the transceiver IN (RX) and OUT (TX) ports. The
FTBx-88260 module with TA-SFP28 transceiver systems are shown below as examples for connector location
purposes.
FTBx-88260 Port A
1 1
TA-SFP28 Port A1 Port A2
1 1
Port 1 Port 2 SFP28:
Ethernet 100/1000 Mbit/s, 10 Gbit/s, 25 Gbit/s optical
Ethernet 10/100/1000 Mbit/s electrical (using active copper SFP)
Fibre Channel 1X, 2X, 4X, 8X, 10X, 16X, 32X
eCPRI 10 Gbit/s, 25 Gbit/s
CPRI 1.2, 2.4, 3.1, 4.9, 6.1, 9.8, 10.1 Gbit/s
OBSAI 1.5, 3.1, 6.1 Gbit/s
OC-1/STM-0, OC-3/STM-1, OC-12/STM-4, OC-48/STM-16, OC-192/STM-64
OTU1, OTU2, OTU1e, OTU2e, OTU1f, OTU2f
QSFP+:
Ethernet 40 Gbit/s
OTU3e2, OTU3e1, OTU3
CFP4:
Ethernet 100 Gbit/s
OTU4
SMB:
IN: 2 MHz, 10 MHz, 1PPS
OUT: 2 MHz
1. Laser radiation is emitted from this port when LASER LED is on.
For more information,
refer to the user guide.
FTBx-88260
Port B
1 1
Port B1 Port B2
QSFP28:
Ethernet 100 Gbit/s
OTU4
SMA:
Eye diagram clock signal generation
SMB: SMA:
IN: 1PPS Future use
