High-speed multiservice test module

Advertisement

Getting Results

Alarm/Error Injection
1
Gives more information on this alarms/errors group.
2
The Summary tab is automatically
Interface/Signal
displayed once the test is started.
Direction
Select a tab to get additional test
Port
results.
Test
Additional Status Bar Symbols:
Connection established between two testing units in Dual Test Set (DTS), EXFO|Worx Interop, or in Loop Up mode.
Connection not established between two testing units in Dual Test Set (DTS), EXFO|Worx Interop, or in Loop Up
mode.
Remote unit is busy (locked) in EXFO|Worx Interop operation mode.
LINK: Port link
PTP: 1588 PTP, PTP Frames
The Stop button is
ESMC: SyncE, ESMC Frames
displayed when the
Loopback Tool (Only available with 8870/8880)
test is running.
(BTS)
CPRI, Base Station emulation mode
(RRH) CPRI, Remote Radio Head emulation mode
Global Indicator
Test control buttons are
reconfigured according
to the test application
The global indicator displays the pass/fail verdict,
and status.
global alarm, timer, and/or test duration.

Test Control Buttons

Start
Stop
TX
Tap the Alarms/Errors tab.
Save
Load
Report
Laser (on) Indicates that the laser control is on (for at least one lane for parallel interface); the laser button
Select the alarm/error to
3
Laser (off) Indicates that the laser control is off (for all lanes for parallel interface). Tapping this button will
be injected and its
parameters.
Reset
4
Inject
Tap Inject.
Discover
Remote
Lpbk Tool Loops back the Ethernet frames/packets that are received on the port unused by the main test
Hides the alarm/error selection.
More/
Less
Tap to select an alarm/error.
© 2020 EXFO Inc. All rights reserved.
Printed in Canada (2020-02)
P/N: 1079326
Version: 9.0.0.1

Clock
Power
Laser
Non-default OH
Pattern Synchronization
Inject
Remote Control
Tap anywhere within the global
indicator area to view the
maximized view of these
indicators.
Starts test. Available when the test is not running.
Stops test. Available when the test is running.
Enables traffic generation and starts test. Available with Traffic Gen & Mon and eCPRI BERT.
Saves, loads, imports, exports, and deletes configuration file(s). Available when the test is not
running.
Saves, opens, imports, exports, and deletes test report(s). Available when the test is running or
stopped, but the report generation (save) is only possible when the test is stopped.
has a red border. Tapping this button will turn off the laser (for all lanes for parallel interface). Only
available with optical ports.
activate the laser immediately by emitting an optical laser signal (on all lanes for parallel
interface). Only available with optical ports.
Clears results, statistics, and logger content. Available when the test is running.
Injects alarms/errors based on settings from the Inject button from the Results - Alarms/Errors tab.
Discovers and connects to a remote module that loops back the traffic via Smart Loopback or
Dual Test Set (DTS).
application. Only available with 8870/8880.
The More/Less button appears when there is not enough room to display all available test control
buttons.

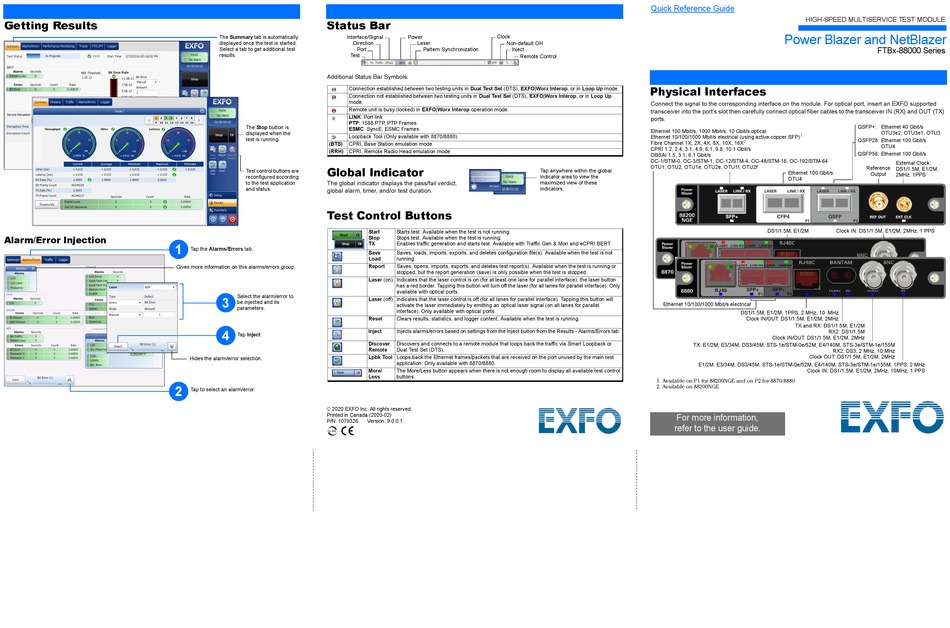

Quick Reference Guide
HIGH-SPEED MULTISERVICE TEST MODULE
Power Blazer and NetBlazer

Physical Interfaces

Connect the signal to the corresponding interface on the module. For optical port, insert an EXFO supported
transceiver into the port's slot then carefully connect optical fiber cables to the transceiver IN (RX) and OUT (TX)
ports.
Ethernet 100 Mbit/s, 1000 Mbit/s, 10 Gbit/s optical
1
Ethernet 10/100/1000 Mbit/s electrical (using active copper SFP)
2
Fibre Channel 1X, 2X, 4X, 8X, 10X, 16X
CPRI 1.2, 2.4, 3.1, 4.9, 6.1, 9.8, 10.1 Gbit/s
OBSAI 1.5, 3.1, 6.1 Gbit/s
OC-1/STM-0, OC-3/STM-1, OC-12/STM-4, OC-48/STM-16, OC-192/STM-64
OTU1, OTU2, OTU1e, OTU2e, OTU1f, OTU2f
Ethernet 100 Gbit/s
OTU4
DS1/1.5M, E1/2M
Ethernet 10/100/1000 Mbit/s electrical
DS1/1.5M, E1/2M, 1PPS, 2 MHz, 10 MHz
Clock IN/OUT: DS1/1.5M, E1/2M, 2MHz
TX and RX: DS1/1.5M, E1/2M
RX2: DS1/1.5M
Clock IN/OUT: DS1/1.5M, E1/2M, 2MHz
TX: E1/2M, E3/34M, DS3/45M, STS-1e/STM-0e/52M, E4/140M, STS-3e/STM-1e/155M
Clock OUT: DS1/1.5M, E1/2M, 2MHz
E1/2M, E3/34M, DS3/45M, STS-1e/STM-0e/52M, E4/140M, STS-3e/STM-1e/155M, 1PPS, 2 MHz
Clock IN: DS1/1.5M, E1/2M, 2MHz, 10MHz, 1 PPS
1. Available on P1 for 88200NGE and on P2 for 8870/8880
2. Available on 88200NGE
For more information,
refer to the user guide.
FTBx-88000 Series
QSFP+:
Ethernet 40 Gbit/s
OTU3e2, OTU3e1, OTU3
QSFP28:
Ethernet 100 Gbit/s
OTU4
QSFP56:
Ethernet 100 Gbit/s
External Clock:
Reference
DS1/1.5M, E1/2M,
Output
2MHz, 1PPS
Clock IN: DS1/1.5M, E1/2M, 2MHz, 1 PPS
RX2: DS3, 2 MHz, 10 MHz
